3-36
Confidential
8.6 Registration Mark L PCB ASSY/
Registration Mark R PCB ASSY

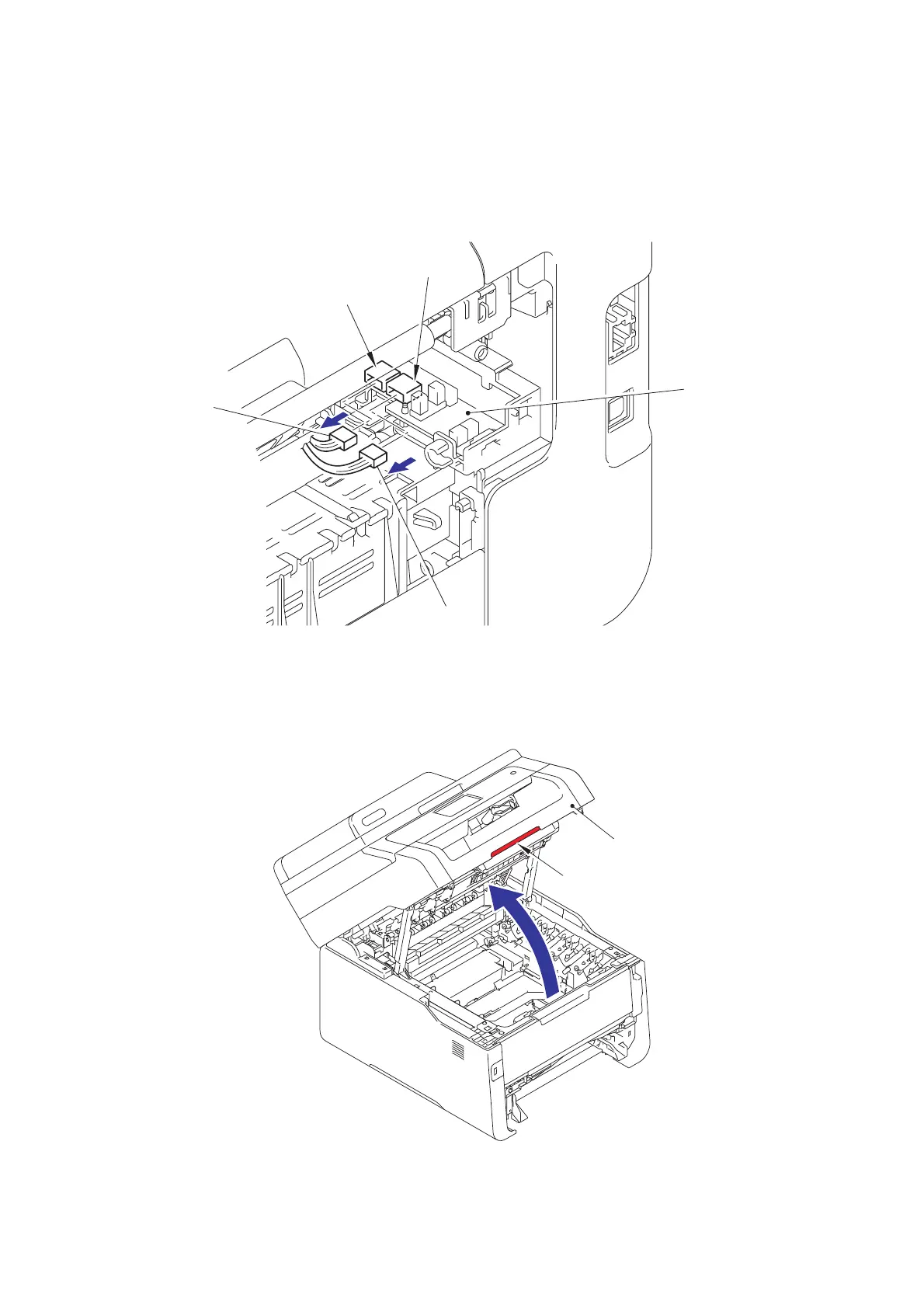

(1) Disconnect the two Connectors (CN2 and CN3) from the Eject sensor PCB ASSY.
Fig. 3-14
(2) While pushing up the Lever, open the Joint cover ASSY.
Fig. 3-15
Eject sensor
CN3
CN2
Connector
Connector
<Back side>
PCB ASSY
Joint cover ASSY
<Front side>
Lever
