2-5
Confidential
2. OVERVIEW

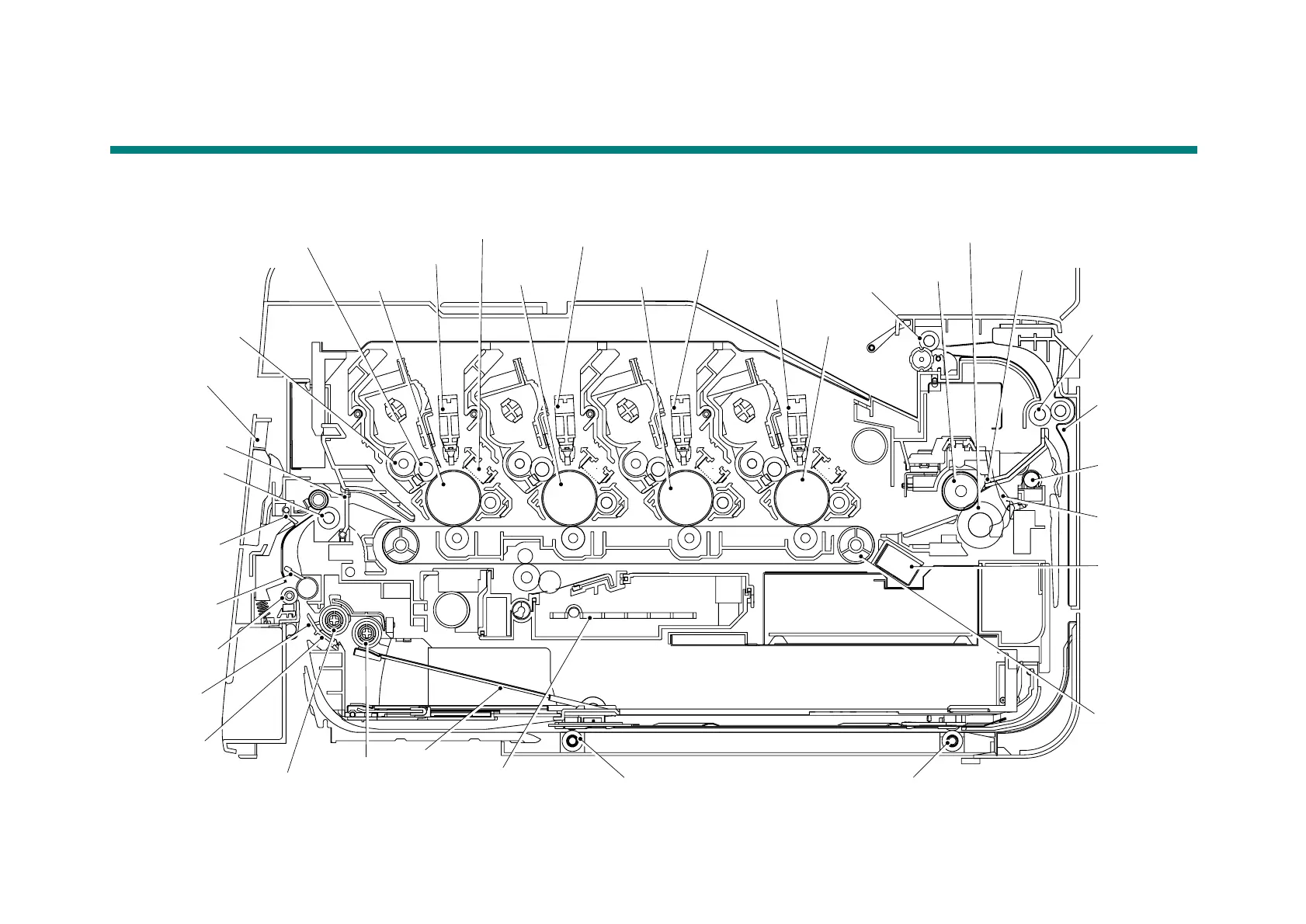

2.1 Cross-section Drawing
2.1.1 Printer part
Fig. 2-1
LED ASSY (M)
LED ASSY (Y)
LED ASSY (C)
LED ASSY (K)
Exposure
Exposure drum (C)
Exposure
Develop roller (Y)
Supply roller (Y)
Registration
Manual feed
Registration
Paper dust
Paper feed
Separation pad
Separation roller
Pick-up roller
Plate
Waste toner box
Duplex paper feed roller
Duplex paper feed roller
Belt unit
Density/
Eject roller 3
Heat roller
Pressure roller
Fuser unit
Eject roller 2
Back cover
Eject roller 1
Eject actuator
Corona wire
<Front side> <Back side>
Manual feed slot
rear actuator
roller
paper empty
actuator
front actuator
cleaning roller
actuator
registration
sensor
Exposure
drum (M)
cover ASSY
drum (K)
Registration
drum (Y)
