Brother MFC-9130CW Service Manual

3-100
Confidential
8.41 Panel Control PCB ASSY
(1) Remove the Key PCB flat cable from the Connector (CN5) of the Panel control PCB
ASSY.
(2) Remove the Key PCB flat cable from the Control panel ASSY.

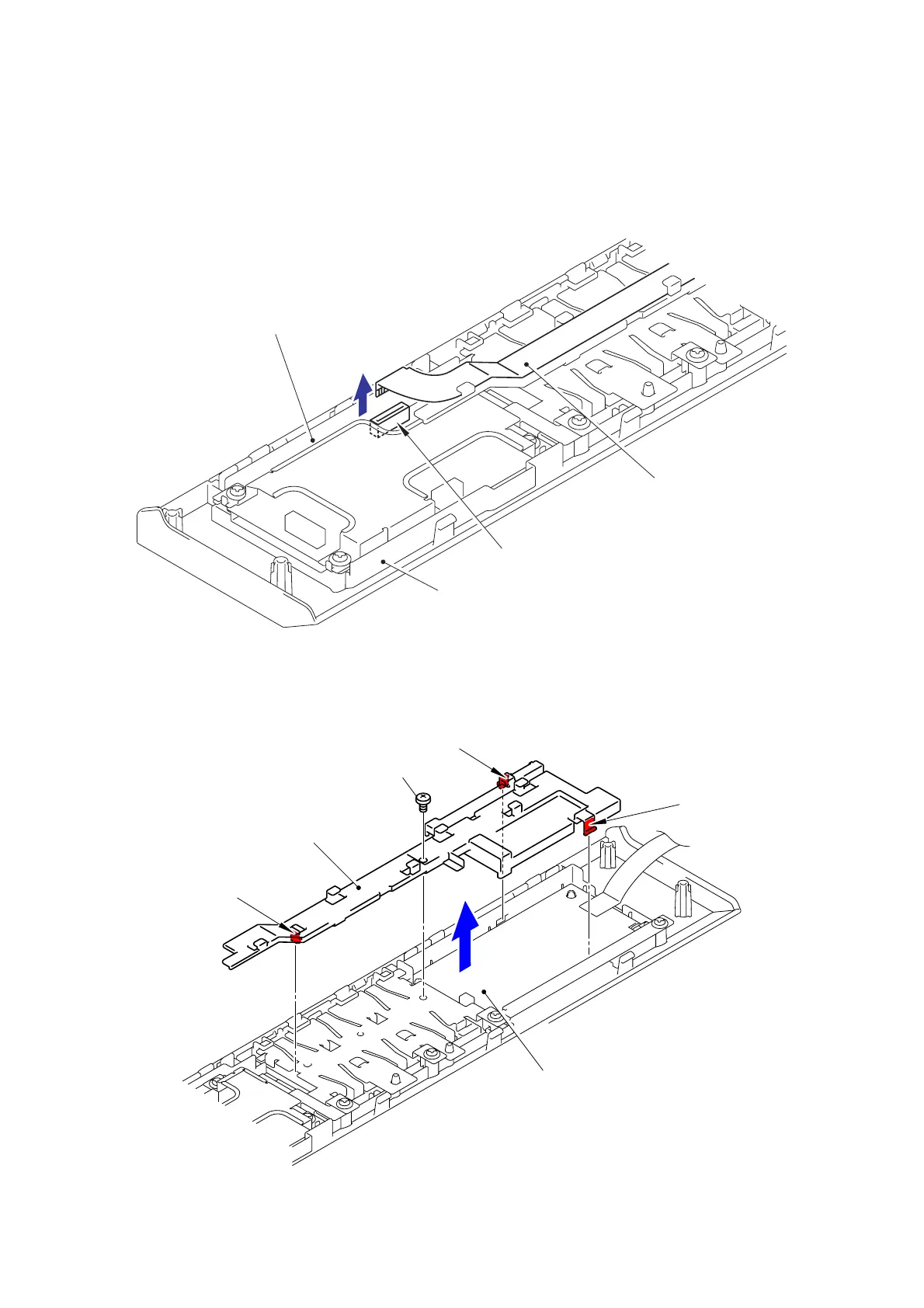

Fig. 3-133
(3) Remove the Taptite bind S M3x5 screw. Release the three Hooks to remove the Key PCB
hold from the Control panel ASSY.
Fig. 3-134
Panel control PCB ASSY
Control panel ASSY
CN5
Key PCB flat cable
Control panel ASSY
Key PCB hold
Taptite bind S M3x5
Hook
Hook
Hook
