3-92
Confidential
(8) Remove the Screw pan (S/P washer) M3.5x6 screw to remove the LED FG harness from
the Modem PCB ASSY.
Remove the two Taptite bind B M4x12 screws to remove the Modem PCB ASSY from the
Joint cover ASSY.
(9) Disconnect the wiring of the LED FG harness.

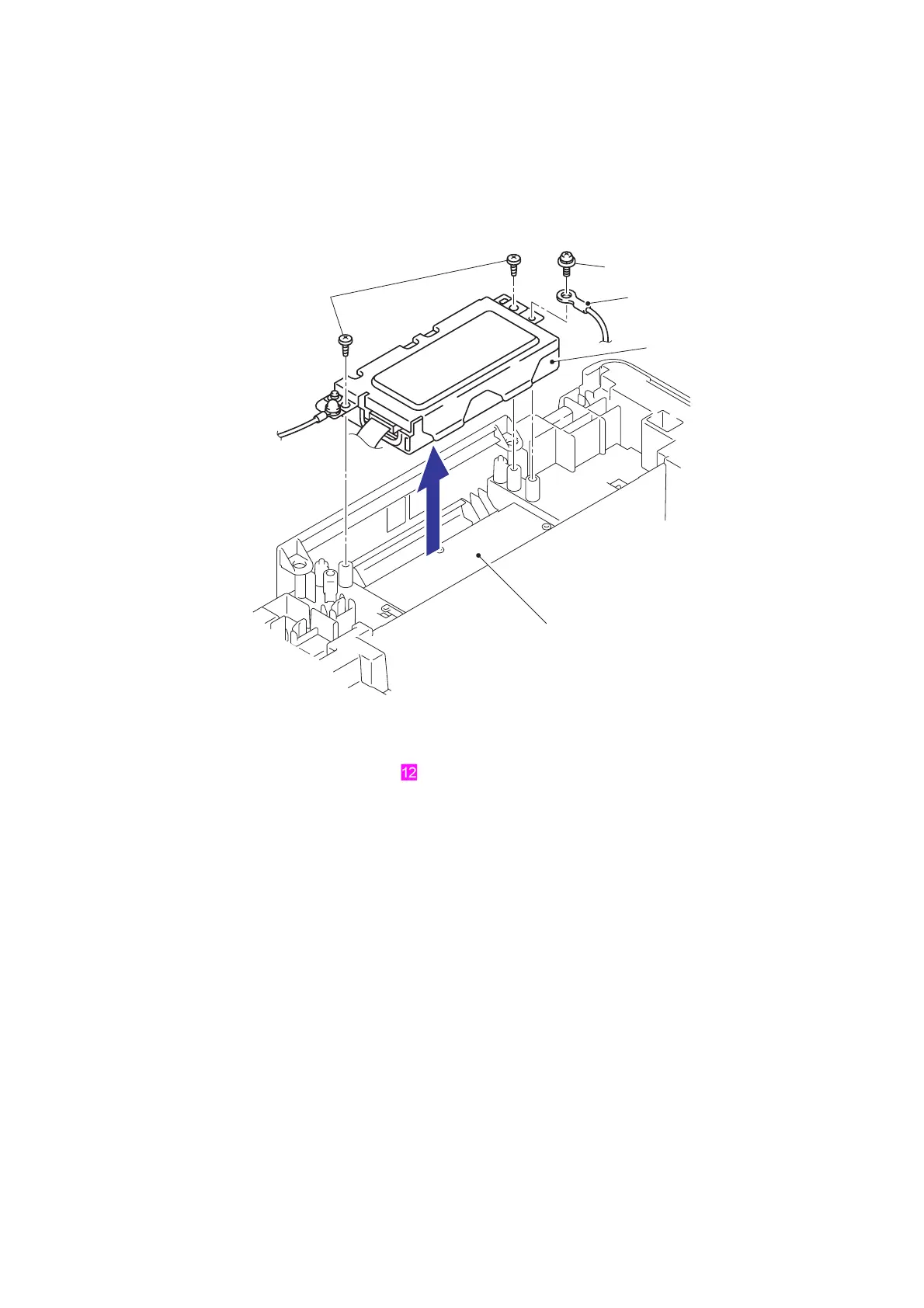

Fig. 3-119
Harness routing: Refer to " Modem PCB ASSY"
Joint cover ASSY
Taptite bind B M4x12
Modem PCB ASSY
LED FG harness
Screw pan (S/P washer) M3.5x6
