Brother MFC-9420CN - Default Chapter; Carton Components

1
Carton components may differ from one country to another. Save all packing materials and the carton.
*
1
The toner cartridges that come supplied with this machine are starter toners. Starter toners are toner cartridges that give
approximately half the page yield of the standard toner cartridge: 5000 pages (Black) and 3000 pages (Cyan, Magenta and
Yellow) at approximately 5% print coverage (A4 or Letter size).
*
2
Repacking kit is to be used ONLY for moving or shipping the machine.

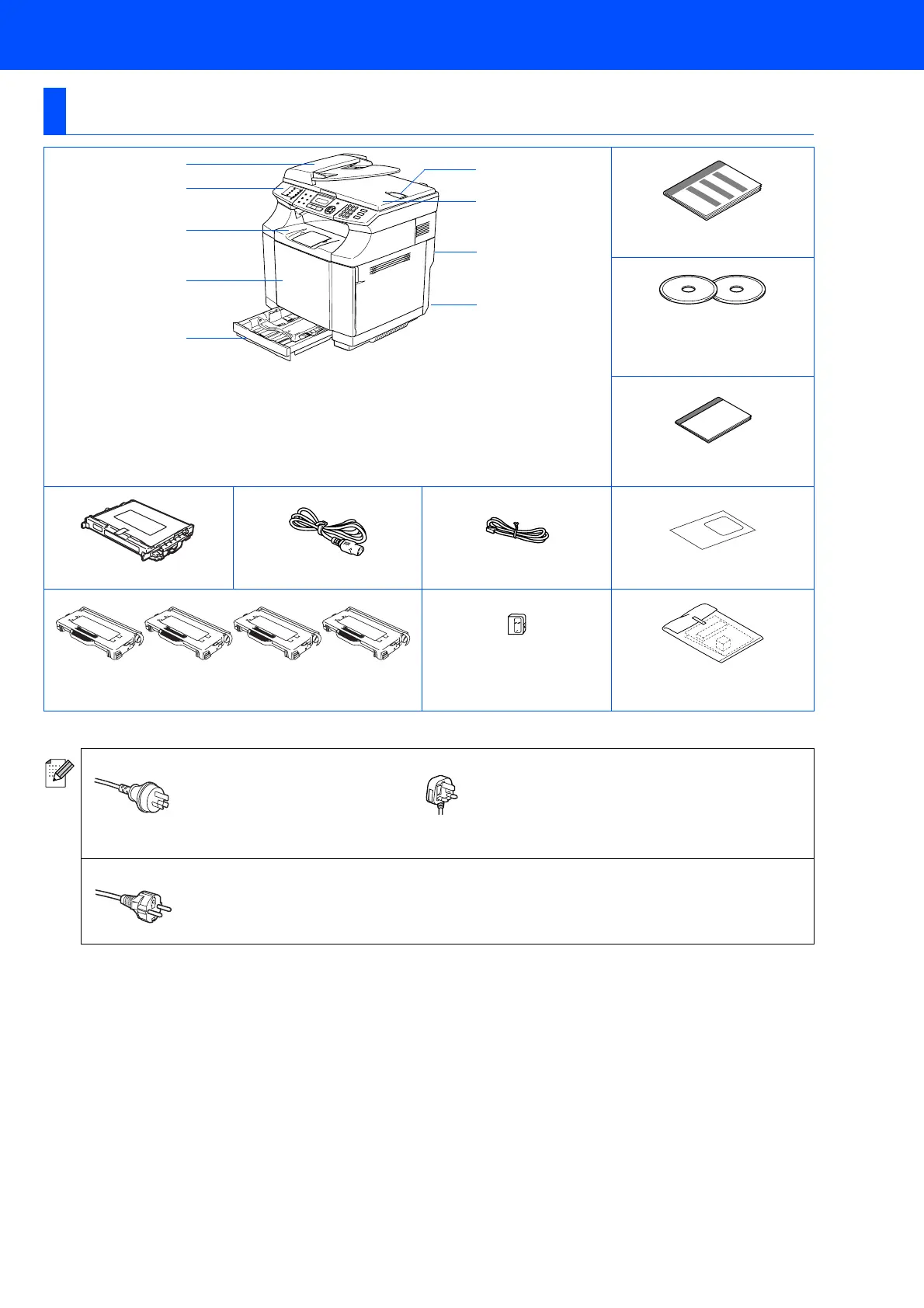

Carton Components
Quick Setup Guide
CD-ROMs
For Windows
®
For Macintosh
®
User’s Guide
OPC Belt Cartridge
AC Power Cord
Telephone Line Cord Maintenance Label
Toner Cartridges
(Black, Cyan, Magenta and Yellow)*
1
Telephone Line Cord
Adapter
(For Australia only)
Repacking Kit*
2
Austraria & New Zealand users: Hong Kong, Malaysia & Singapore users:
The mains plug supplied with this machine is a grounded three pin plug. Make sure that the AC socket will
accept this grounded three pin plug. This machine must be grounded, If in doubt, call a qualified electrician.
Philipine & Thailand users:
The mains plug supplied with this machine is a side grounded two pin plug. Make sure that
the AC socket will accept this side grounded two pin plug. This machine must be grounded,
If in doubt, call a qualified electrician.
■ To ensure safe operation the supplied plug must be inserted only into a standard power outlet that is
properly grounded through the standard electrical wiring. None grounded equipment may cause an
electrical shock hazard, and may cause excessive electrical noise radiation.
■ The interface cable is not a standard accessory. Please purchase the appropriate interface cable for
the interface you intend to use (Parallel, USB or Network).
■ Do NOT connect the interface cable at this time. Connecting the interface cable is done during the
software installation process.
■ USB interface cable
Please make sure you use a USB 2.0 interface cable that is no longer than 2 metres.
■ Parallel interface cable
Please make sure you use a Parallel interface cable that is no longer than 2 metres.
Use a shielded interface cable that is IEEE 1284-compliant.
1
. Automatic Document Feeder (ADF)
2
. Control Panel
3
. Face-down Output Tray
Support Flap with Extension
(Support Flap)
4
. Front Cover
5
. Paper Tray
6
. Power Switch
7
. Back Cover
8
. Document Cover
9
. ADF Document Output Support Flap
1
6
9
2
3
4
5
8
7
■ Getting Started
