Brother MFC-9420CN Quick Setup Guide

6
Do NOT touch the green surface of
the OPC belt.
Do NOT expose the OPC belt
cartridge to bright room light or
sunlight for more than two minutes
to avoid damaging the belt. Leave
the cartridge in its packaging until
immediately before installing.

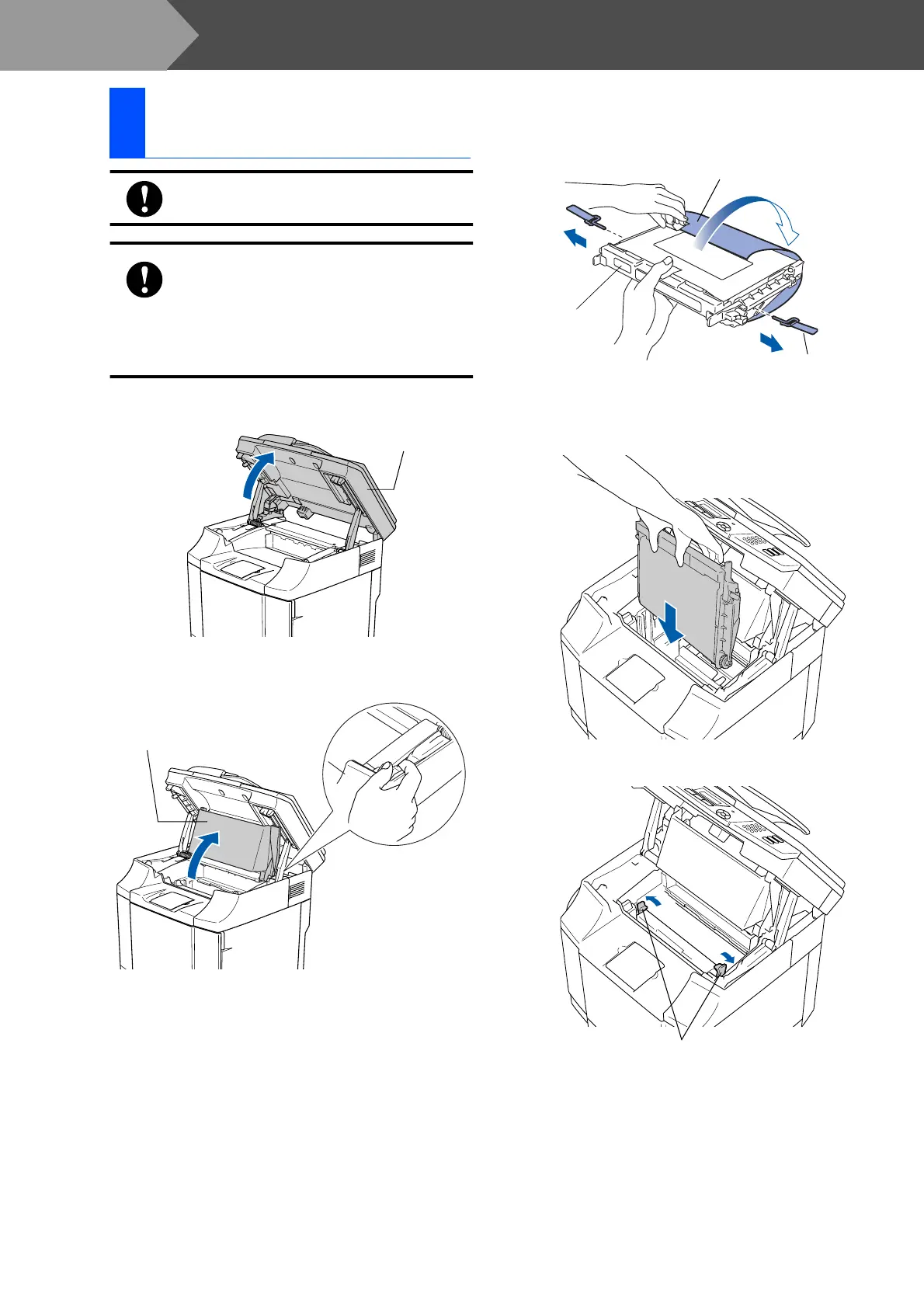

1
Lift the Scanner Unit.
2
Lift the Inside cover so that it latches under
the scanner unit.
3
Remove the orange belt tension release
pins from both sides of the OPC belt
cartridge. Remove the protective sheet.
4
Put the OPC belt cartridge into the machine
guides with the flat side facing you.
5
Lock the belt cartridge lock levers.
6
Close the Inside cover and then close the
Scanner Unit.
3
Install the OPC Belt
Cartridge
Scanner unit
Inside cover
Protective sheet
Belt tension
release pin
OPC belt
cartridge
Belt cartridge lock levers
Step 1
Setting Up the machine

Brother MFC-9420CN Specifications

General

Print technology	Laser
Maximum resolution	1200 x 2400 DPI
Economical printing	Yes
Print speed (black, normal quality, A4/US Letter)	31 ppm
Print speed (color, normal quality, A4/US Letter)	8 ppm
Digital sender	No
Number of print cartridges	4
Scanner type	Flatbed scanner
Scanner features	Scan to: e-mail, image, OCR, file
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	31 cpm
Copy speed (color, normal quality, A4)	8 cpm
Faxing	Color faxing
Fax memory	500 pages
Modem speed	33.6 Kbit/s
Fax speed dialing (max numbers)	200
Total input capacity	750 sheets
Maximum input capacity	250 sheets
Auto document feeder (ADF) input capacity	35 sheets
Maximum internal memory	576 MB
Bundled software	ScanSoft PaperPort Presto! PageManager
I/O ports	IEEE-1284 USB 2.0
Dimensions (WxDxH)	483.5 x 514 x 530 mm
Printer management	BRAdmin Professional, MIB-II
Networking features	10Base-T/100Base-TX
All-in-one functions	Fax, Scan
Color all-in-one functions	copy, fax, print, scan
Compatible operating systems	Windows 98(SE)/ Me/ NT WorkStation 4.0/ 2000 Professional/ XP Mac OS 9.1 - 9.2, Mac OS X 10.2.4+
Sustainability certificates	ENERGY STAR
Power consumption (standby)	85 W
Power consumption (PowerSave)	16 W
Power consumption (average operating)	1090 W
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %
Market positioning	Business
