3-29

Confidential

 MP models

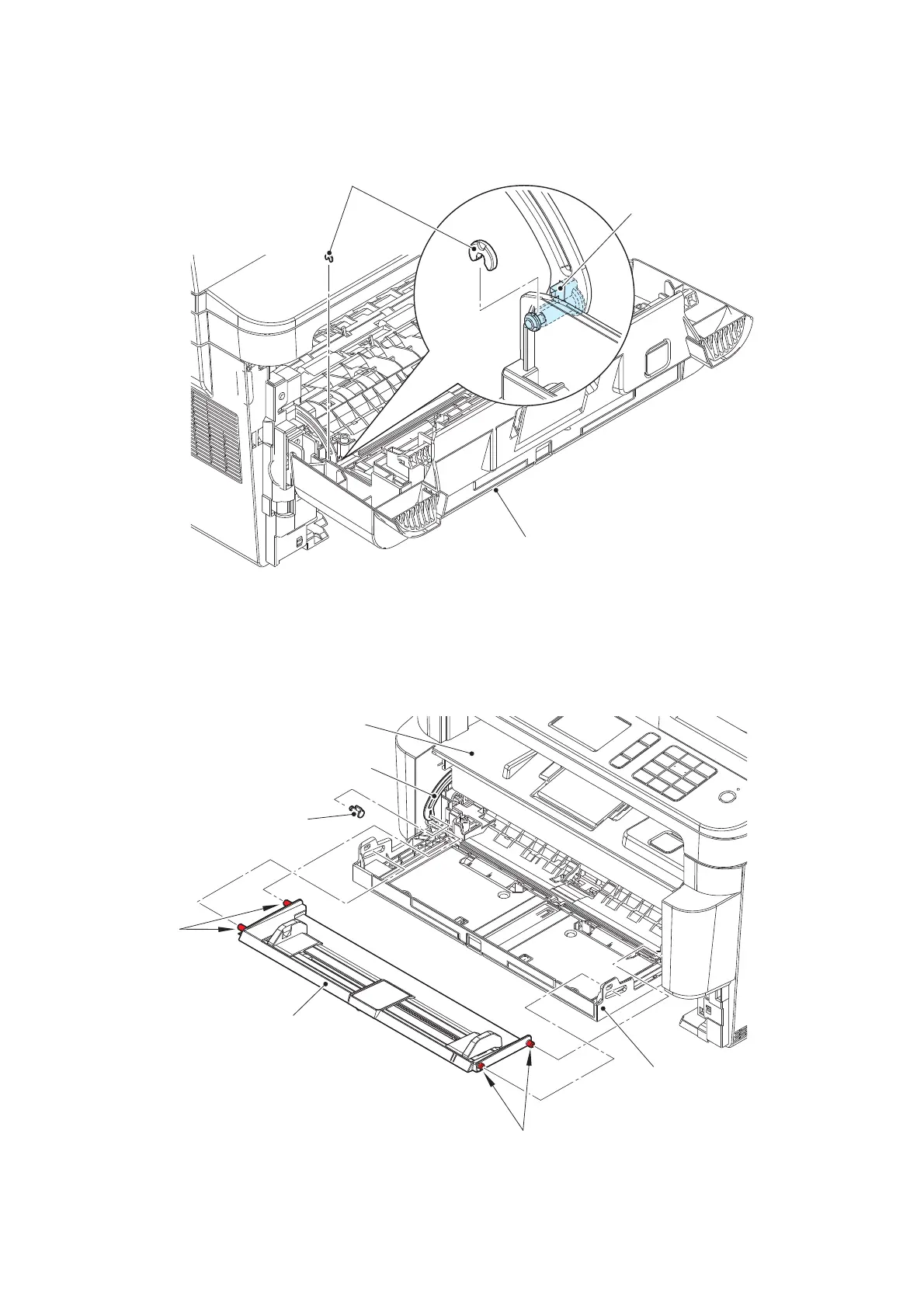

(4) Open the Front cover ASSY. Remove the Collar 5 from the Link MP pin.

Fig. 3-14

(5) Close the Front cover ASSY. Open the MP tray, and release each Boss and remove the MP

paper guide from the MP tray.

(6) Pull out the Link MP pin to remove the Develop joint link MP from the Front cover ASSY.

Fig. 3-15

Front cover ASSY

Collar 5

Link MP pin

MP tray

Front cover ASSY

Develop joint link MP

Link MP pin

Bosses

MP paper guide

Bosses
