3-30

Confidential

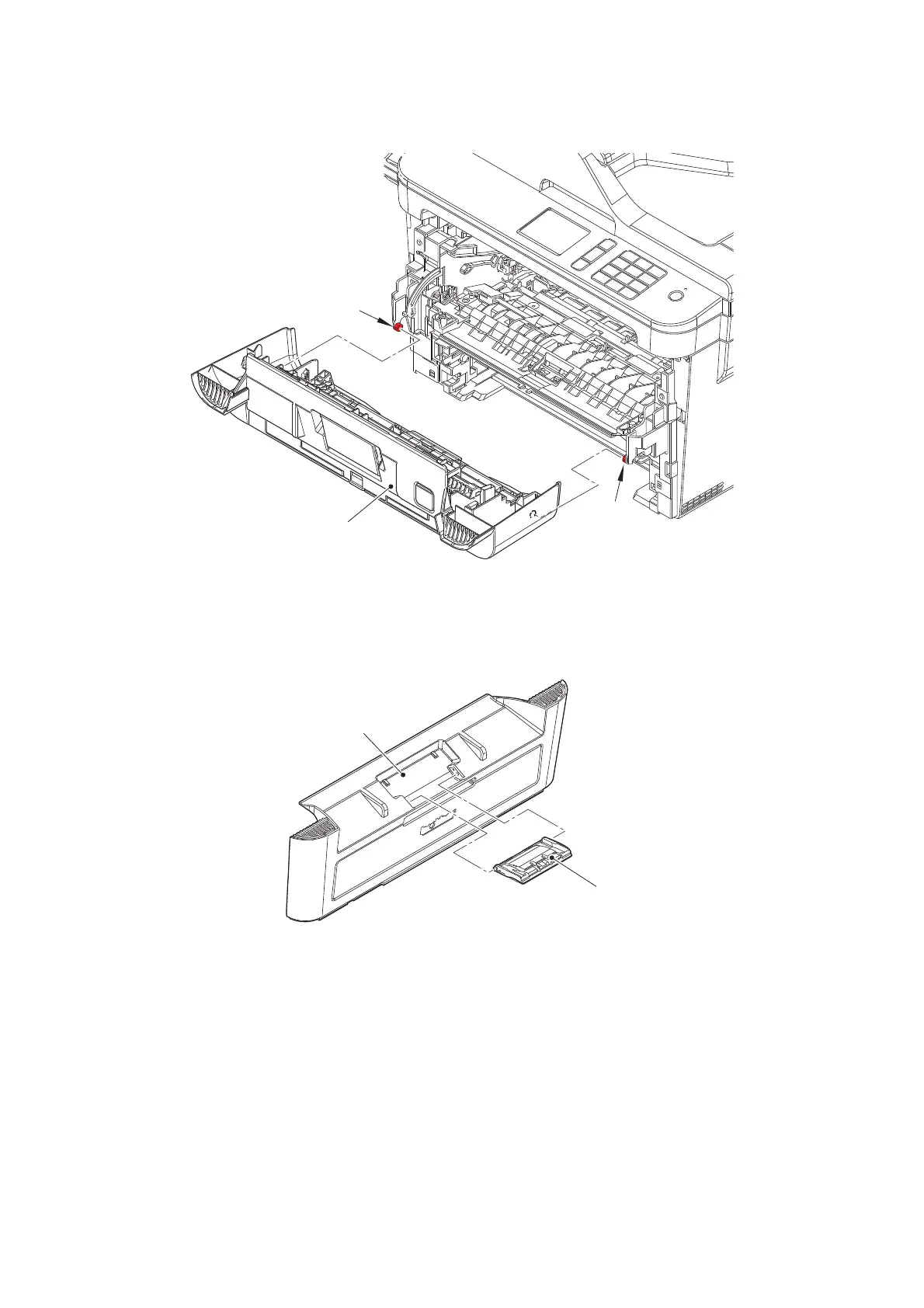

(7) Open the Front cover ASSY. Release each Boss and remove the Front cover ASSY.

Fig. 3-16

 Common to all models

(8) Remove the Support flap from the Front cover ASSY.

Fig. 3-17

Boss

Front cover ASSY

Boss

Front cover ASSY

Support flap
