Brother MFC-J6935DW

3-43
Confidential

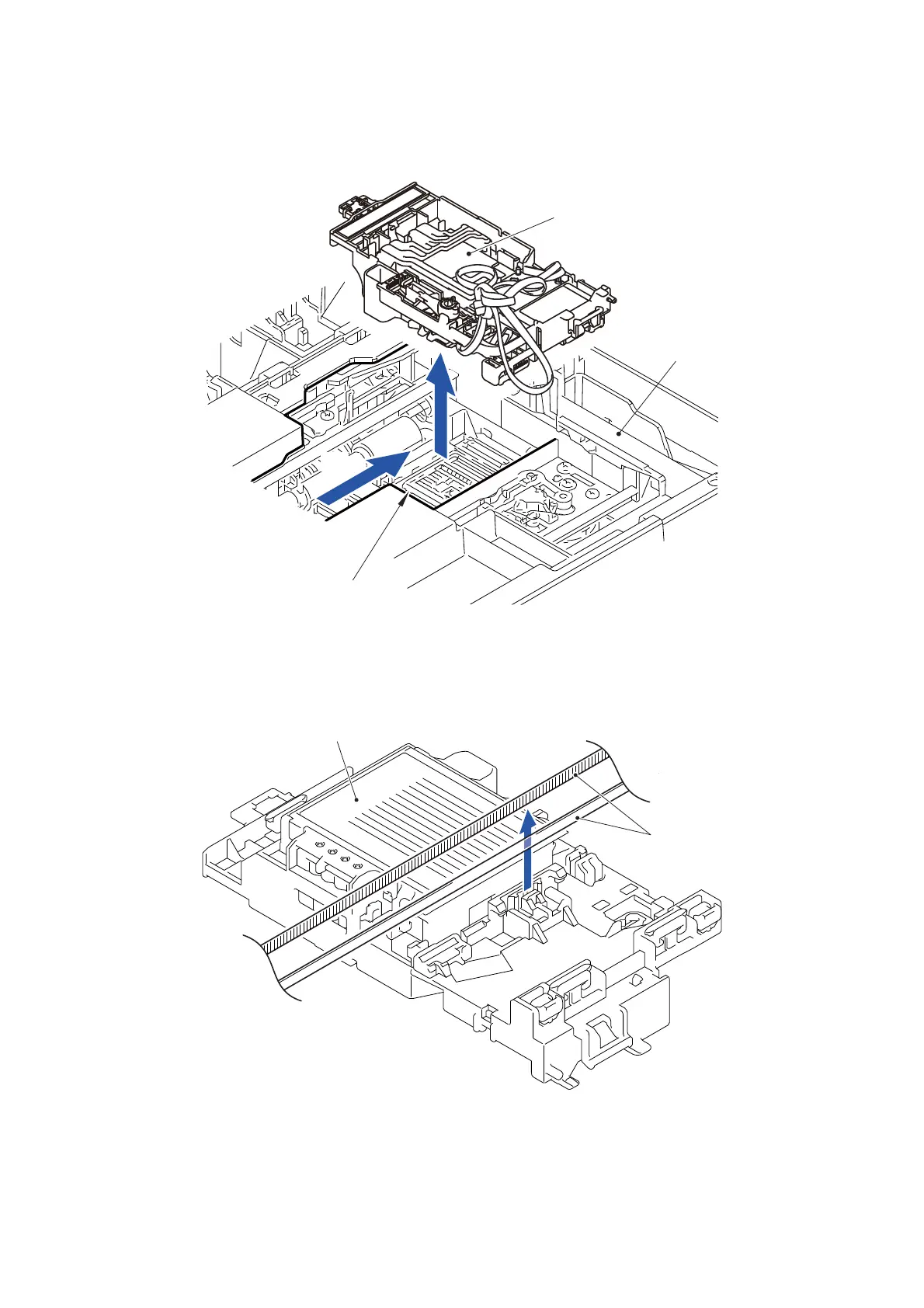

(23)Move the Head/carriage unit to the position shown in the figure and remove it from
the opening of the Upper cover.
Fig. 3-17
(24)Close the Document scanner unit.
(25)Remove the CR timing belt from the Head/carriage unit.
Fig. 3-18
Head/carriage unit
Upper cover
23a
23b
Opening
Head/carriage unit
CR timing belt
