9.39 Carriage PCB ASSY

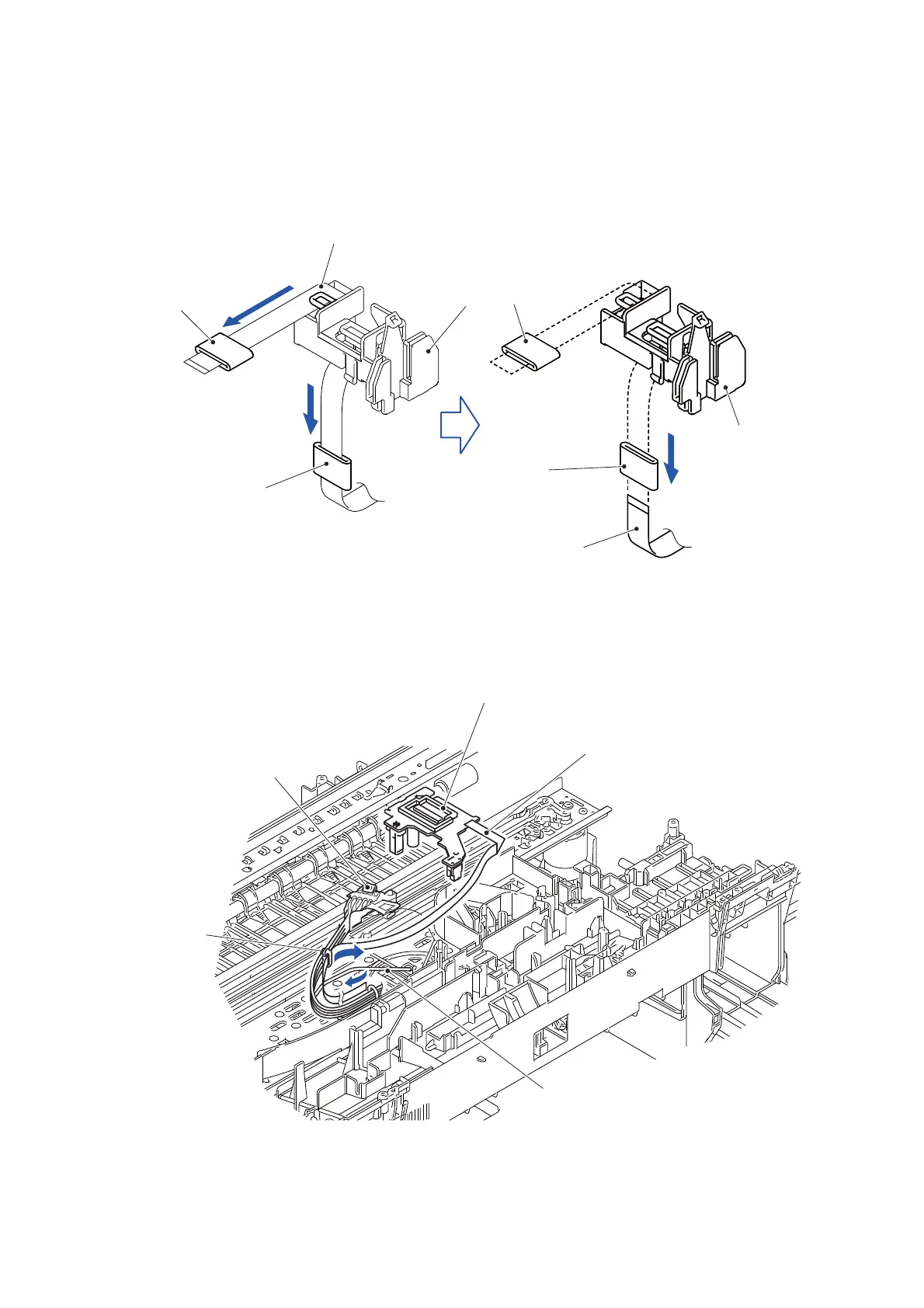

(1) Remove the two Flat cores from the Main PCB harness hold R, and pull out the
Flat cables of the Carriage PCB ASSY from the Flat cores.
Fig. 3-130
(2) Release the wiring of the Flat cable of the Carriage PCB ASSY and pull it out from
the Tube clamp.
Fig. 3-131
Flat cable of the
Carriage PCB ASSY
Flat core
Flat core
Main PCB
harness hold R
Flat core
Flat cable of the
Carriage PCB ASSY
Flat core
Main PCB
harness hold R
Carriage PCB ASSY
Tube clamp
Tube
Head joint
support wire
Flat cable of the
Carriage PCB ASSY
