Brother MFC-J6935DW - Overview; Cross-Section Drawings; Document Scanning

Confidential
2-3
2OVERVIEW
2.1 Cross-section Drawings
2.1.1 Document scanning

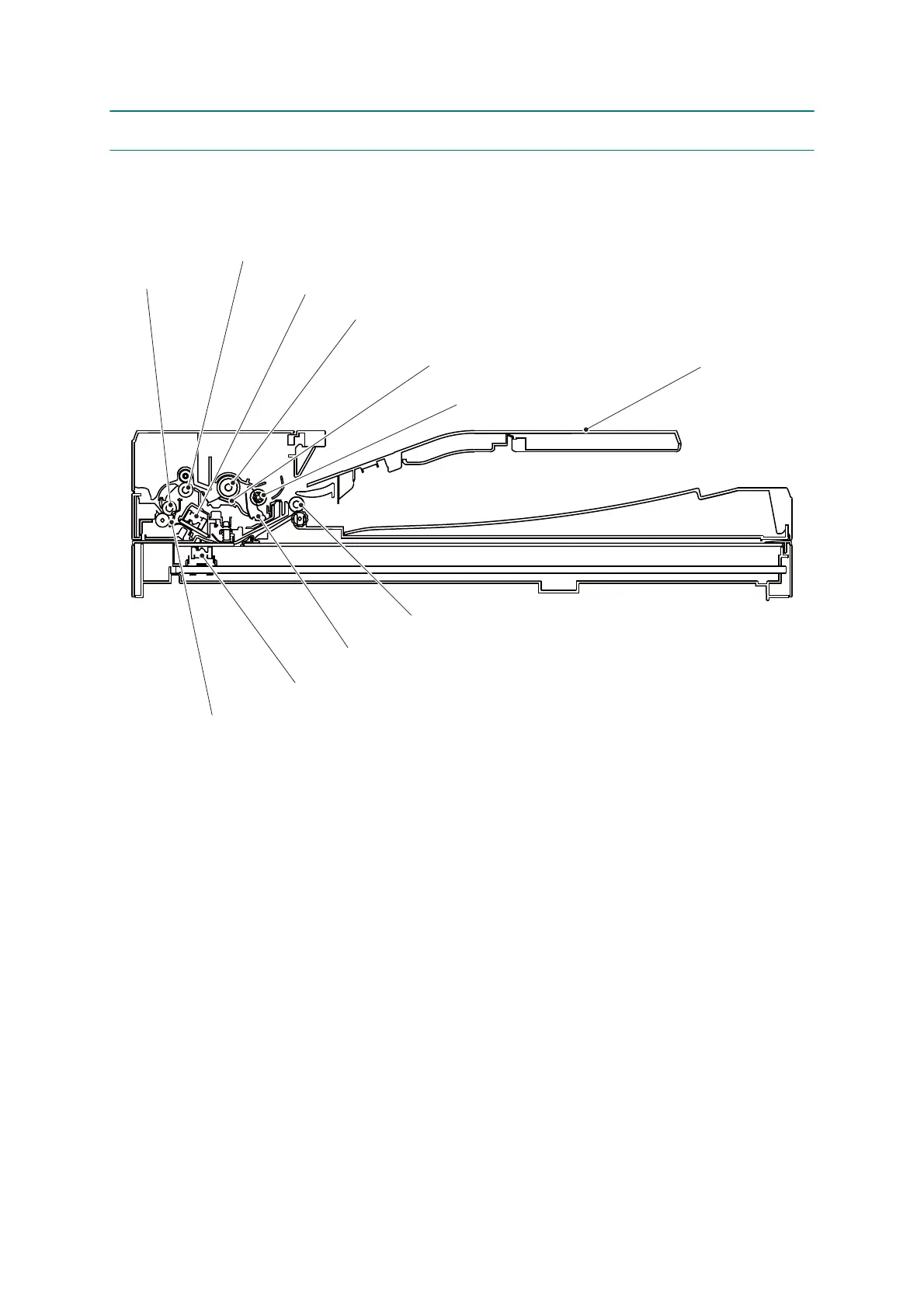

Fig. 2-1
* Duplex scanning models only
Document tray
Document pick-up roller
ADF separation pad
Document separation roller
Second side CIS unit *
Document feed roller 1
Document
Document scanning position actuator
First side CIS unit
Document ejection roller
ADF document width actuator
ADF document detection actuator
feed roller 2
