9.67 T3 Bank ASSY
(1) Turn the 3rd tray unit upside down.
Note: Make sure to remove the Tray lock cam in advance. Otherwise, it falls when the
3rd tray unit is turned over.

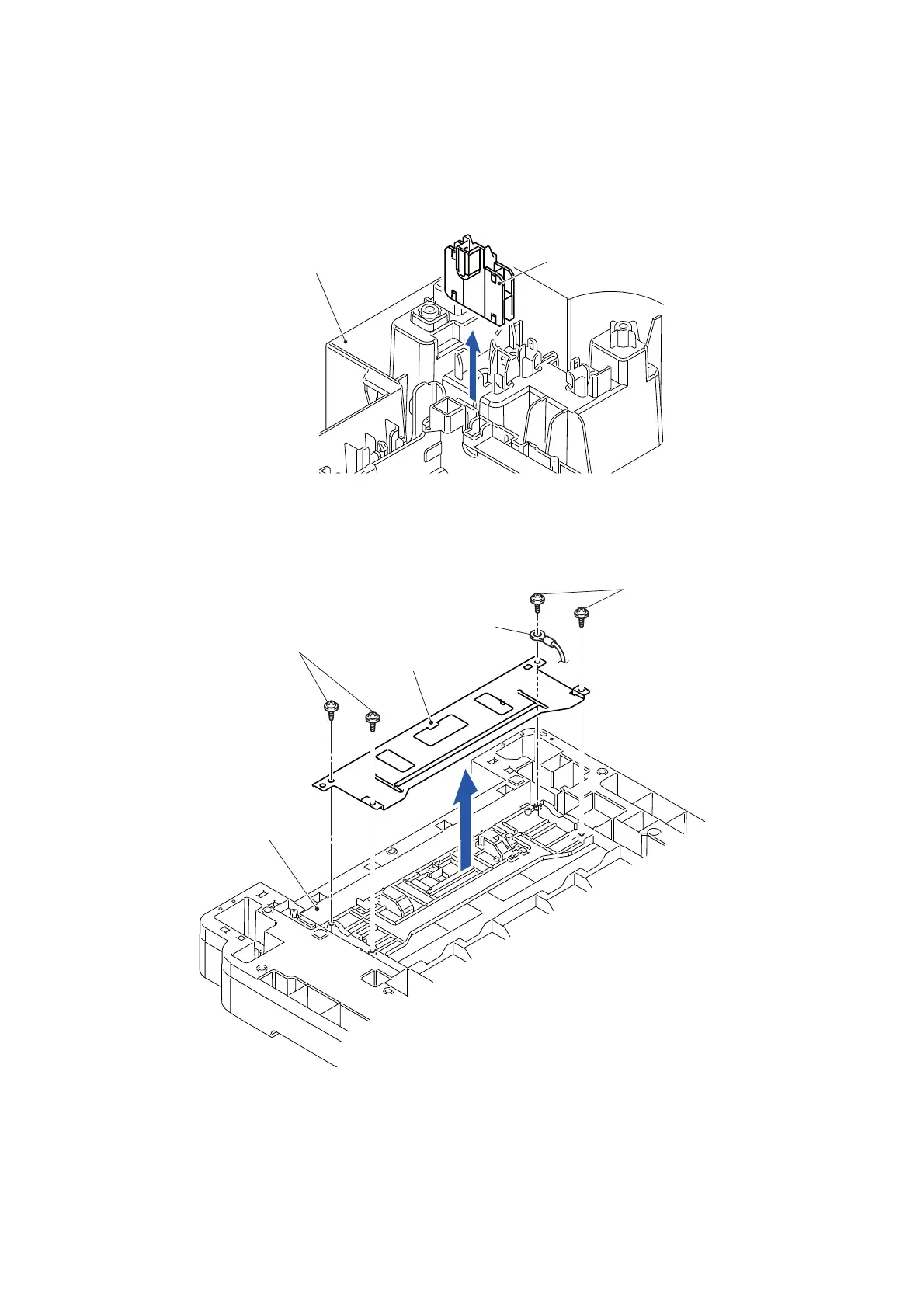

Fig. 3-210
(2) Remove the four screws (TAPTITE CUP B M3x10) and remove the 3rd lower cover
frame from the 3rd tray unit.
Fig. 3-211
3rd tray unit
Tray lock cam
3rd tray unit
3rd lower cover frame
TAPTITE CUP B M3x10
TAPTITE CUP B M3x10
Tray FG wire
