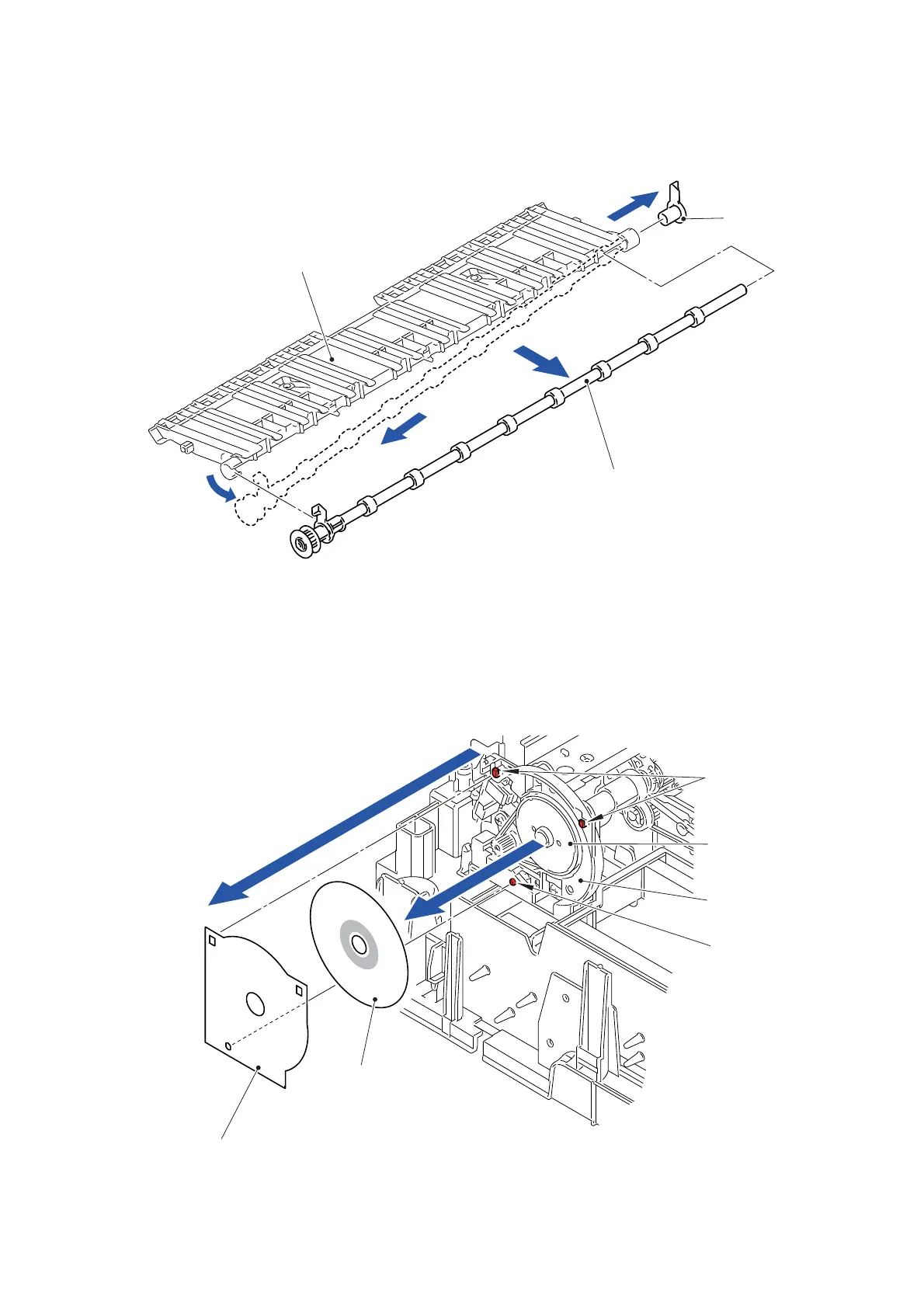

(6) Remove the SB bushing R from the Switchback outer paper guide.
(7) Remove the Switchback roller from the Switchback outer paper guide.
Fig. 3-168
9.53 PF Encoder Disk
(1) Remove the Encoder cover 2 from the Encoder cover.
(2) Peel off the PF encoder disk from the PF roller pulley.
Note: Once removed, the PF encoder disk should be replaced with a new one.
Fig. 3-169
Switchback outer paper guide
Switchback roller
SB bushing R
6
7
PF encoder disk
Encoder cover 2
Hooks
Encoder cover
Boss
PF roller pulley
2
1
