9.36 Modem PCB

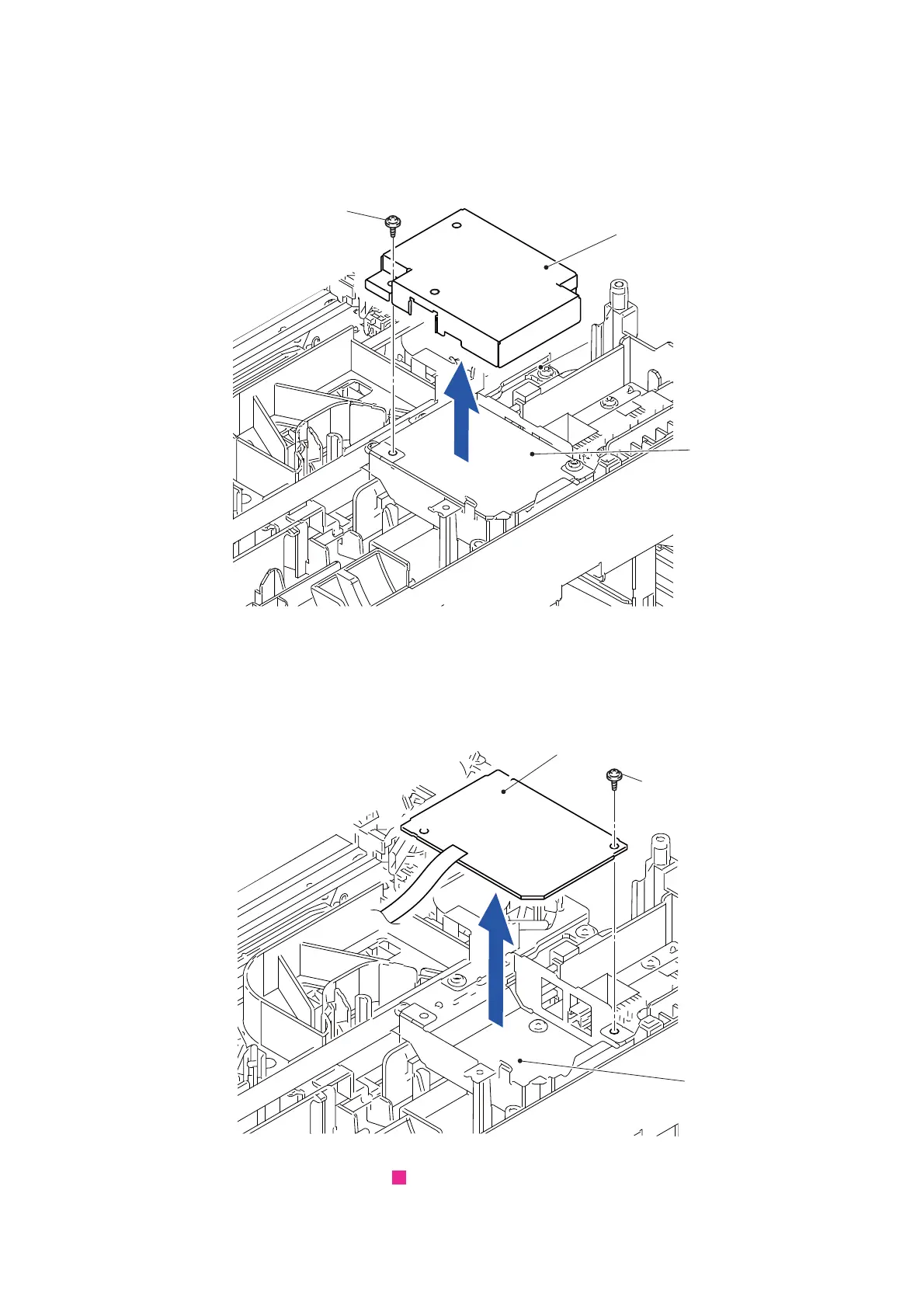

(1) Remove the screw (SCREW CUP M3x6) and remove the Upper modem frame
from the Modem PCB.
Fig. 3-113
(2) Release the wiring of the flat cable of the Modem PCB.
(3) Remove the screw (SCREW CUP M3x6) and remove the Modem PCB from the
Modem PCB frame.
Fig. 3-114
Routing of harnesses: See “ Main PCB/Modem PCB”.
SCREW CUP M3x6
Upper modem frame
Modem PCB
SCREW CUP M3x6
Modem PCB
Modem PCB frame
