9.13 ADF Rear Cover
(1) Open the ADF cover ASSY.
(2) Release the seven Hooks and remove the ADF rear cover from the ADF unit.

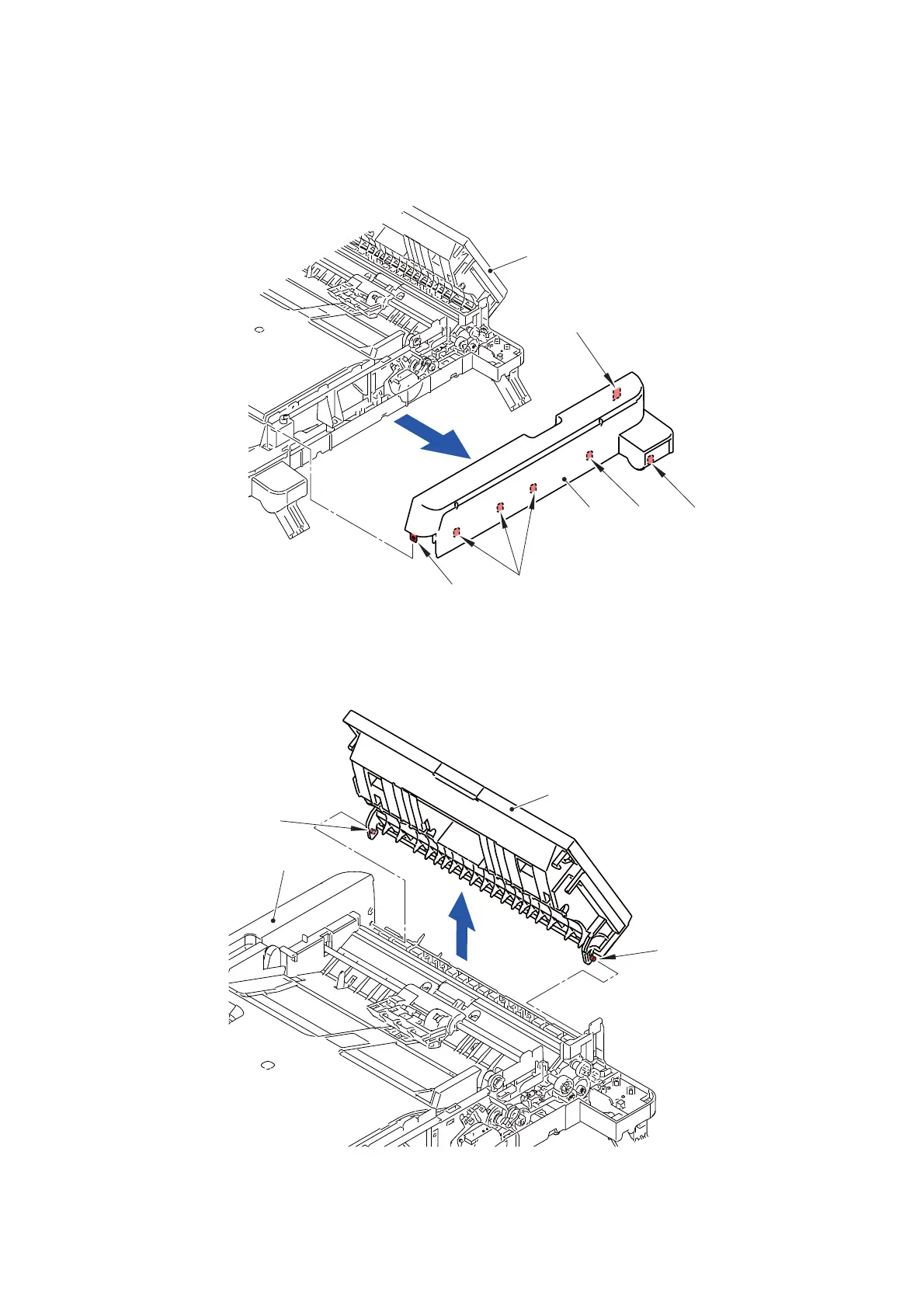

Fig. 3-50
9.14 ADF Cover
(1) Release the two Pins and remove the ADF cover from the ADF unit.
Fig. 3-51
Hooks
Hook
Hook
Hook
ADF cover ASSY
ADF rear cover
Hook
ADF cover
ADF unit
Pin
Pin
