2.1.2 Printer part

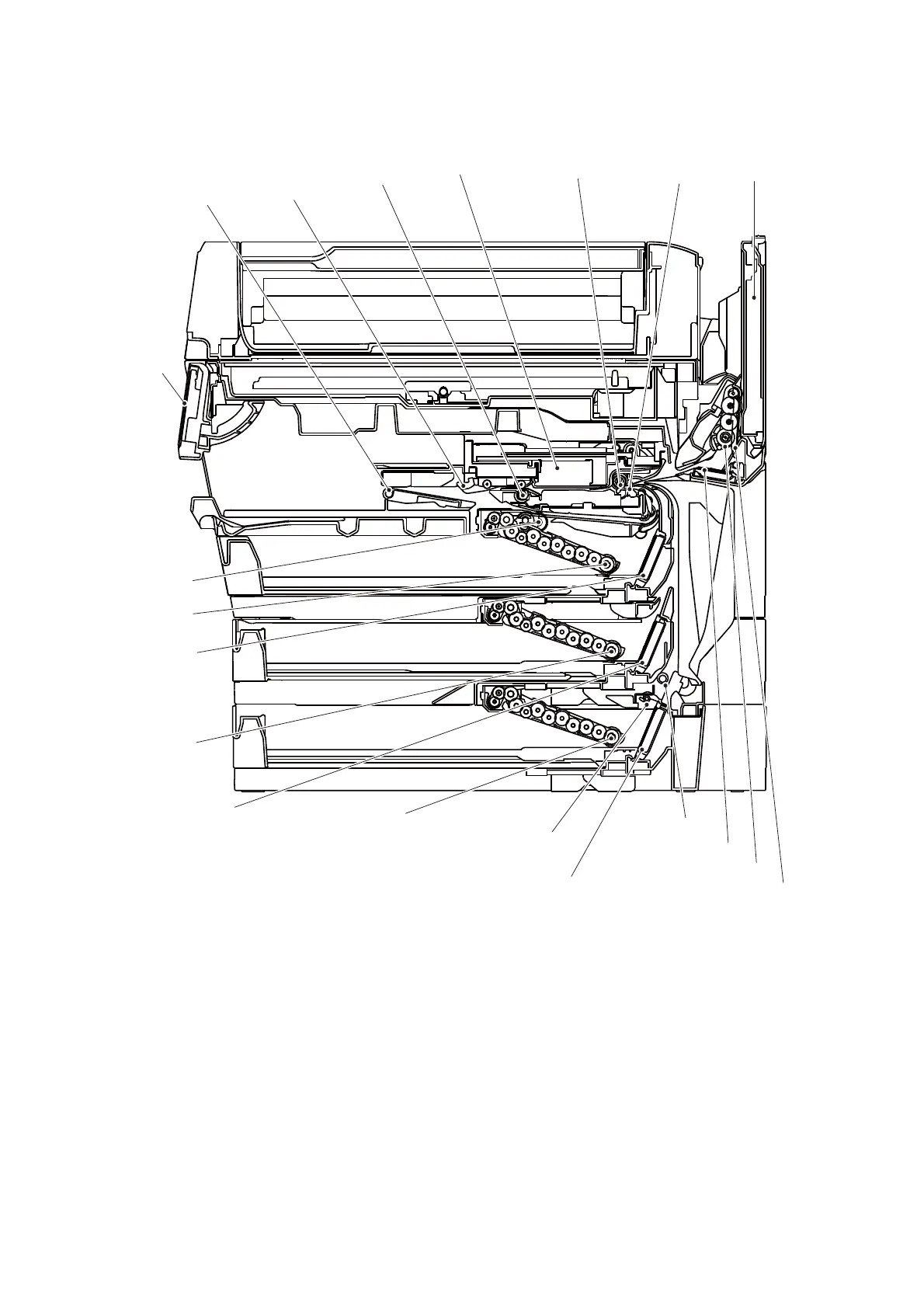

Fig. 2-2
MP tray ASSY
Registration
Paper feed roller
Head/carriage unit
Paper
Switchback
Switchback
Control
Duplex paper
T1 paper
T1 bank
T3 paper
T2 bank ASSY
MP bank ASSY
MP paper pull-in roller
MP paper detection actuator
feed roller
ASSY
pull-in roller
roller
actuator
actuator
ejection roller
panel
ASSY
pull-in roller
T3 bank ASSY
3rd tray paper
pull-in actuator
T2 paper
pull-in roller
Intermediate roller
