3-155
Confidential

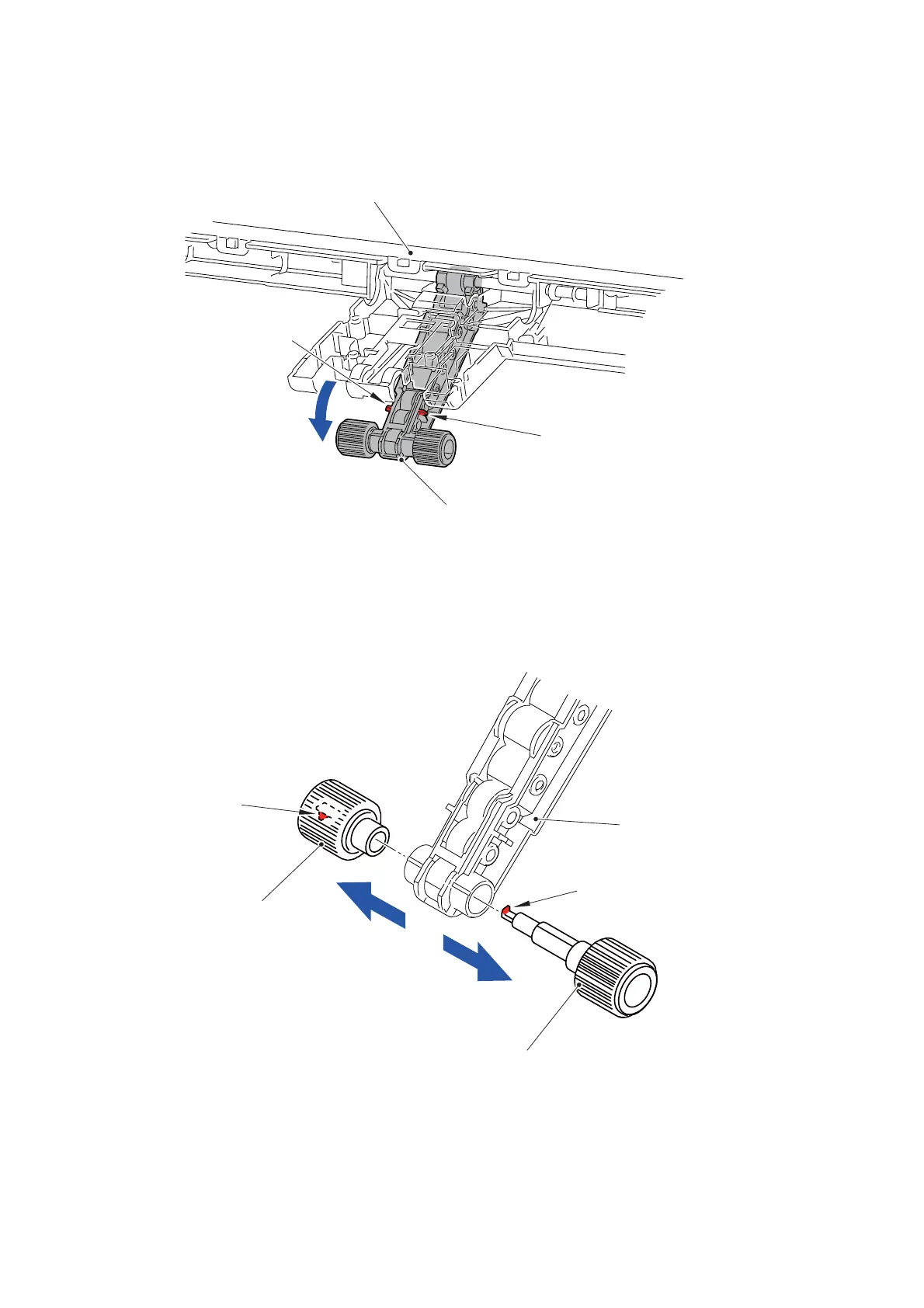

9.68 T3 Paper Pull-in Roller L/R
(1) Release the two Hooks and push down the Paper pull-in roller holder.
Fig. 3-213
(2) Open the Latch to the outer side and remove the T3 paper pull-in roller L/R from
the Paper pull-in roller holder.
Assembling Note: When assembling the T3 paper pull-in roller L/R, make sure to
engage the Hook with the Latch.
Fig. 3-214
Paper pull-in roller holder
Hook
Hook
3rd tray frame ASSY
Paper pull-in roller holder
T3 paper pull-in roller L
Latch
Hook
T3 paper pull-in roller R
To Next Page
