Confidential
2-9

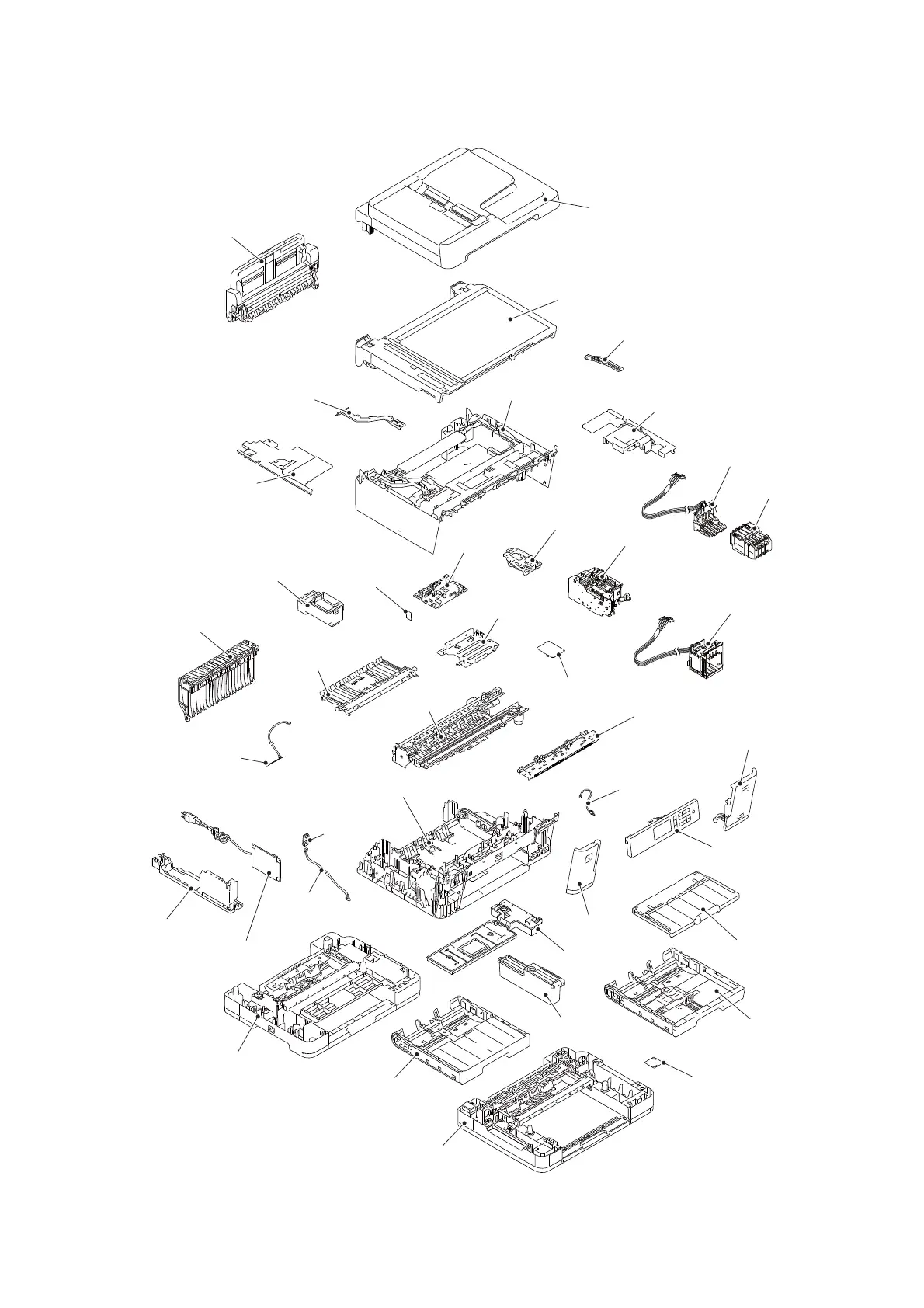

2.5 Components
Fig. 2-6
ADF unit
Document scanner unit
Upper cover
Harness cover
Head/carriage unit
Maintenance unit
Ink refill ASSY
Modem PCB
Main PCB
Wireless LAN
Ink cartridge
Control panel ASSY
Ink cartridge cover
Engine related
PCB ASSY
cover sensor ASSY
Paper tray
Paper tray ASSY #2/#3
Front cover L
Power supply
Registration sensor
PCB ASSY
PF encoder
PF encoder
sensor PCB
sensor harness
PCB ASSY
Lower power
supply frame
Lower cover
Flushing box
Jam clear cover
FB stopper
MP tray ASSY
Edge cover
FFC separator
Main PCB frame
Switchback frame ASSY
Paper feed arm
parts
Output
paper tray
Ink absorber box
Lower tray unit
ASSY
frame ASSY
(with Lower tray)
Ink absorber box
(without
Lower tray)
(for Ink cartridge model)
Ink refill ASSY
(for Ink tank model)
Tank case
ASSY
ASSY #1
3rd tray unit
3rd tray relay PCB
