Brother MFC-J6935DW

3-89
Confidential

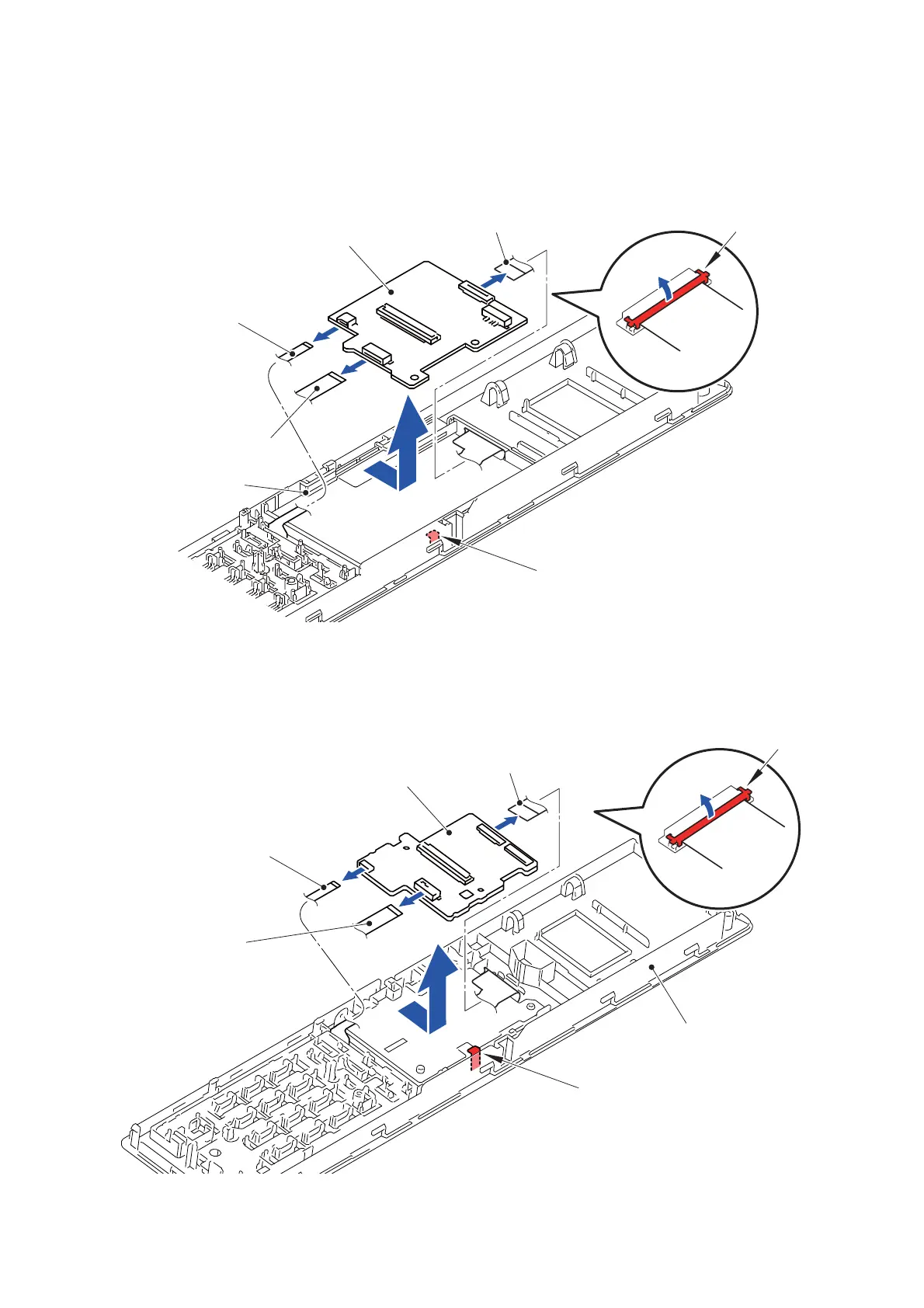

9.31 LCD PCB
< 3.7 inch LCD model >
(1) Disconnect the three Flat cables from the LCD PCB.
(2) Remove the LCD PCB from the LCD holder.
Fig. 3-97
< 2.7 inch LCD model >
(1) Disconnect the three Flat cables from the LCD PCB.
(2) Release the Hook and remove the LCD PCB from Panel upper cover.
Fig. 3-98
1
1
1
2
Hook
LCD PCB
Panel PCB flat cable
Touch panel plate FFC
LCD flat cable
Lock
LCD holder
1
1
1
2
Hook
LCD PCB
Panel PCB flat cable
Touch panel plate FFC
LCD flat cable
Lock
Panel upper cover
