3-152
Confidential

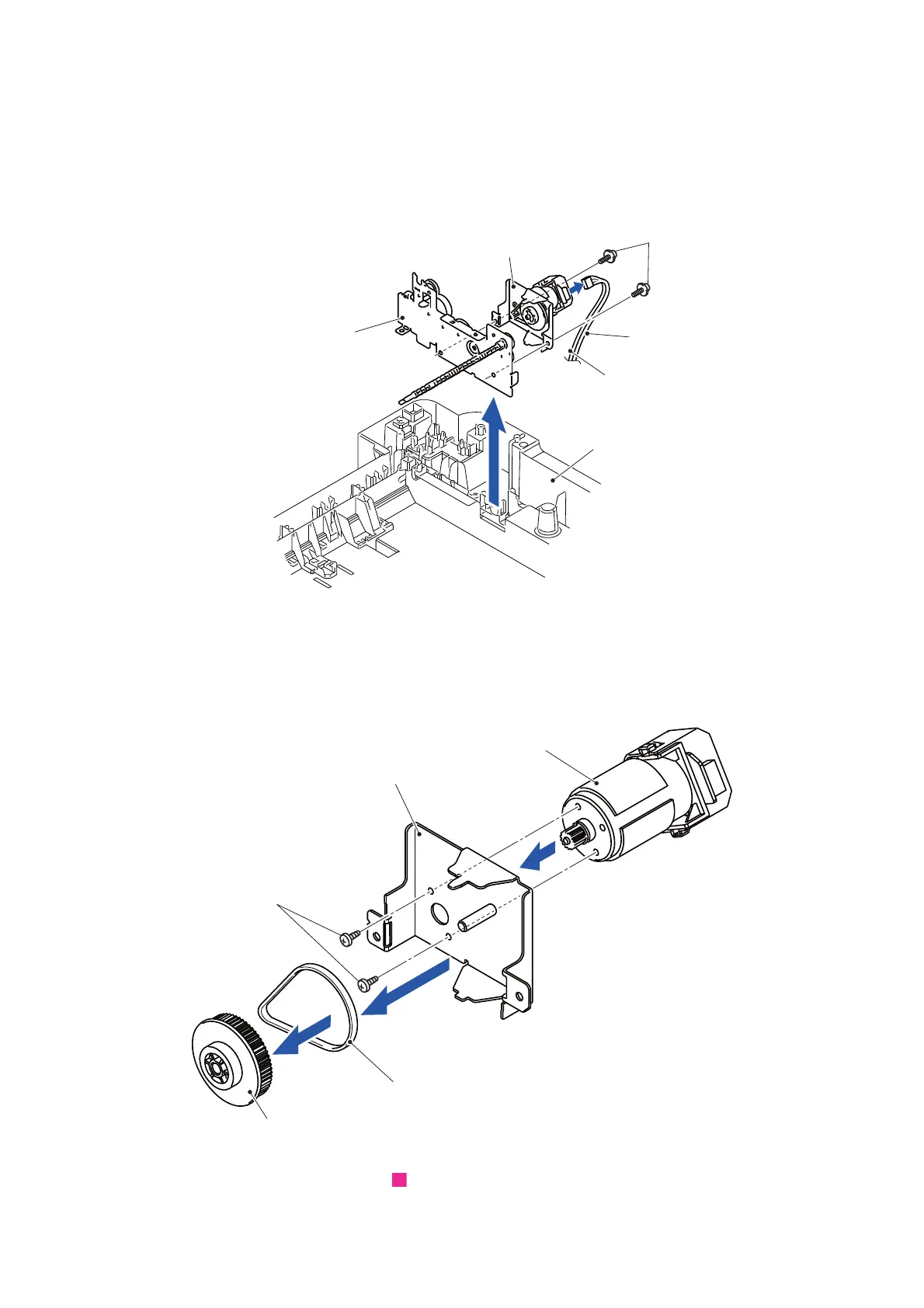

(10)Lift the 3rd tray idle gear frame from the 3rd tray unit and disconnect the harness
connector.
(11)Remove the two screws (SCREW CUP M3x6) and remove the 3rd tray motor
frame from the 3rd tray idle gear frame.
Fig. 3-208
(12)Remove the Idle gear and 3rd tray PF roller belt from the 3rd tray motor frame.
(13)Remove the two screws (SCREW BIND M3x6) and remove the 3rd tray paper feed
motor from the 3rd tray motor frame.
Fig. 3-209
Routing of harnesses: See 3rd tray relay PCB”.
3rd tray motor frame
3rd tray unit
3rd tray idle gear frame
SCREW CUP M3x6
3rd tray paper feed motor relay harness
3rd tray paper feed
motor harness
10b
10a
3rd tray PF roller belt
3rd tray paper feed motor
3rd tray motor frame
12b
13
SCREW BIND M3x6
Idle gear
12a
18
