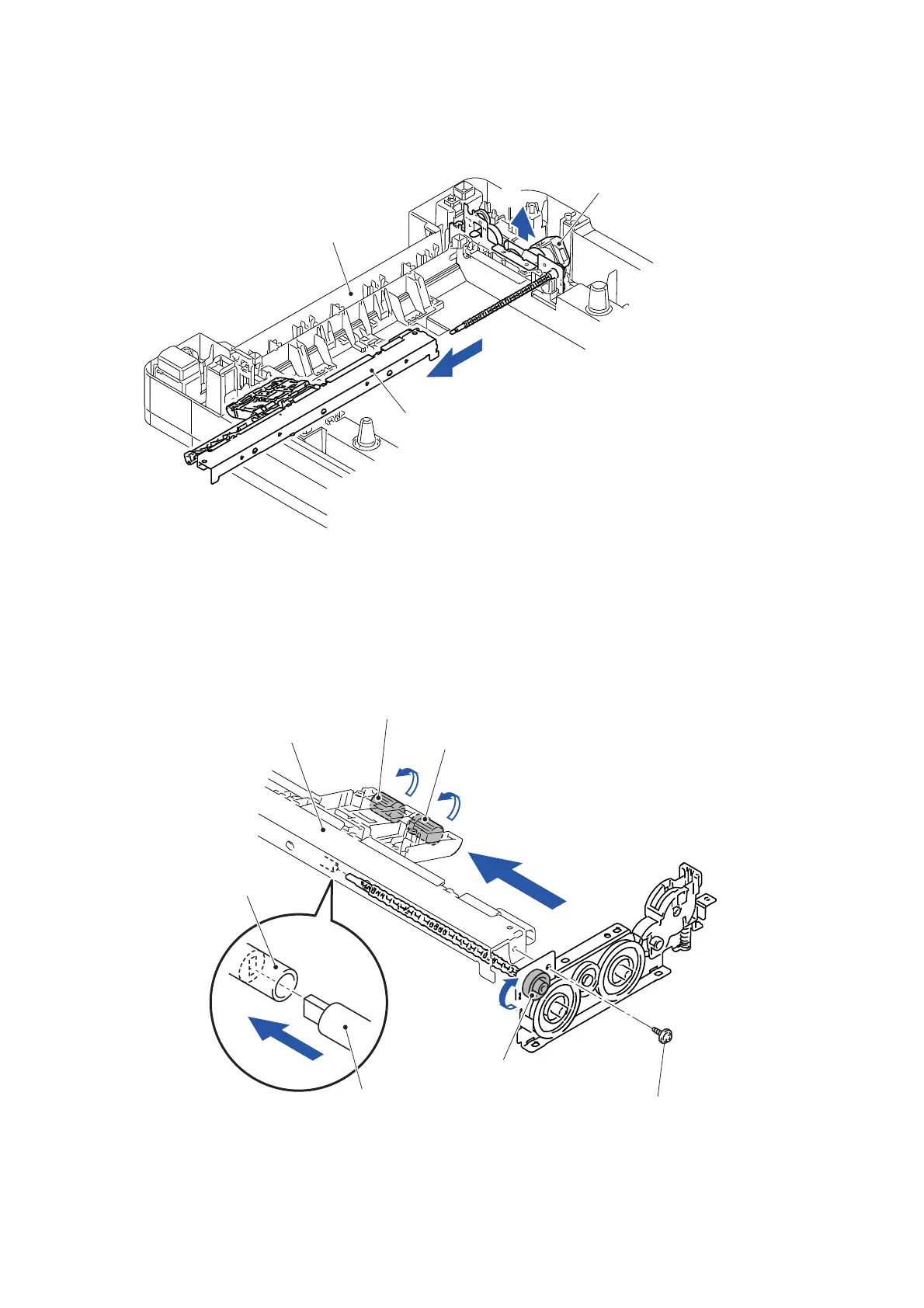

(9) Slightly lift the 3rd tray idle gear frame and pull out the 3rd tray frame ASSY in the
direction of the arrow 9b to remove it.
Fig. 3-206
Assembling Note: Insert the shaft of the ASF gear shaft LT into the 3rd tray frame
ASSY as fitting it to the hole of the bushing.
Turn the ASF gear shaft LT and check that the T3 paper pull-in
roller L/R turns.
Fig. 3-207
3rd tray unit
3rd tray idle gear frame
3rd tray frame ASSY
9a
9b
SCREW CUP M3x6
3rd tray frame ASSY
ASF gear shaft LT
ASF gear shaft LT
3rd tray frame ASSY
T3 paper pull-in roller R
T3 paper pull-in roller L
