(8) Release all the wiring of the Document scanner unit and ADF unit harnesses.
(9) Release the two Hooks and remove the FFC separator B from the Upper cover.

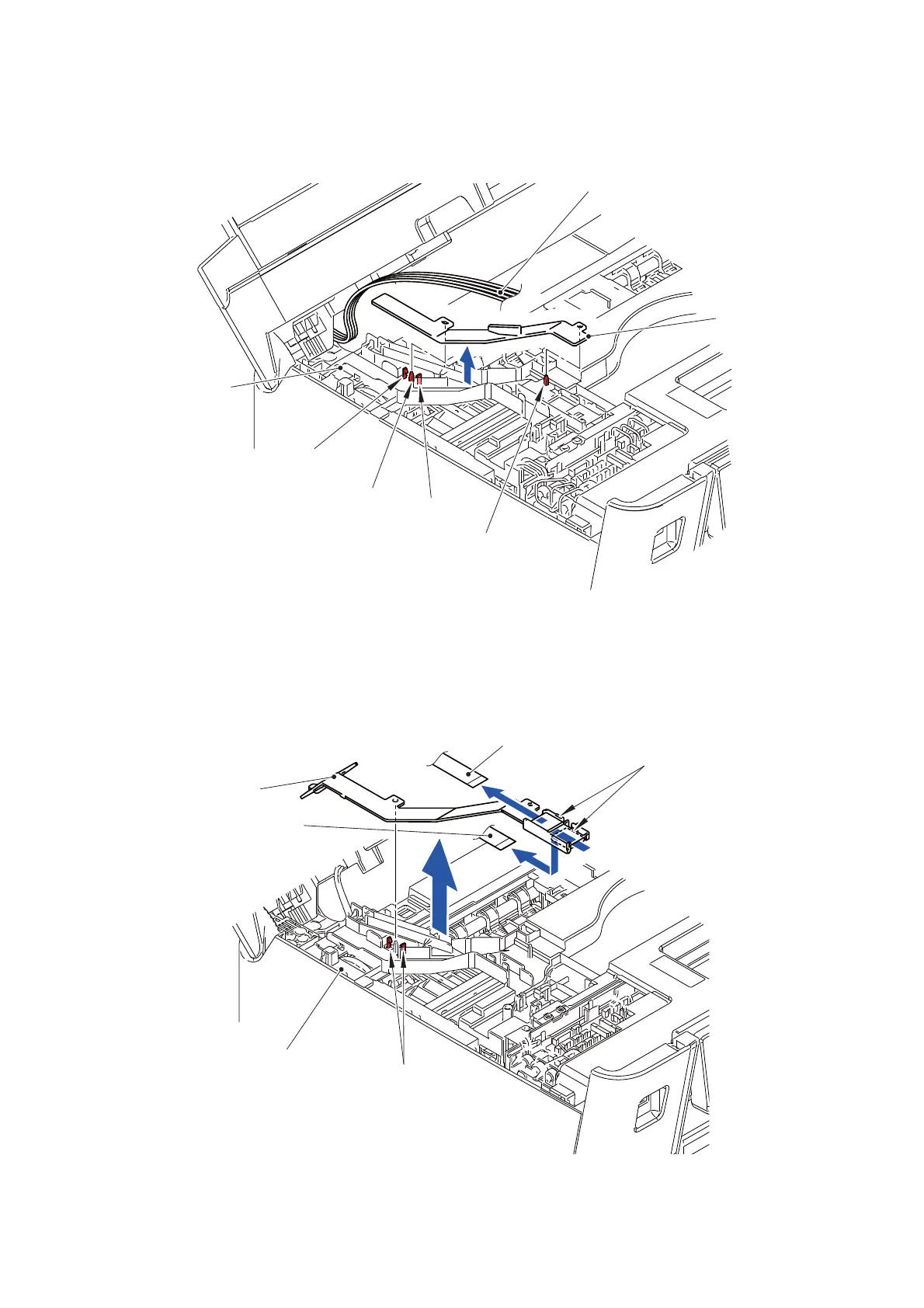

Fig. 3-39
(10)Release the two Hooks and remove the FFC separator A from the Upper cover.
(11)Remove the First side CIS flat cable from the Flat core on the FFC separator A.
(12)Remove the Second side CIS flat cable from the Flat core under the FFC separator A.
Fig. 3-40
Harnesses
Boss
Upper cover
FFC
Hook
separator B
Boss
Hook
Upper cover
Hooks
Flat cores
FFC separator A
10
11
12
First side CIS flat cable
Second side CIS flat cable
