Brother MFC-J6935DW

3-58
Confidential

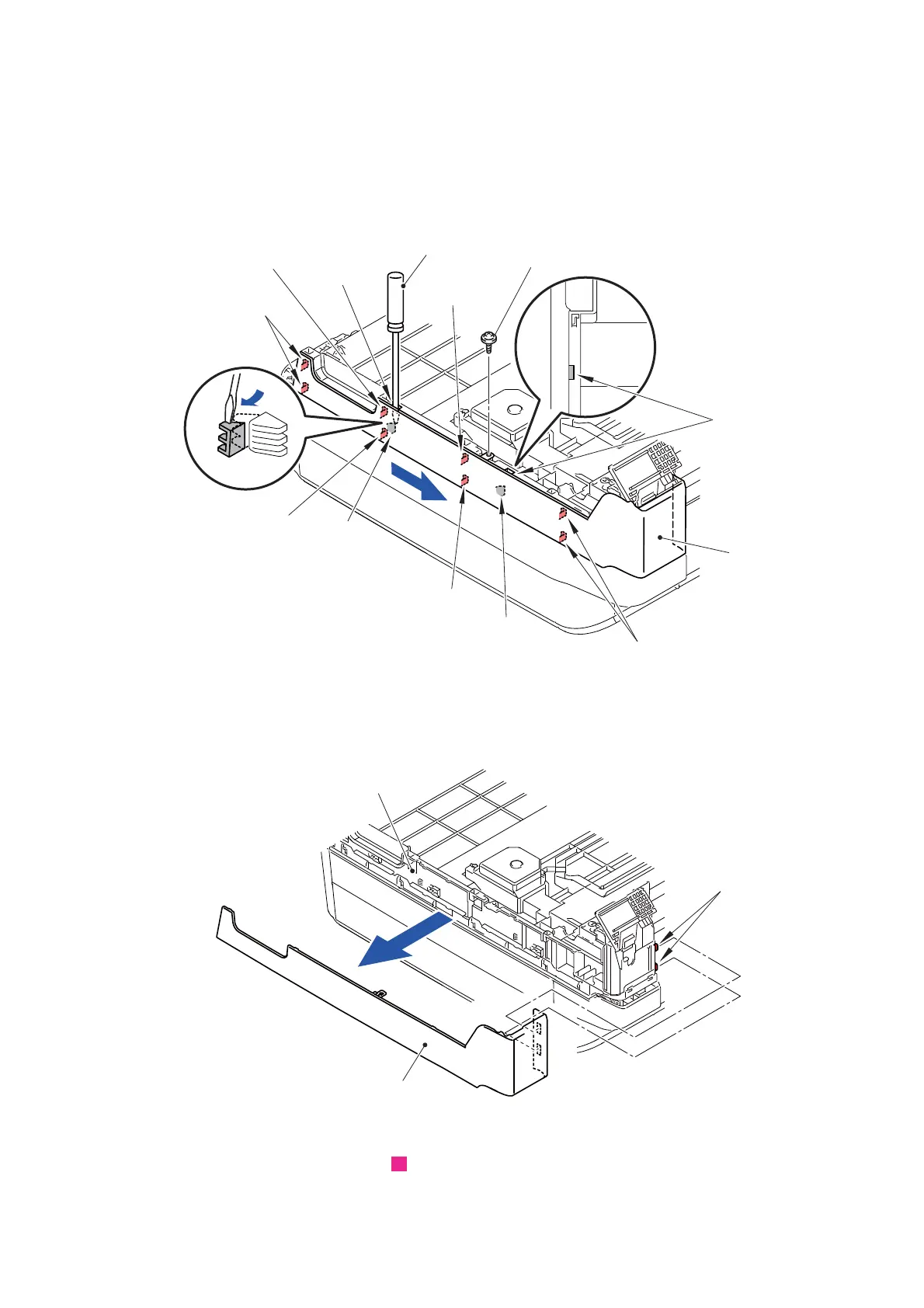

(16)Remove the screw (TAPTITE CUP B M3x10) from the Document scanner side
cover L.
(17)Insert a flat screwdriver into the cutout and release the section “A” and section “B”.
(18)Slide the Document scanner side cover L in the direction of the arrow and release
the eight Hooks.
Fig. 3-43
(19)Release the two Hooks and remove the Document scanner side cover L from the
Document scanner unit.
Fig. 3-44
Routing of harnesses: See “ Scanner harness holder”.
TAPTITE CUP B M3x10
Document
Hooks
Cutout
“B”
“A”
scanner
side cover L
Hooks
Hook
Hook
Hook
Cutout
Flat screwdriver
Hook
Document scanner side cover L
Hooks
Document scanner unit
