(5) Remove the screw (TAPTITE BIND B M3x14) from the Document cover base.
Assembling Note: Be sure to mount the ADF FG wire.

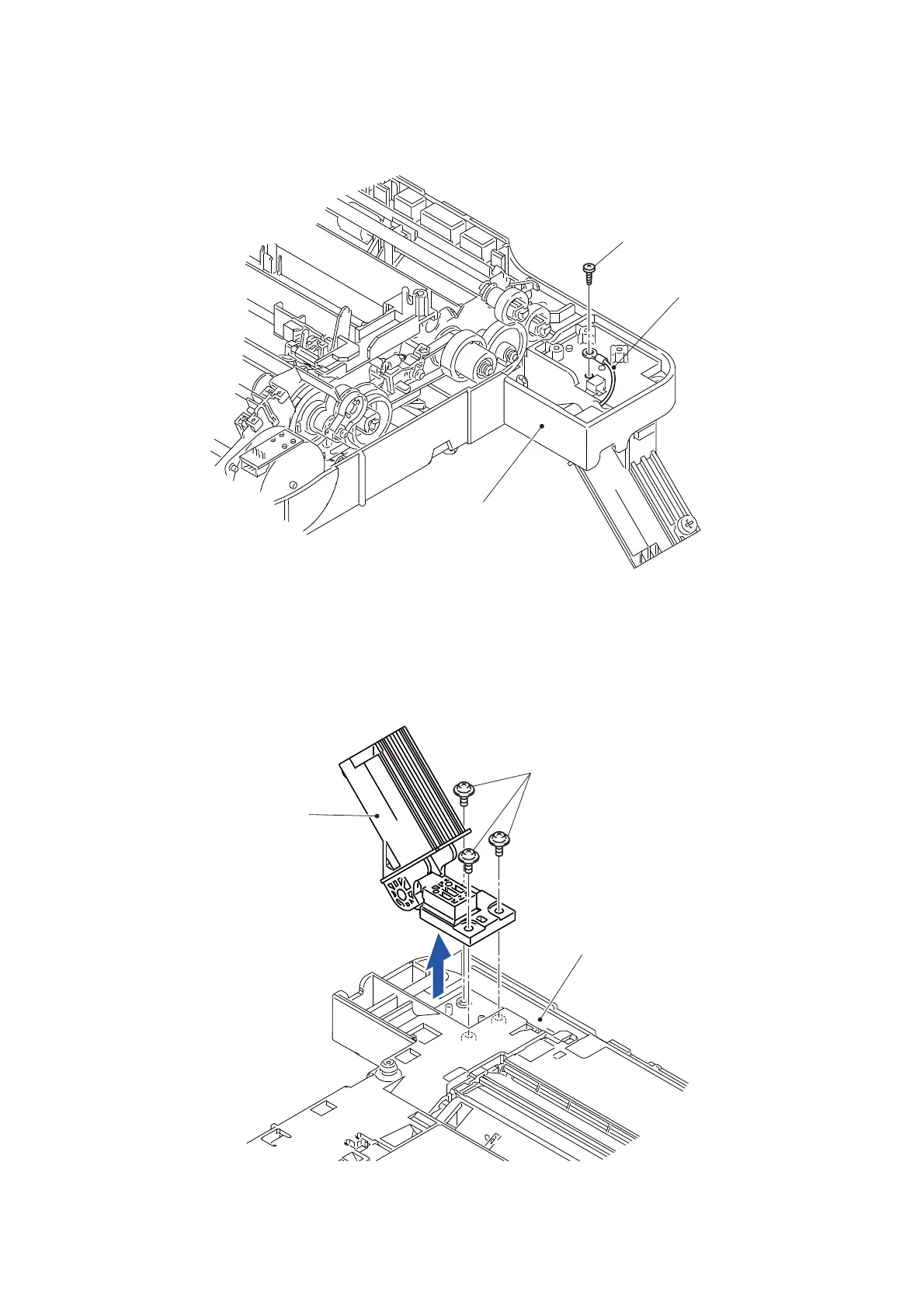

Fig. 3-60
(6) Turn the ADF unit upside down.
(7) Remove the three screws (TAPTITE CUP B M3x10) and remove the ADF hinge
from the Document cover base.
(8) In the same way, remove the R side as well using the steps (5) to (7).
Fig. 3-61
Document cover base
TAPTITE BIND B M3x14
ADF FG wire
TAPTITE CUP B M3x10
ADF hinge
Document cover base
