3-120
Confidential
(10)Remove the two screws (SCREW BIND M3x6) and remove the Motor plate from
the CR frame ASSY.
(11)Remove the two screws (SCREW BIND M3x6) and remove the Carriage motor
from the Motor plate.
Assembling Note: Assemble the carriage motor in a way that the print section comes
to the position shown in the figure.

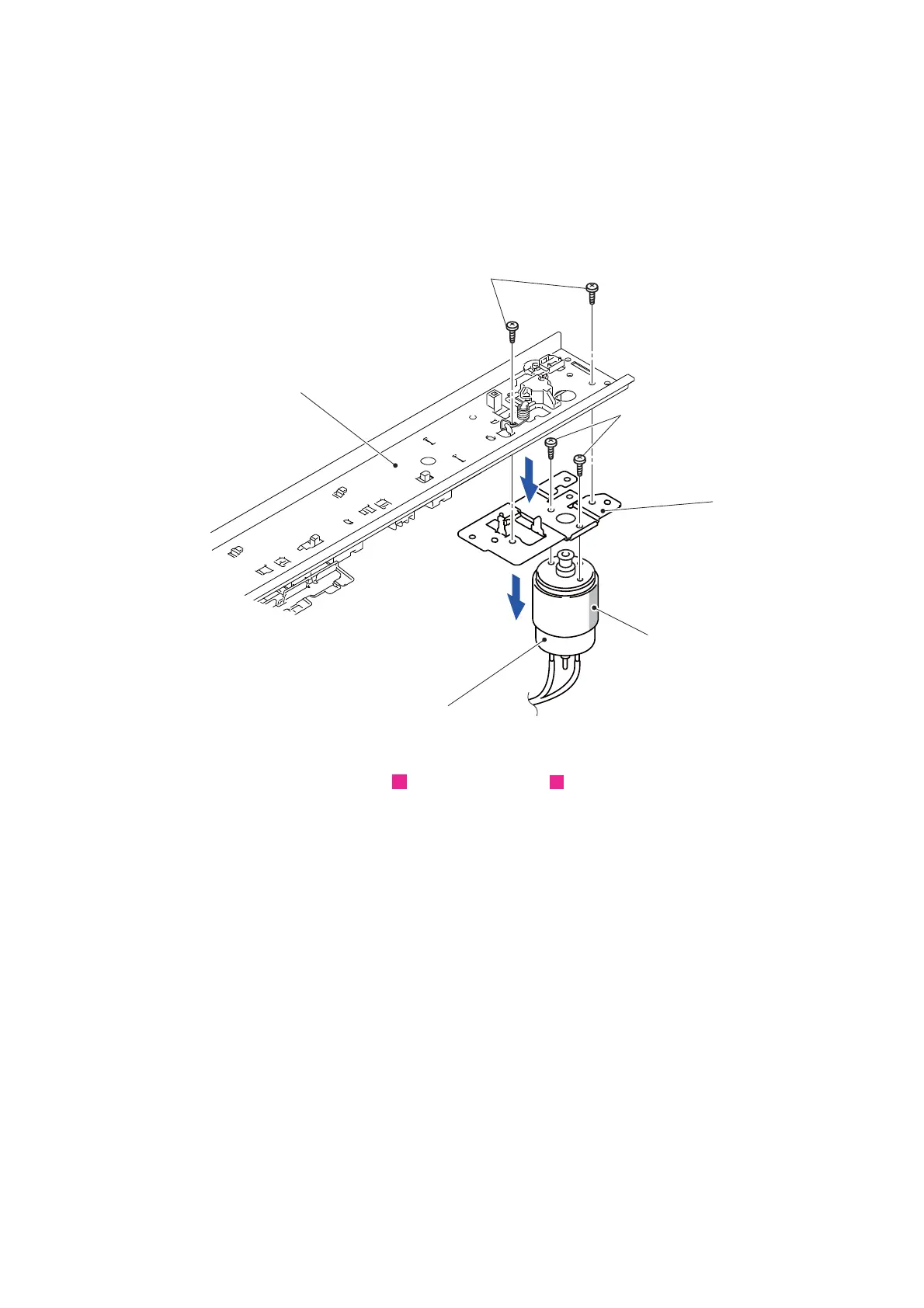

Fig. 3-152
Routing of harnesses: See “ Lower cover R”, “ Ink refill ASSY”.
SCREW BIND M3x6
CR frame ASSY
Motor plate
Print section
Carriage motor
SCREW BIND M3x6
10
11
11
To Next Page
