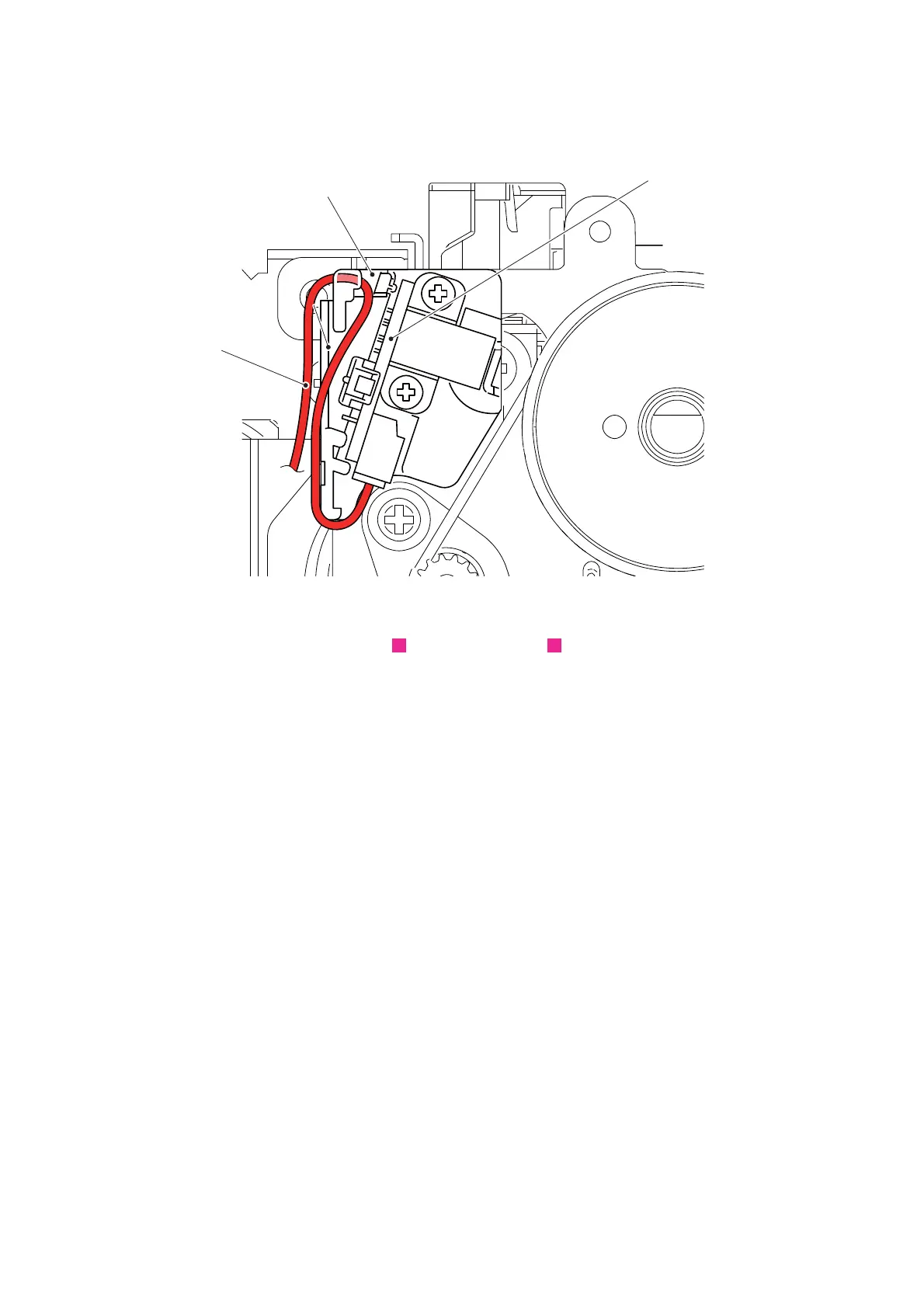

Assembling Note: Mount the PF encoder sensor PCB as shown in the figure below.
Fig. 3-172
Routing of harnesses: See “ Lower cover L”, “ Paper feed motor”.
Encoder sensor holder
PF encoder sensor PCB
PF encoder sensor harness
7
10
