Brother MFC-J6935DW

3-141
Confidential

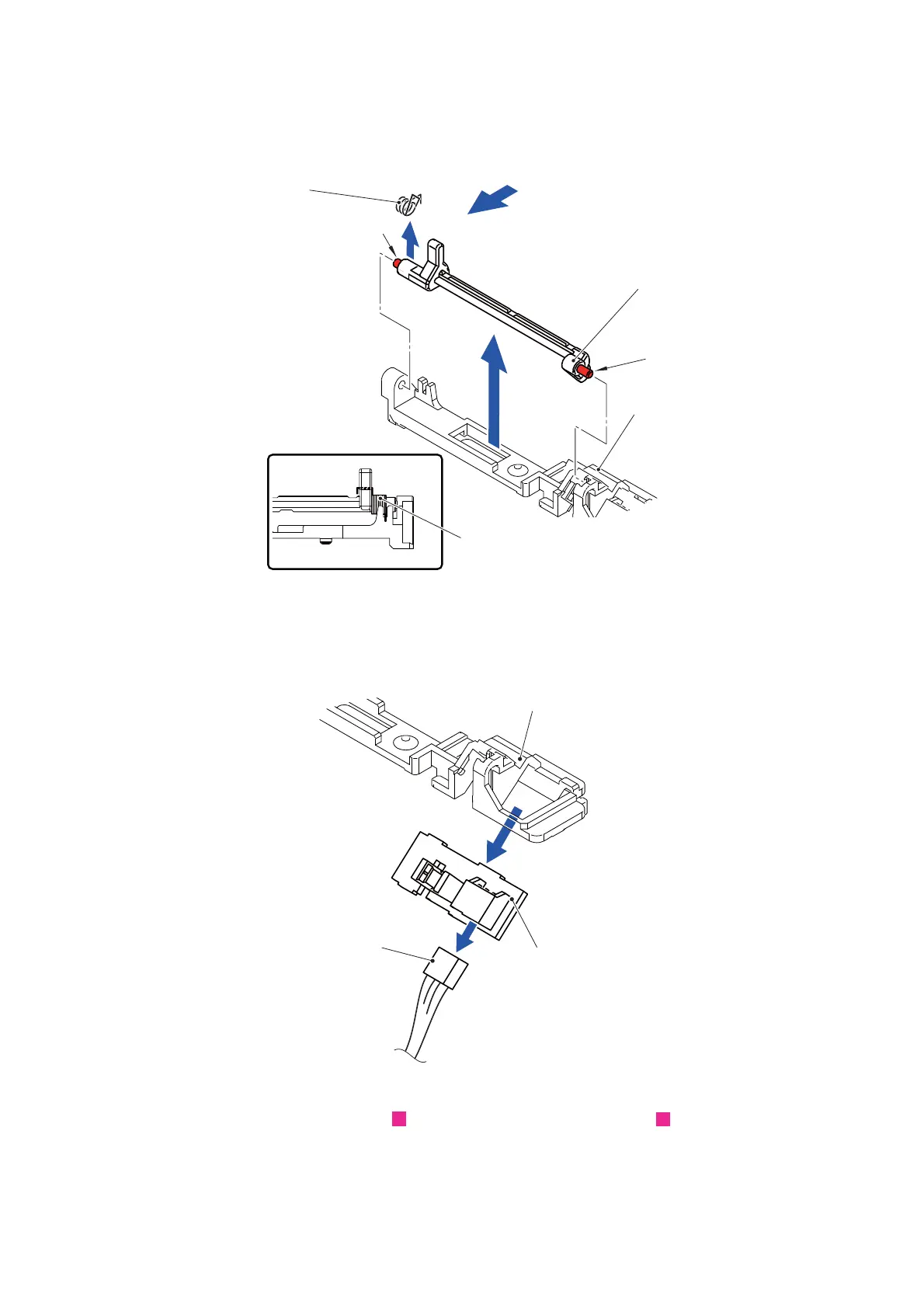

(7) Release the Boss at one side and remove the Registration actuator and
Registration actuator spring from the Registration sensor holder.
Fig. 3-189
(8) Remove the Registration sensor PCB from the Registration sensor holder.
(9) Disconnect the Registration sensor harness from the Registration sensor PCB.
Fig. 3-190
Routing of harnesses: See “ Paper feed arm frame ASSY”, “ Registration
sensor harness”.
Boss
Registration actuator
Boss
Registration sensor holder
Registration actuator spring
Registration actuator spring
A view
<A view>
Registration sensor holder
Registration sensor PCB
Registration sensor harness
8
9
6
15
