IV - 39

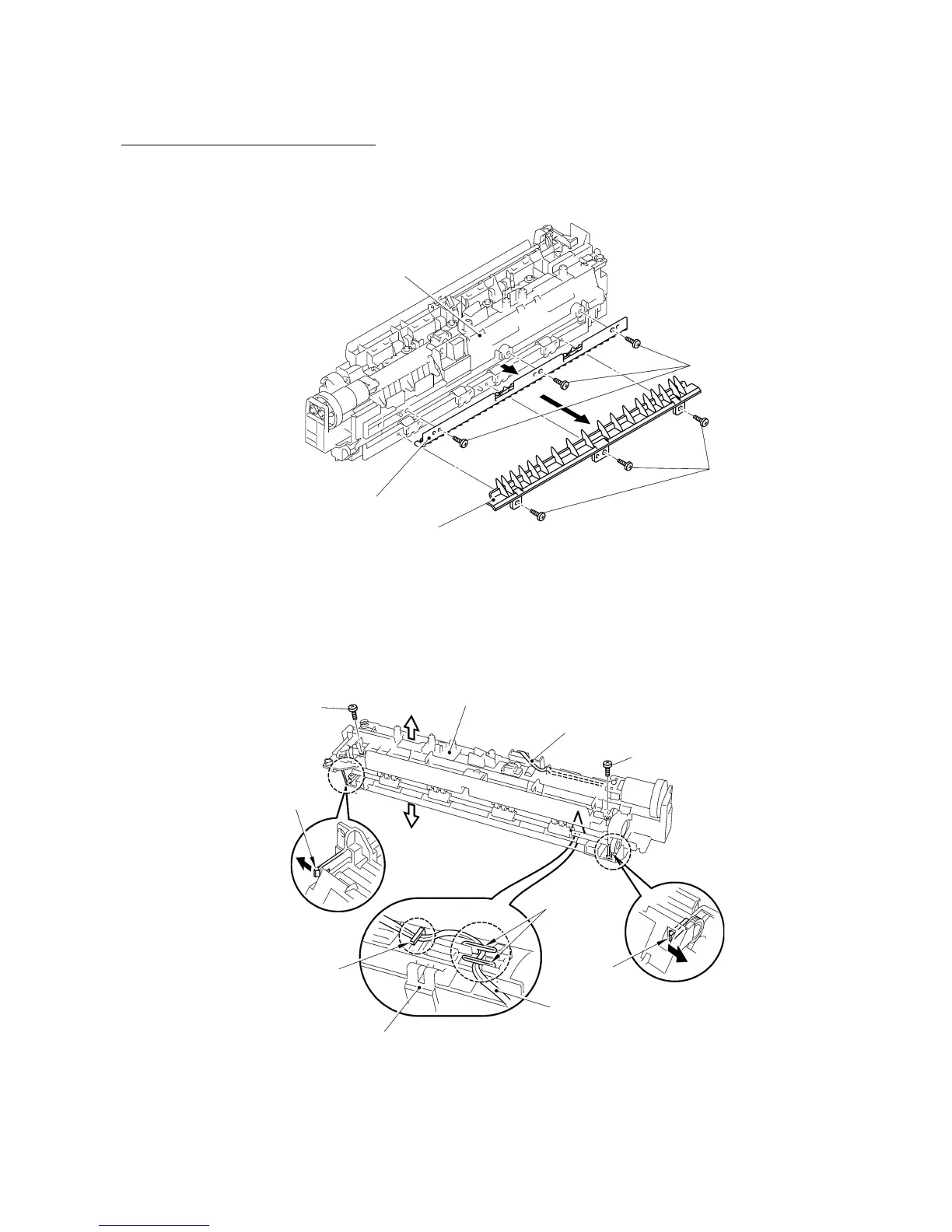

[Disassembling the heat-fixing unit]
(1) Remove the three screws and take off the FU front paper guide.
(2) Remove the three screws and take off the star wheel holder ASSY.
(3) Release the heater thermistor harness from the three harness guides provided on the
underside of the heat-fixing unit.
(4) Remove the two screws from the top of the heat-fixing unit.
(5) Unlatch the upper FU frame from the lower one at each of the right and left ends.
Heat-fixing unit
Screw, bind M3x10
FU front paper guide
Star wheel holder ASSY
Screw, bind M3x10
Taptite, cup B M3x20
Heater thermistor harness
Heat-fixing unit
Taptite, cup B M3x20
Latch
Upper side
Lower side
Harness
guides
Harness guide Latch
Heat-fixing unit
Heater thermistor harness
To Next Page
