2–2
Chapter 2 –Controls and Connections
Front Panel
2.1 Front Panel

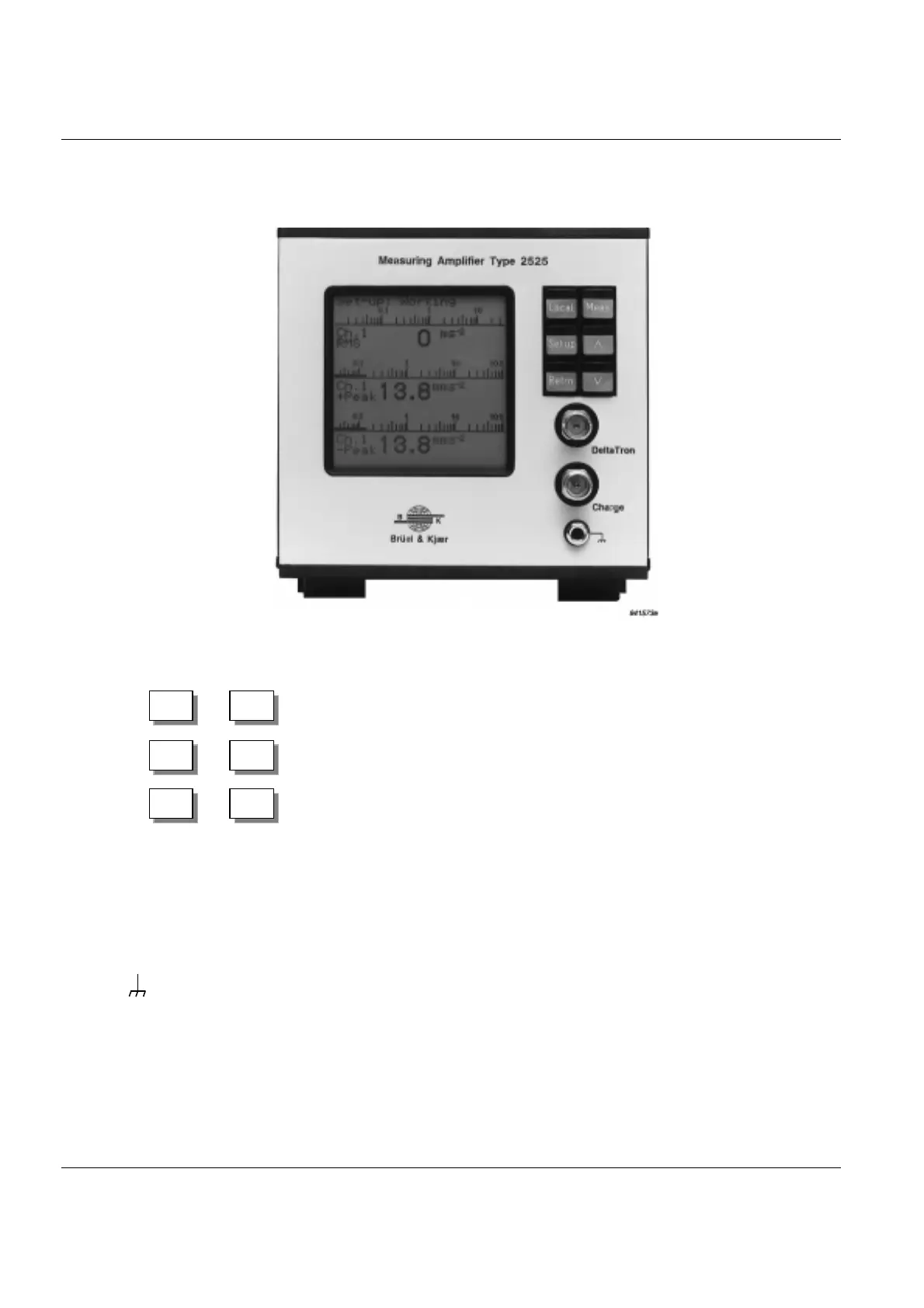

Fig.2.1 Front panel of Measuring Amplifier Type 2525
The amplifier pushkeys control measurement, allowing you to
move between menus and select options, specify parameter val-
ues, and shift between remote and local mode. See Chapter 3 for
a detailed description of how these keys are used.
DeltaTron Input For connecting a DeltaTron
®
transducer to the amplifier. See sec-
tion 1.2 for full specification.
Charge Input For connecting a charge transducer to the amplifier. See section
1.2 for full specification.
Chassis and signal ground.
Local Meas
Setup
Retrn
∨
∧
