The minispec Menu Functions
56 E1400011_1_001

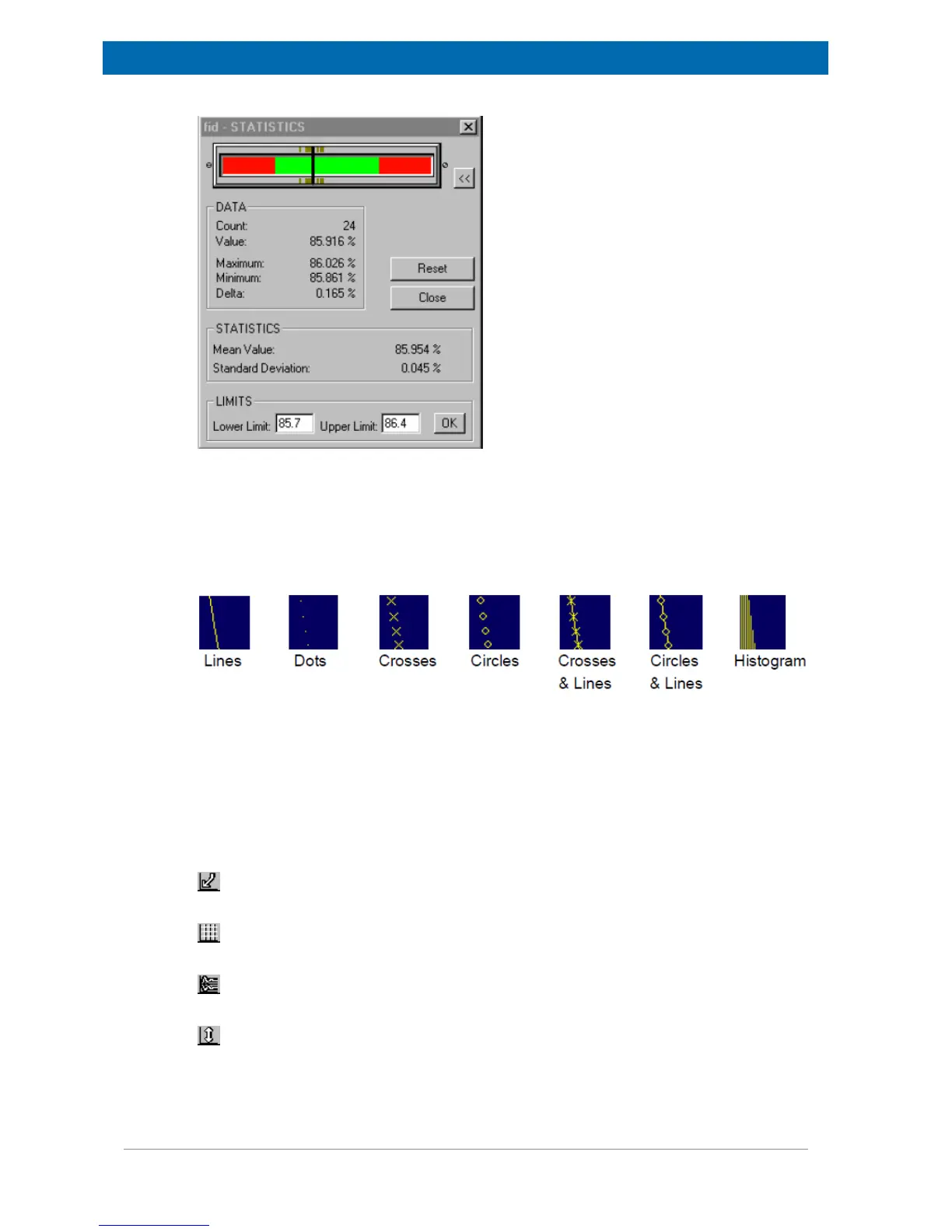

Figure8.11: The Statistics Box
4. Fit Info: You can display a window containing all information of a current fit. An active Fit
Window is marked with a check mark.
The Display Modes Command
Different display modes are available for the measurement signal. Possible modes are:
Figure8.12: Display Modes
You can activate the desired display mode with a mouse click.
The Display Scaling and the Display Cursor Commands
There are various possibilities for the data and cursor display. With these commands the
scaling of the Signal Window and the options for the cursor displays are adjusted. For easy
handling the commands can be executed using short cuts. The following display operations
are available:
Resets the display to the default view.
Adds a grid to the signal display.
Toggles between separate or overlapping displays of real and imaginary signals.
Toggles between Full Scale (the limits are the highest and lowest values to be displayed)
and normal (100%) signal scale.
