SMART MATRIX FEEDER ↔ ULTRAFEEDER/ROLLING FEEDER/UNIFEEDER ↔ PC

SMART MATRIX FEEDER 1 - 1

SMART MATRIX FEEDER ↔ ULTRAFEEDER/ROLLING FEEDER /

UNIFEEDER ↔ PC

Connection

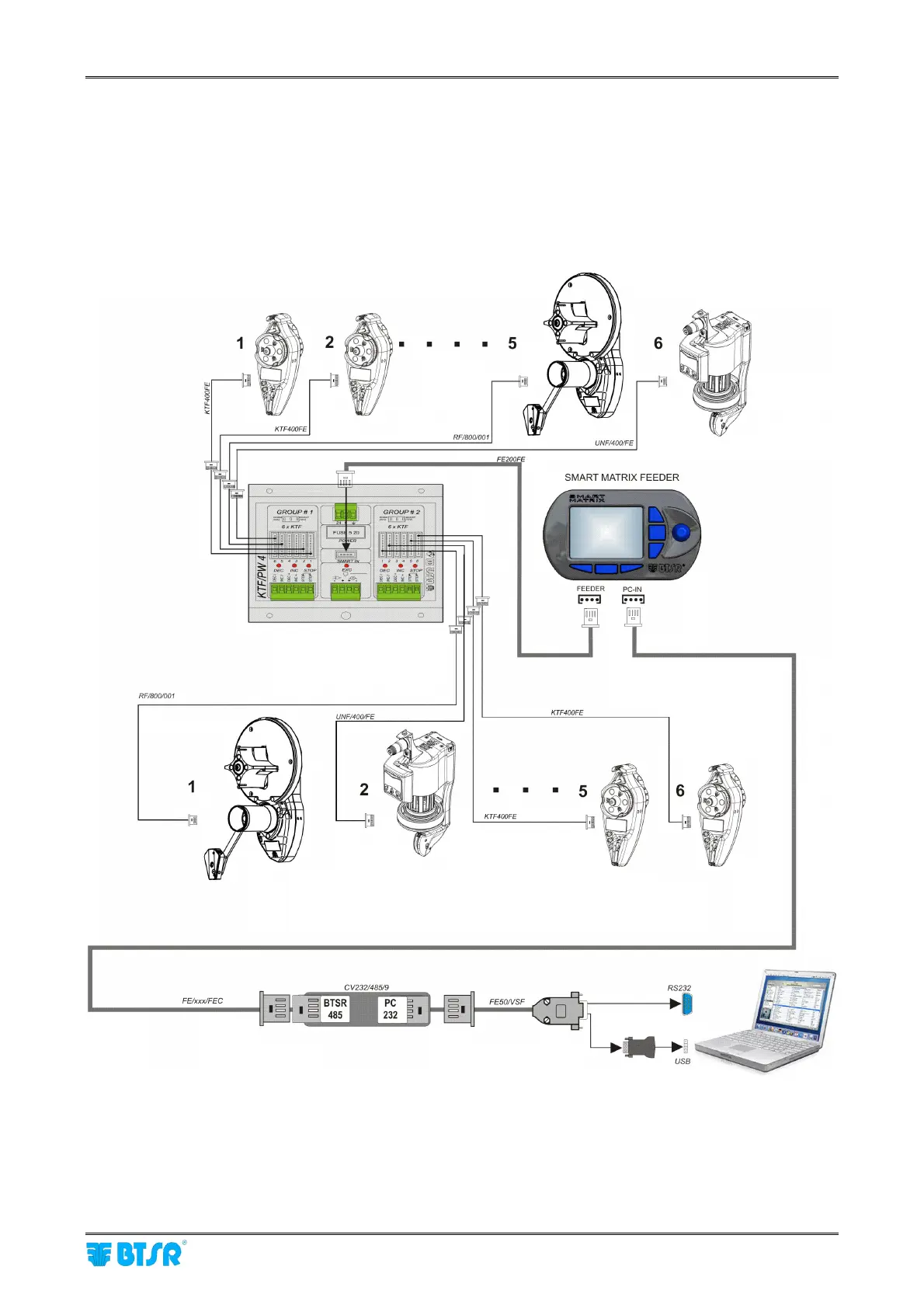

The following diagram shows the interconnections among: SMART MATRIX FEEDER Terminal,

ULTRAFEEDER/ROLLING FEEDER/UNIFEEDER devices and PC.

 The PC is mainly used for firmware update operations on SMART MATRIX FEEDER Terminal.

as alternative
