Configuring the Division Factor of PRX Signal
SMART MATRIX FEEDER 2-15
Configuring the Division Factor of PRX Signal
This function allows you to setup a “PRESCALER value” in case of too fast PRX signal.
The number of actual PRX pulses will be divided by the number setup will this function.
This function is effective only on SMART MATRIX FEEDER terminals specifically pre-set from the
hardware point of view.
Should you need to activated the PRESCALER function on not pre-set terminals, you are kindly requested to
contact the BTSR Service Department.

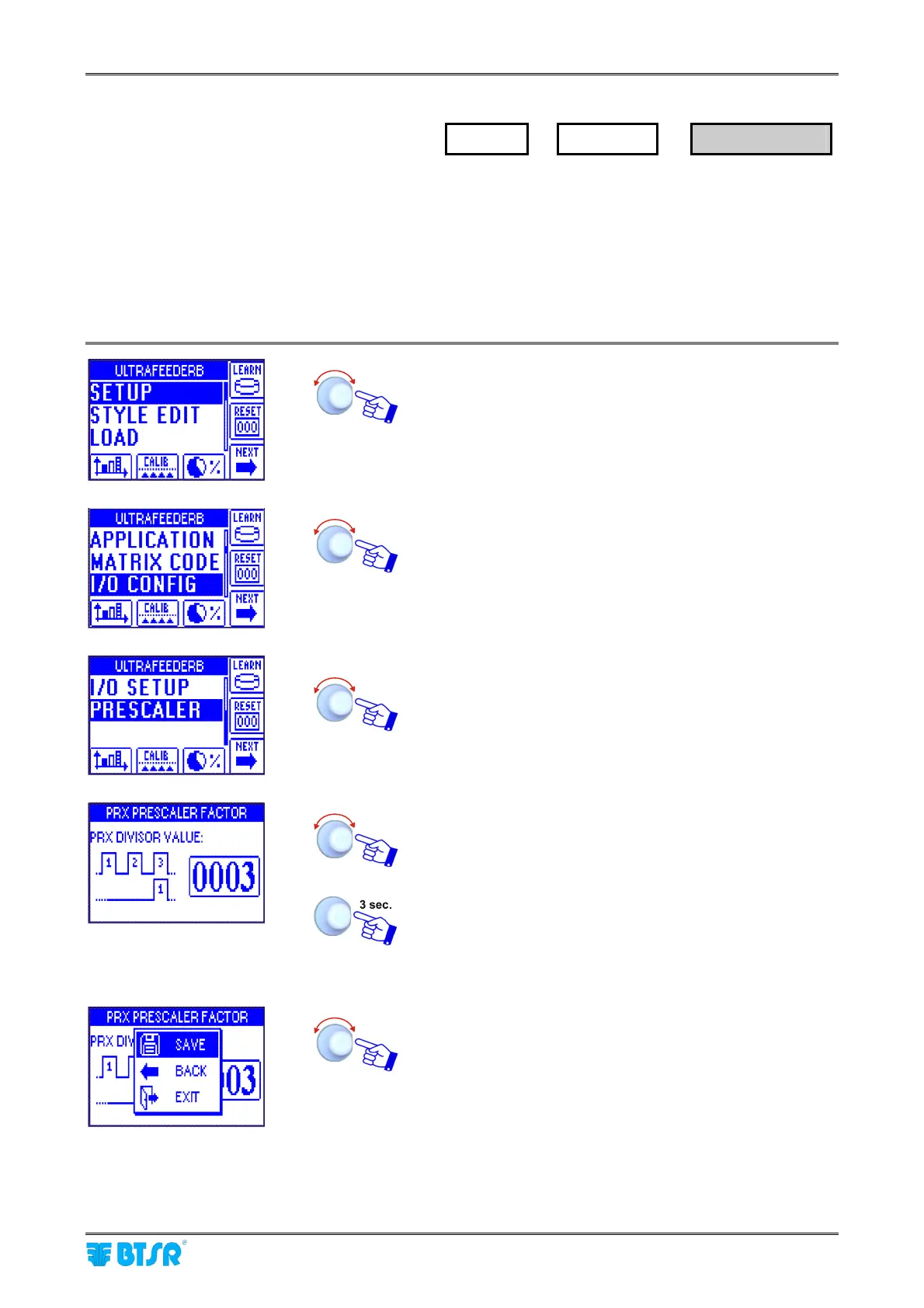

Enter the SETUP menu.
Select I/O CONFIG.
Select PRESCALER.
Set the desired division factor for the PRX signal (0003 on
this example).
To activate the saving function.
SAVE to save the choice, BACK to return to the previous
screen without saving, EXIT to return to main menu.
SETUP
→
I/O CONFIG
→
PRESCALER
