btsr SMART MATRIX FEEDER - Terminal Technical Characteristics

SMART MATRIX FEEDER ↔ ULTRAFEEDER/ROLLING FEEDER/UNIFEEDER /PC Interface
SMART MATRIX FEEDER 1 - 2
SMART MATRIX FEEDER ↔ ULTRAFEEDER/ROLLING FEEDER
/UNIFEEDER /PC Interface

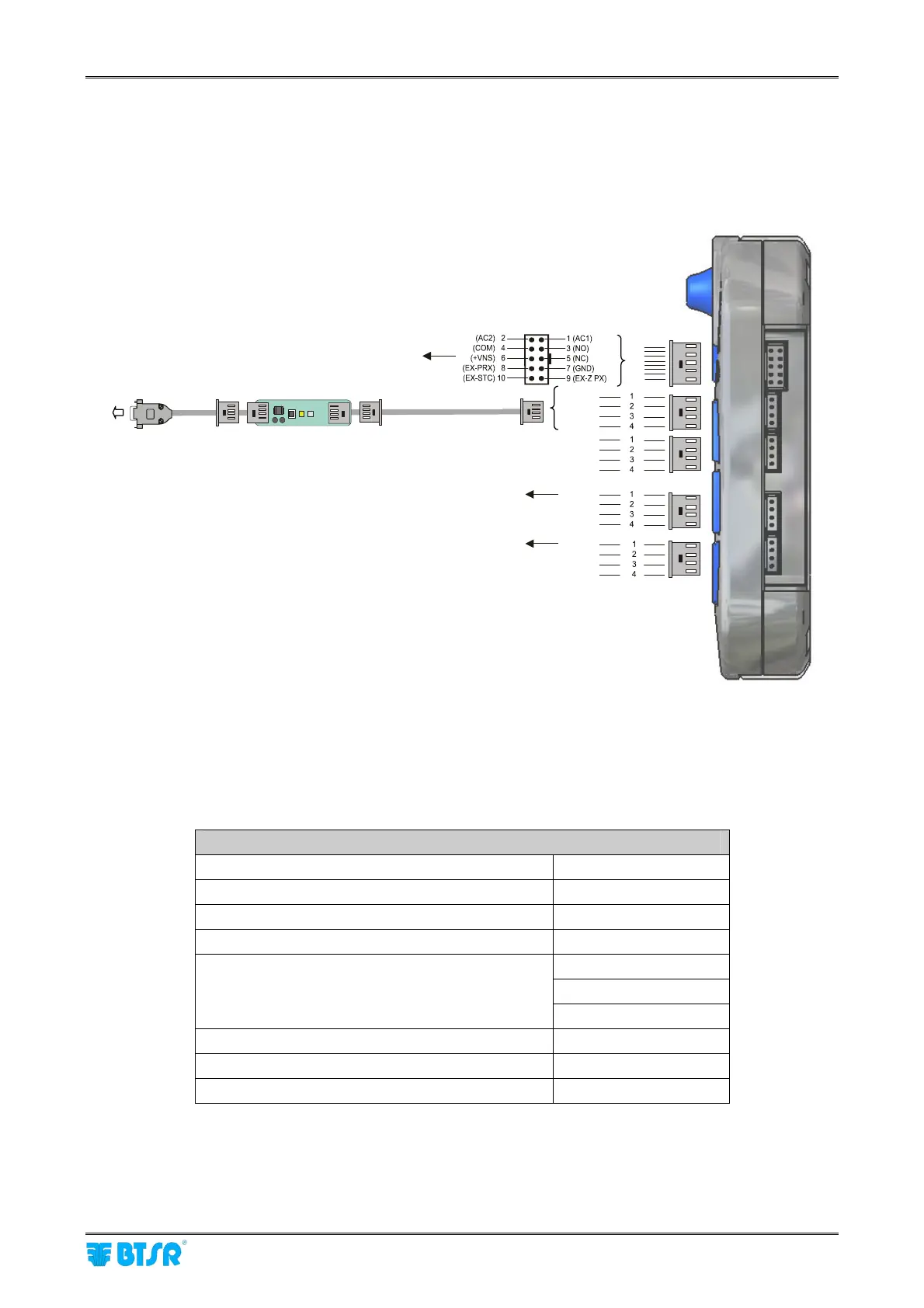

The following figure shows the electrical interface (pin assignment) of SMART MATRIX FEEDER terminal.
The “Printer” and “USB” connectors are not currently used for FEEDER application.
SM-DIN
PRINTER
1
10
+24Vdc
Gnd
RxTx+
RxTx-
---------
Gnd
RxTx+
RxTx-
US
B
PC-OUT
V-in
Gnd
RxTx+
RxTx-
V-in
Gnd
RxTx+
RxTx-
MA2/FE
FE50/VSF
PC
CV232/485/9
P
LV
Alimentazione da KTF/PW4
Alimentazione da KTF/PW4
Interfaccia Macchina Tessile
(*)
SM-DIN
PC-IN
(*) Confirm that the LV green Led shows a double flashing (communication speed on CV232/485/9 = 115
Kbps).
If necessary, press the small P button.
SMART MATRIX FEEDER Terminal Technical Characteristics
Power supply voltage 24 VDC ± 10%
Current absorption 100 mA Max
Protection fuse (SMART MATRIX) 1.5 A
Protection fuse (Sensor power supply) 1.5 A
0 – 24 VDC
VIL Max 1.2 VDC
Inputs
VIH Min 5 VDC
Operating temperature range +10° / +60° C
Storage temperature -25° / +85° C
Overall dimensions 140x80x31 mm
 For more details about the connection of ULTRAFEEDER/ROLLING FEEDER/UNIFEEDER and
KTF/PW4 devices, please refer to the ULTRAFEEDER/ROLLING FEEDER/UNIFEEDER manual.
Fe/xx/Fe
Textile Machine Interface
Power supply from KTF/PW4
Power supply from KTF/PW4
