I/O Configuration on ULTRAFEEDER/ROLLING FEEDER /SMART MATRIX FEEDER
SMART MATRIX FEEDER 2-14
I/O Configuration on ULTRAFEEDER//ROLLING FEEDER
SMART MATRIX FEEDER
This function allows you to configure the input signals (PRX, ZPX, STC) and the relay output (OUT) of
SMART MATRIX FEEDER terminal, as normally open (NO) or normally closed (NC) contacts.
It also allows you to configure the INC/DEC and STOP signals of all the ULTRAFEEDER/ROLLING
FEEDER/UNIFEEDER devices, as normally open (NO) or normally closed (NC) contacts.
 For more details about the various configurable I/O signals, please refer to ULTRAFEEDER
ROLLING FEEDER and UNIFEEDER manuals.

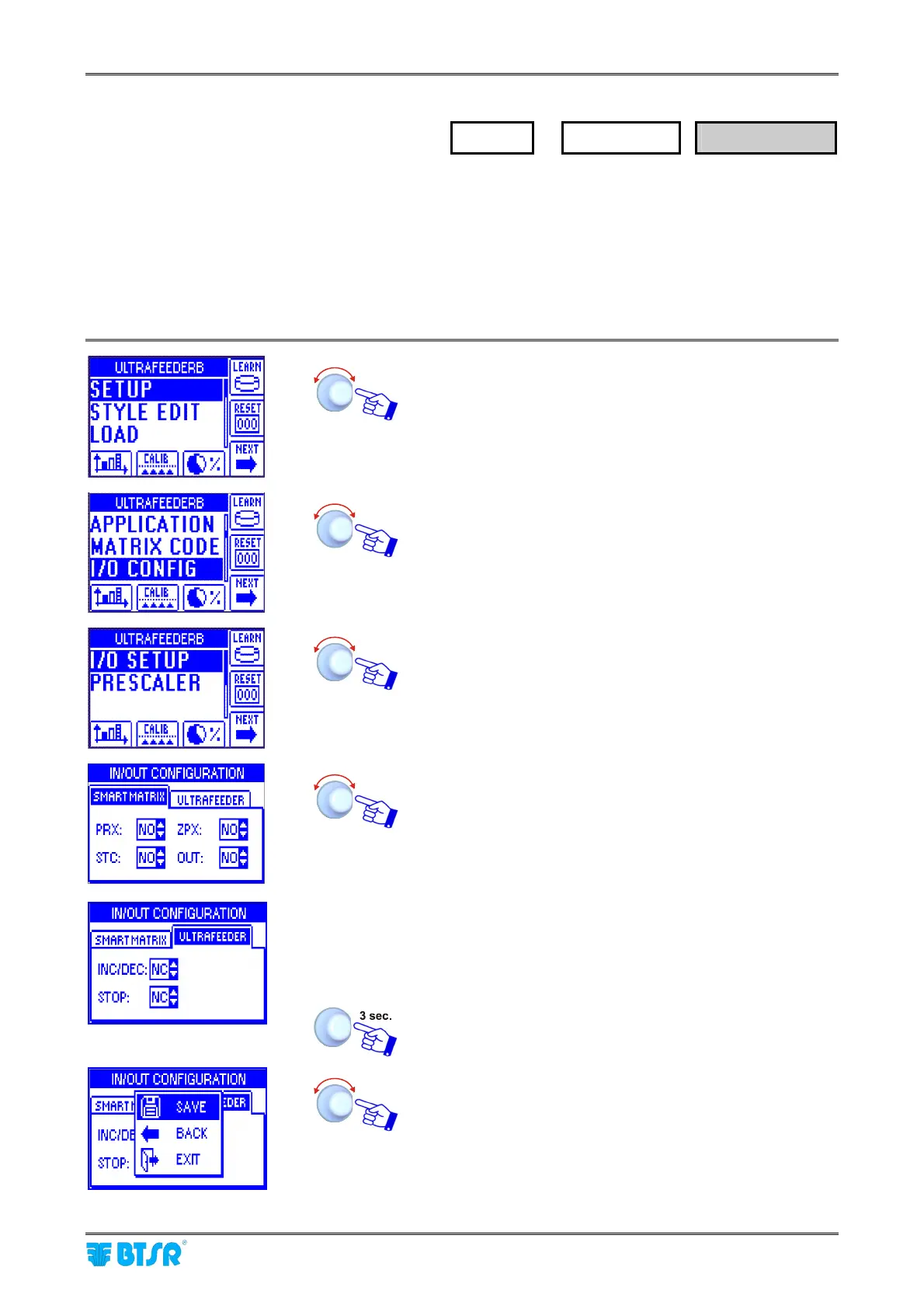

Enter the SETUP menu.
Select I/O CONFIG.
Select I/O SETUP.
Configure the input signals (PRX, ZPX and STC) and the
relay output (OUT) within the SMART MATRIX window,
and the INC/DEC, STOP signals within the
ULTRAFEEDER window, either as NO or NC.
The values set on INC/DEC and STOP parameters will not
be immediately programmed on the ULTRAFEEDER
devices, but they will simply represent the default values of
the signals themselves, within the style.
The actual polarity choice will then be defined group by
group during the style programming operation (STYLE
EDIT) .
To activate the saving function.
SAVE to save the choice, BACK to return to the previous
screen without saving, EXIT to return to main menu.
