Style Programming
SMART MATRIX FEEDER 2-34

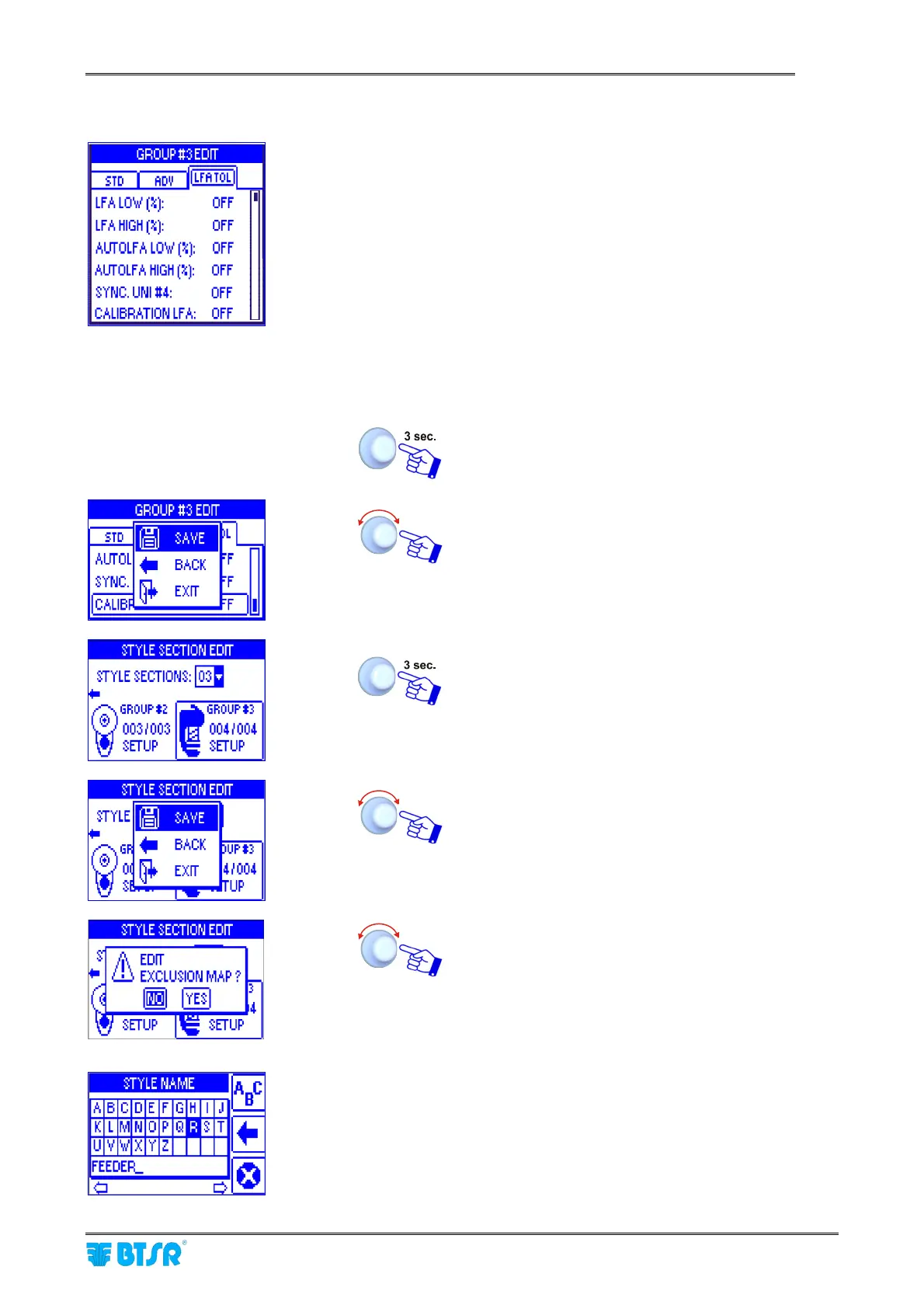

In the LFATOL window you may either setup or
disable (OFF) for every device group, the Learn and
Calibration Functions.
For more details about the meaning of parameters
available on LFATOL window, please refer to
Section 3.
(*) For JACQUARD KNIT application, and additional parameter
(STYLE REPEAT) appears between SYNC. UF #N and
CALIBRATION LFA; this allows you to specify a repeat factor
of your JACQUARD pattern expressed in number of PRX
pulses.
Once you have setup all the relevant parameters
inside the STD, ADV and LFATOL windows.
SAVE to save the set parameters and go back to the
group setting screen
Once you have setup the parameters of all Groups.
SAVE to save the set parameters and move to the
STYLE NAME setting screen.
NO to save the style without modifying the
exclusion map
YES to modify the map.
Set the Style Name (e.g. FEEDER), in place of the
ULTRAFEEDER default name (*), operating as
described on paragraph - Navigation throughout the
Display Windows.
