Operating Notes about LEARN Function
SMART MATRIX FEEDER 3.15

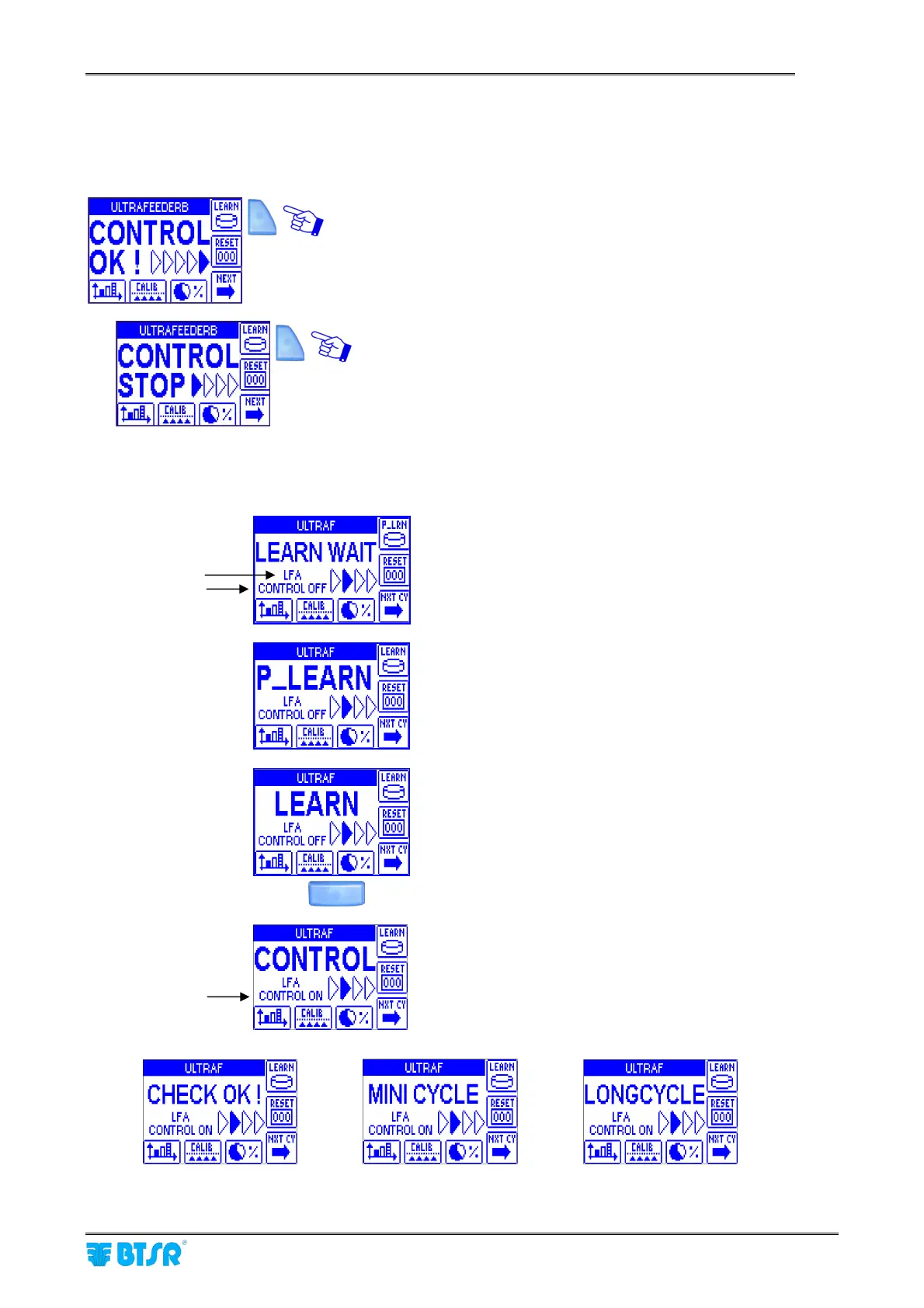

LEARN Examples and indications shown on Display
Example 1: all LEARN functions disabled (OFF) in LFATOL
(irrespective of the selected application)
Example 2: Only LFA enabled in LFATOL.
LFA LOW (%) and/or LFA HIGH (%) enabled (not set to OFF)
AUTOLFA LOW (%) and AUTOLFA HIGH (%) disabled (OFF)
PRX counted = PRX learnt PRX counted < PRX learnt PRX counted > PRX learnt
No effect!
Machine running!
No effect!
Machine stopped!
LFA enabled
Control OFF
System waiting for P_LRN
button pressed by the
operator.
P_LRN button pressed!
System waiting for cycle start
signal ZPX
ZPX signal activation: lighting of lamp 1.
LEARN in progress!
The system starts counting the PRX pulses until
the de-activation of ZPX signal.
1
Learning completed!
System in CONTROL status.
Upon the next activation of ZPX signal, the system
turns-on again the lamp 1 and starts again
counting the PRX pulses until the de-activation of
ZPX signal.
Control enabled
