Technical Data and Installation
- 2.2 - SMART WARP
SM-DIN - Sensor Connection

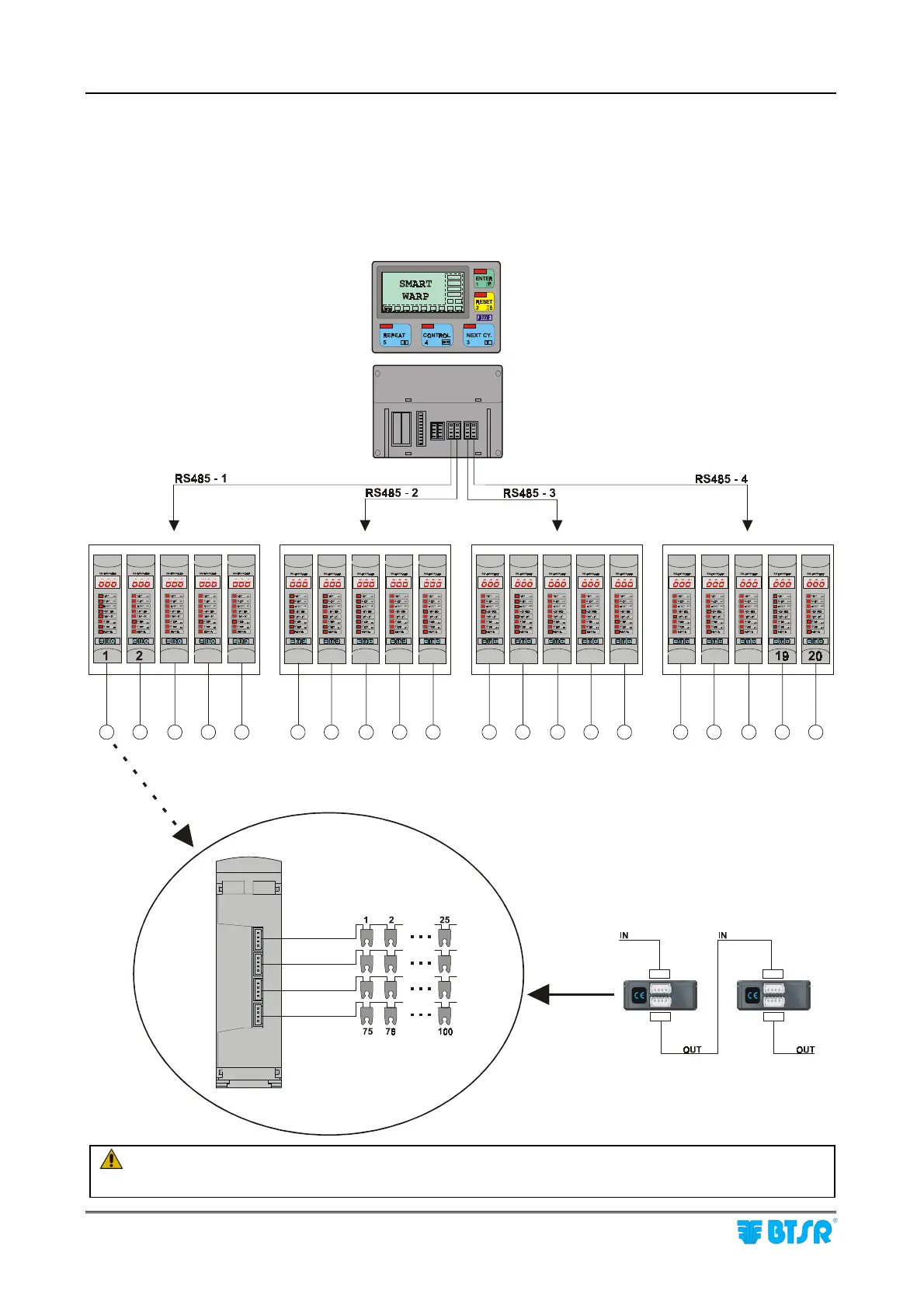

As described on chapter 1, the SMART WARP system can manage up to 2000
IS3 sensors, connected through SM-DIN interface modules (up to 20). Each
module can manage up to 100 sensors distributed along 4 backbone lines.
The SM-DIN modules communicate with SMART WARP terminal via RS485 serial
lines.
Concerning all electrical systems, it is a suggested rule to ensure that the ground cable
(GND) is connected to the device support.
SM-DIN
Modules
Sensors
connection
To Next Page
