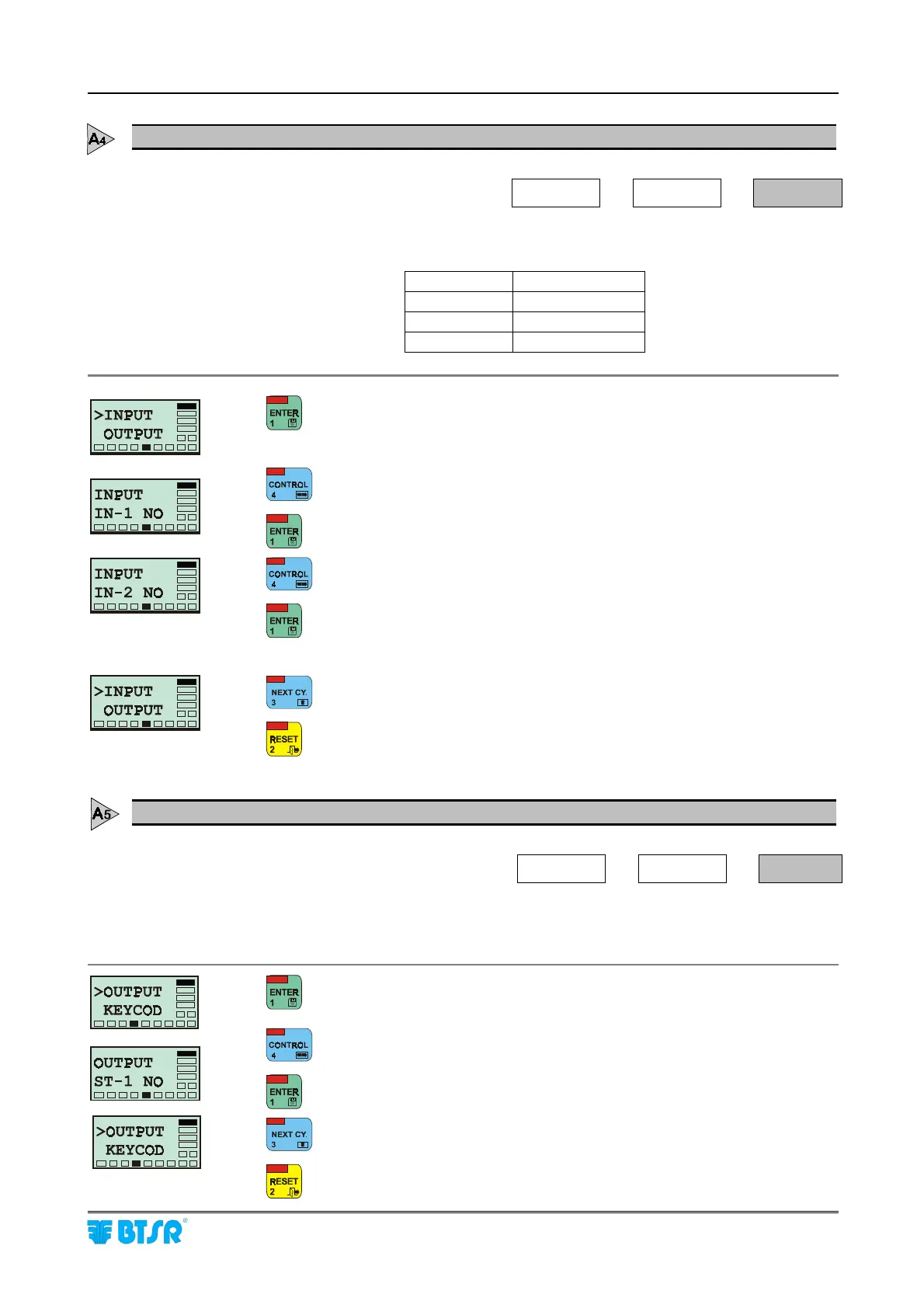

INPUT - Configuration of Input Signals
SETUP
$
$$
$
CONFIG
$
$$
$
INPUT
This function allows you to configure each of the 4 input signals (IN-1 ÷ IN-4) as
either normally closed (NC) or normally open (NO) contact.
IN-1 FAST EXT
IN-2 SLOW EXT
IN-3 RESET EXT
IN-4 LEARN EXT
to activate the function (parameter IN-1).
to select NC or viceversa.
to confirm the choice and move to parameter IN-2.
to select NC or viceversa.
to confirm the choice and move to parameter IN-3.
Repeat the same procedure for IN-3 and IN-4 inputs.
to move to the configuration of output signals.
to return to the CONFIG menu.
OUTPUT - Configuration of Output Signals
SETUP
$
$$
$
CONFIG
$
$$
$
OUTPUT
This function allows you to configure each of the 2 output signals (ST-1 ÷ ST-2) as
either normally closed (NC) or normally open (NO) contact.
to activate the function (parameter ST-1).
to select NC or viceversa.
to confirm the choice and move to parameter ST-2.
to move to the configuration of Keycodes.
to return to CONFIG menu.
