btsr SMART WARP - A1 - BOARDS - Number of Connected SM-DIN Modules (Boards); A2 - MAP - Sensors Distribution Map

Operation

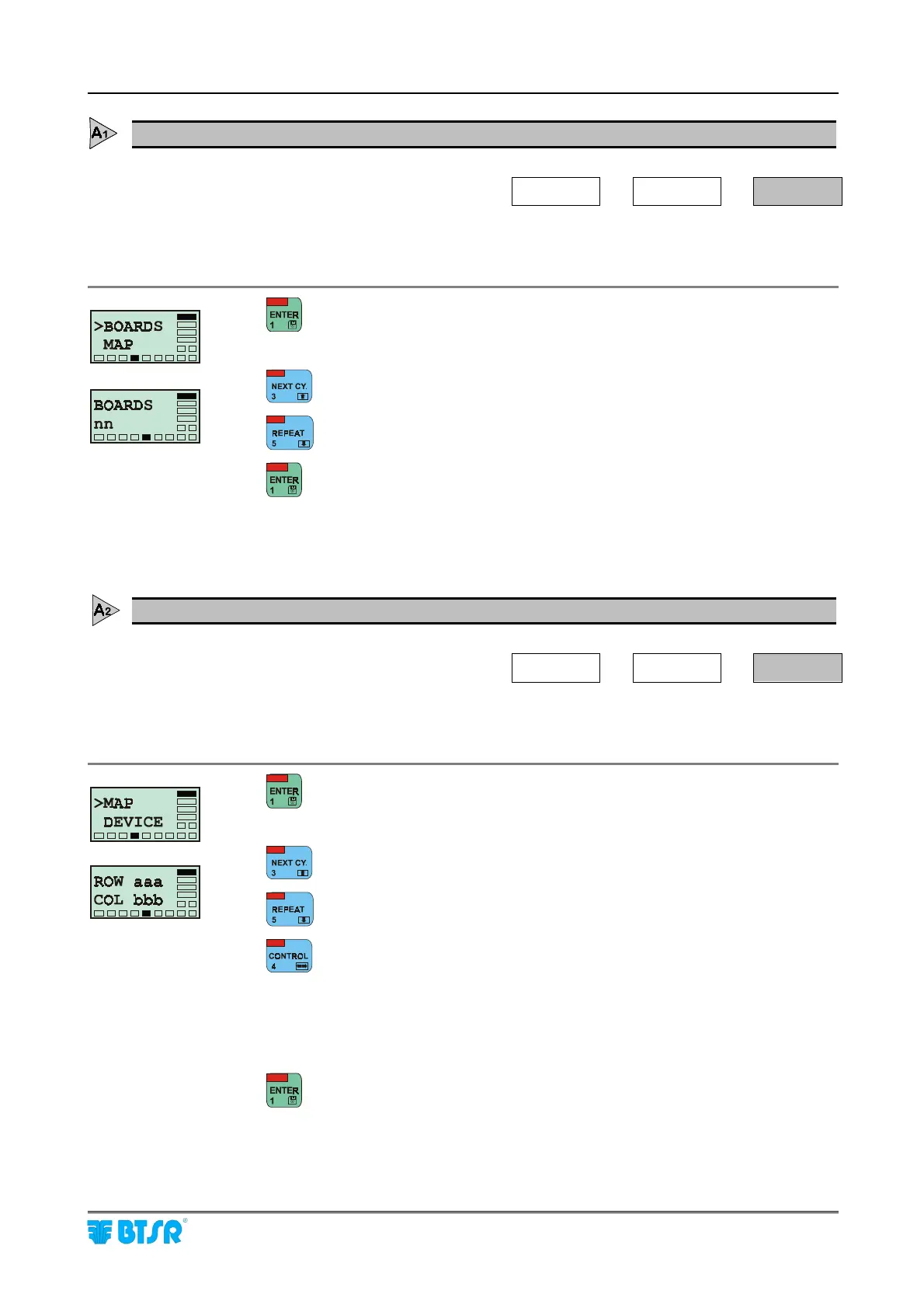

SMART WARP - 3.13 -
BOARDS - Number of Connected SM-DIN Modules (Boards)
SETUP
$
$$
$
CONFIG
$
$$
$
BOARDS
This function allows you to establish the number of SM-DIN modules used to
control the whole warping machine (1 to 20).
to activate the function.
to increase the number of modules used (nn).
to decrease the number of modules used (nn).
to confirm the set value (nn).
MAP - Sensors Distribution Map
SETUP
$
$$
$
CONFIG
$
$$
$
MAP
This function allows you to configure the map of sensors (rows/columns matrix)
for each of the 2 machines sections (sides) (A and B).
to activate the function.
to increase the value pointed by the cursor.
to decrease the value pointed by the cursor.
to move the cursor from the ROW field to the COL (column) field or
viceversa.
Allowed values:
ROW: (1 ÷ 16)*
COLUMN: (1 ÷ 250)*
to confirm the set value.
* The product of the two values (ROW x COL) must not be greater than 1000, as
it represents the number of sensors for each machine section (side A and side
B).
