Operation
SMART WARP - 3.5 -
Operating Signaling/Anomalies

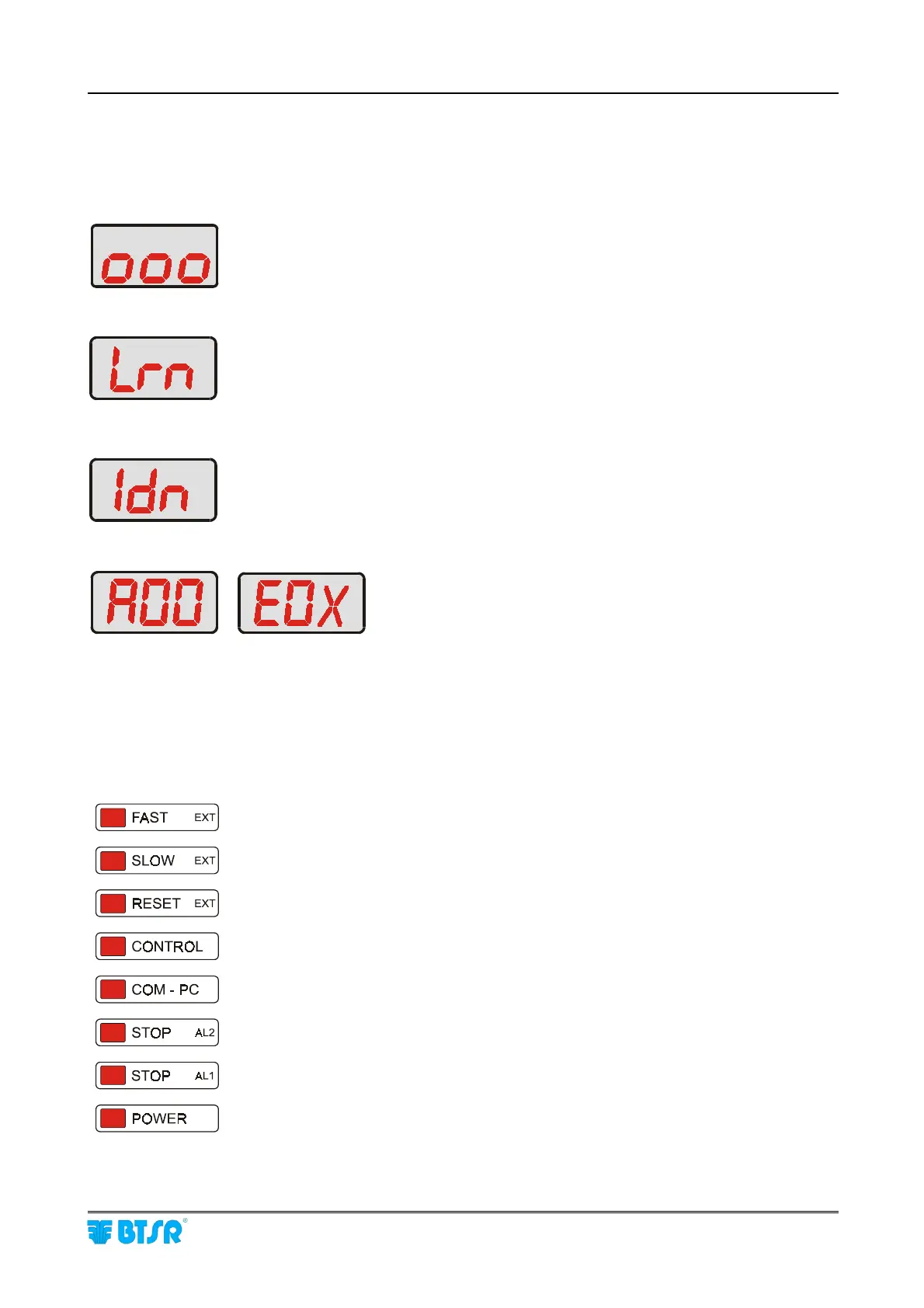

During the normal machine operation, the display of SM-DIN modules may show
the following operating/failure signalings.
Normal operation condition.
Learn in progress.
Sensor numbering (identification) in progress.
Fault/error signaling
Signaling LEDS
The lighting of respective red leds indicates:
FAST input inactive.
SLOW input inactive.
RESET input active.
SM-DIN module in CONTROL status.
Communication in progress between SM-DIN and SMART WARP.
STOP output (AL2) active (led flashing).
STOP output (AL1) active (led flashing).
SM-DIN module powered
