BTX ECM630 - Finalizing and Running Protocols

17
Publicaon 5423-020-REV 1.0 • www.btxonline.com

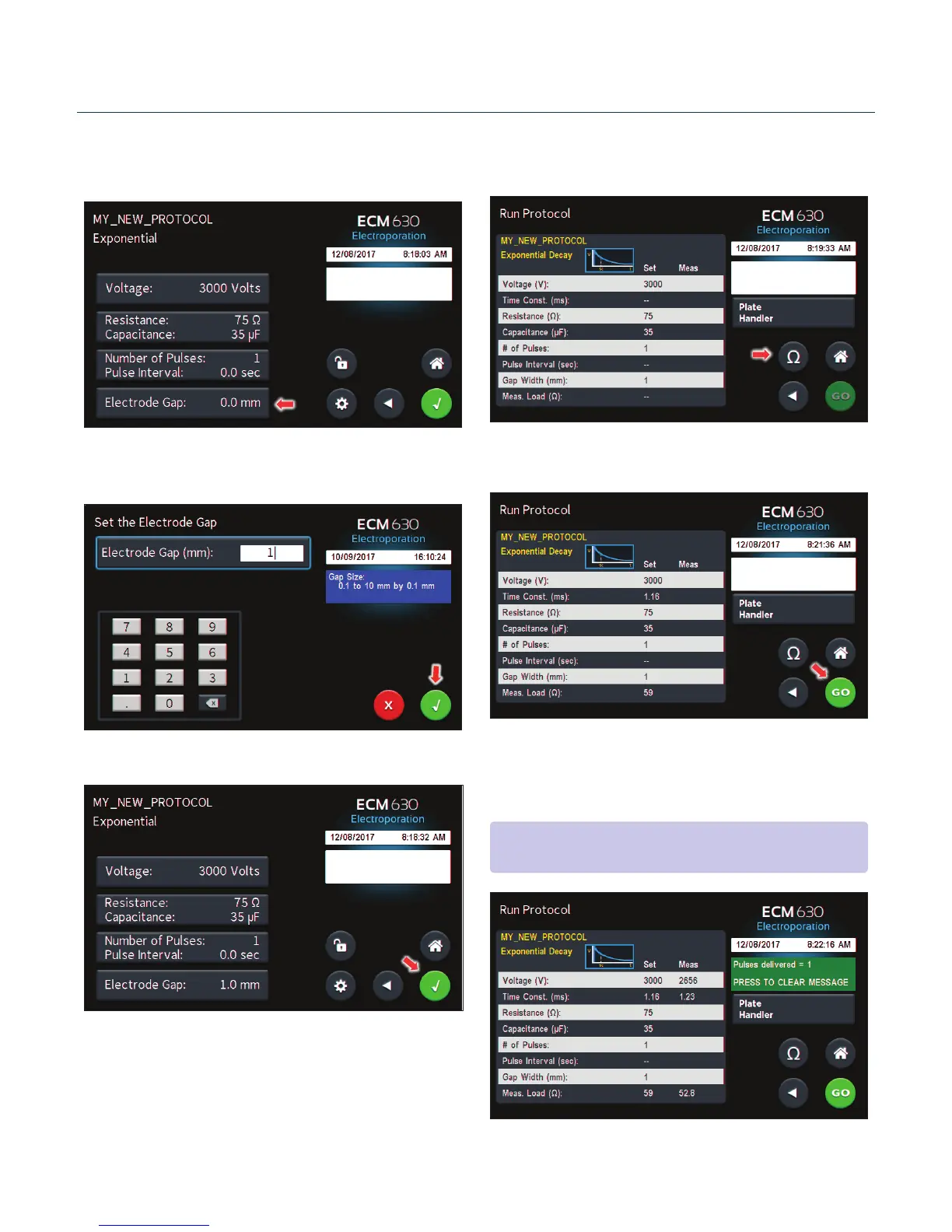

Use the numeric keypad to set the gap between electrodes.
Tap the Green Check icon to save.
Creang New Protocols (connued)
Tap the Electrode Gap icon.
View your protocol.
To run, tap the Omega icon.
32
Tap the Green Check icon to proceed to the run screen.
With load measurement OK, press the Green ‘Go’ icon to run
protocol.
Once protocol is complete, data regarding your pulse is displayed
and stored in the systems logs for future use.
You may connue pulsing, go back to set-up screen, or to the
home screen.
Performing Experiments
NOTE: See the Protocol Manager Soware secon for instrucons on
viewing and downloading log data.
