Review parameters.
Tap Plate Handler icon.
50
52
53
54
51
Using the numeric keypad icon, type the number of columns
being pulsed.
Tap the Green Check icon to save.
Review parameters.
Set the HT plate handler with the correct number of pre-pulse
resistance measurement and DC pulses.
Tap green Informaon Screen to clear message.
Tap the Green ‘Go’ icon to run protocol.
The Red ‘x’ icon can be used to stop the protocol at any me.

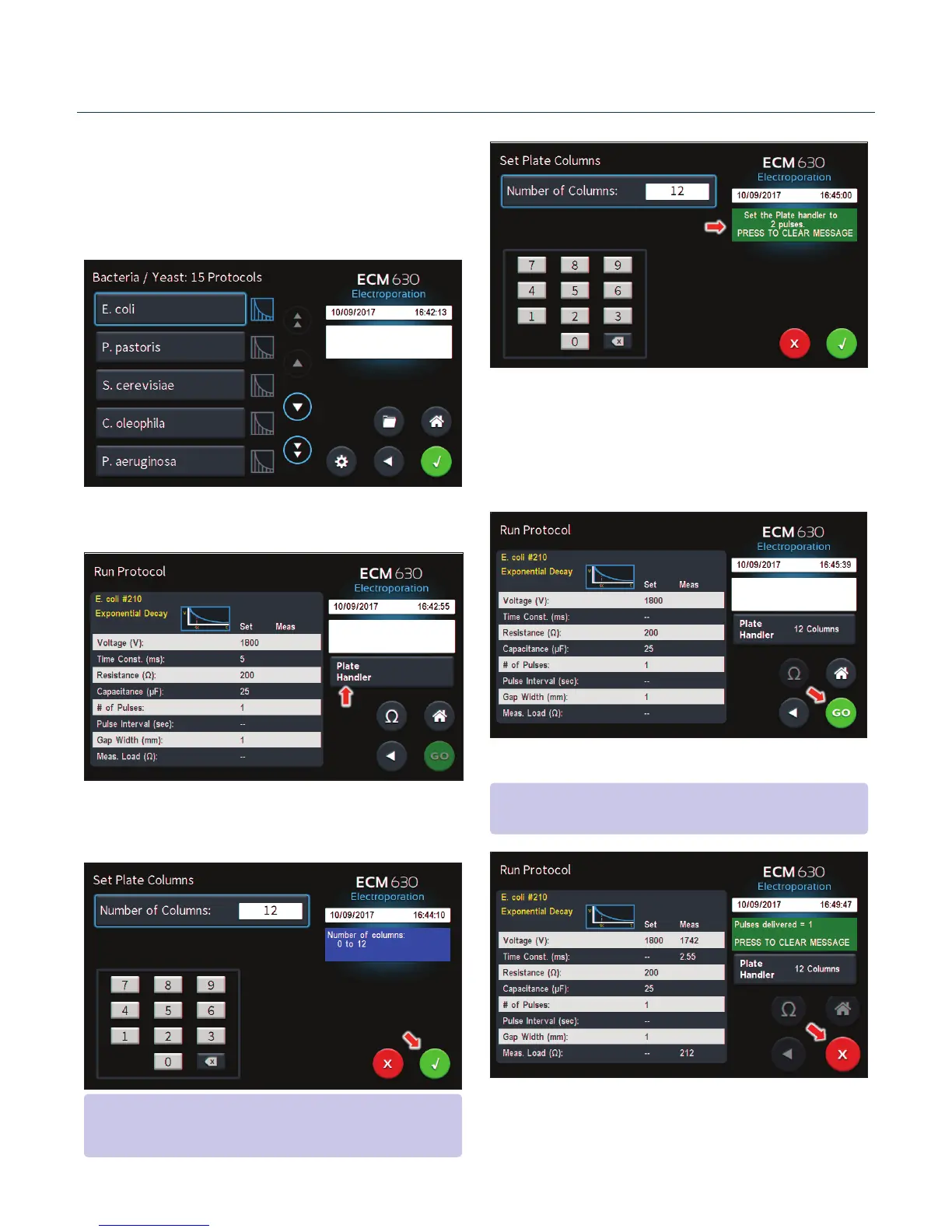

Using an HT Plate Handler
Plug the HT Plate Handler into the front ports of the ECM 630 unit.
Select desired protocol (preset protocol or user protocol)
Double tap desired cells.
49
Using Specialty Protocols
NOTE: Generator will display readings aer rst and last pulse of
each column.
NOTE: Note the message box. It will indicate how many pulses should
be set on the HT plate handler. This number will be a combinaon of
both pre-pulse resistance measurements and DC pulses.
