Operation with the user menu
Logamatic EMS – 6 720 801 386 2011/05
34
5
5.6.2 Viewing the current program
You can use display curr. prog. to view the currently set switching program in the form of a graph
(Æ Fig. 3).
• The graph always shows the switching program for one day or block of days.
• The current switch point will flash (circle and cross alternately). Below the graph, you can see the
time for that switching point and the temperature that applies from that time onwards.
• Other switch points are marked with a cross.

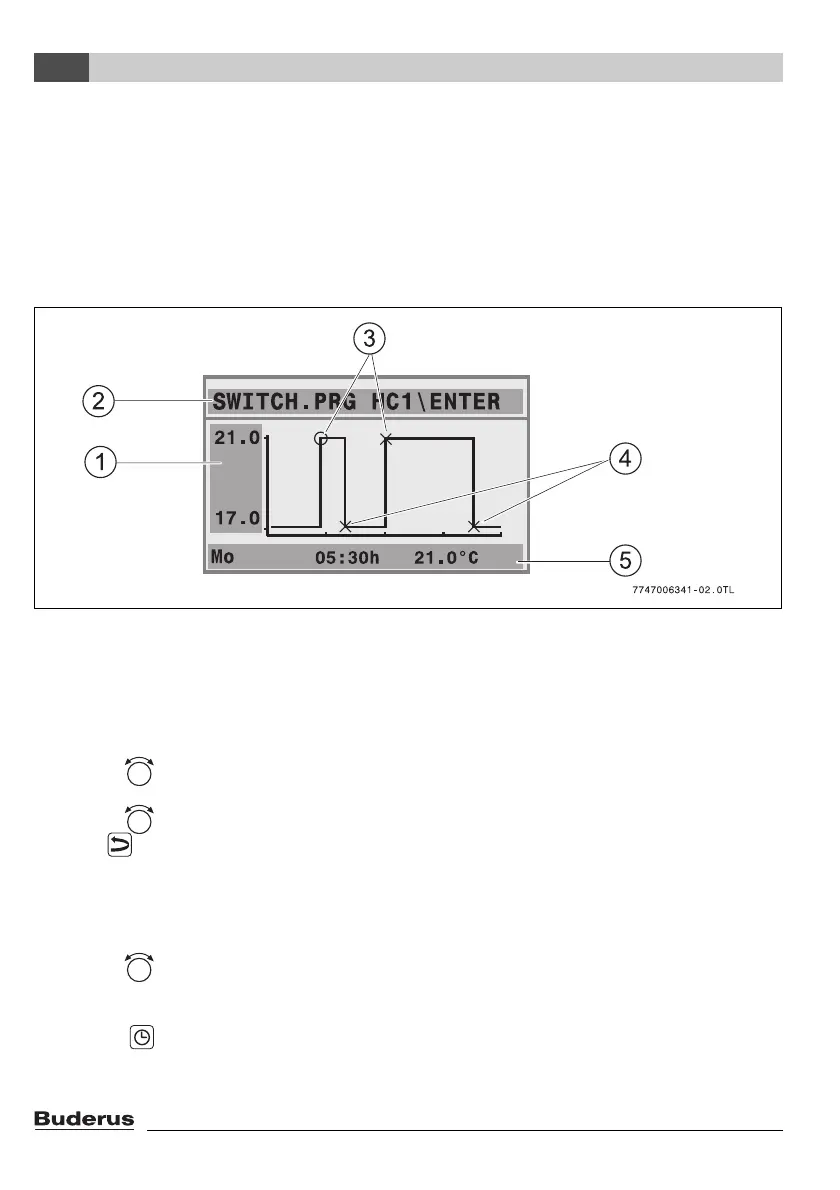

Fig. 3 Example from the “morning” switching program
1 Day and night temperature
2 Orientation line
3 Switch-on points (switchover to day mode)
4 Switch-off points (switchover to night mode)
5 Line showing status and settings for the selected switching point
1. Turn the rotary selector to the right.
The next switching point is displayed.
2. Turn the rotary selector further to display more days.
3. Press to return to the list of options.
5.6.3 Changing the switching point
Use change switch point to change the times in a switching program at which the system
switches over to a different temperature level.
1. Turn the rotary selector to select another switching point. Turn it further to go to a different
day of the week.
The selected switching point starts flashing.
2. Hold the button pressed down and turn the rotary selector to change the time for this
switching point.
