Installation and maintenance instructions Logano GE315 • Issue 02/2006
2Installation
2.6 Installation of fittings and burner
door (only for unassembled
boilers)
In contrast to unassembled boilers, the burner door
and the flue gas collector are already fitted in the
factory, when the boiler is supplied as a pre-
assembled block.
2.6.1 Positioning the flue gas collector
Use sealing cord (Fig. 24, Item 2) as a gasket between
the boiler and the flue gas collector (Fig. 24, Item 1).
z Clean the groove first before packing the sealing
cords as a gasket between the boiler and flue gas
collector.
z Coat the packing groove with adhesive (primer 181).
z Firmly press the sealing cord into the groove.
You must insert the packing cord so, that it lies in the
lateral area of the groove
(Fig. 24, Item 3).
z Position the flue gas collector onto both bolts at the
rear section
(Fig. 24, Item 4 & 5) and secure with
washers and nuts.
2.6.2 Cleaning cover at the rear section
Fig. 25 shows the rear sections equipped with cleaning
covers fitted to the flue gas collector (Fig. 25, Item 1 & 2)
as well as the cleaning covers on the rear section
(Fig. 25, Item 3 & 4).
All cleaning covers are fitted in the factory.

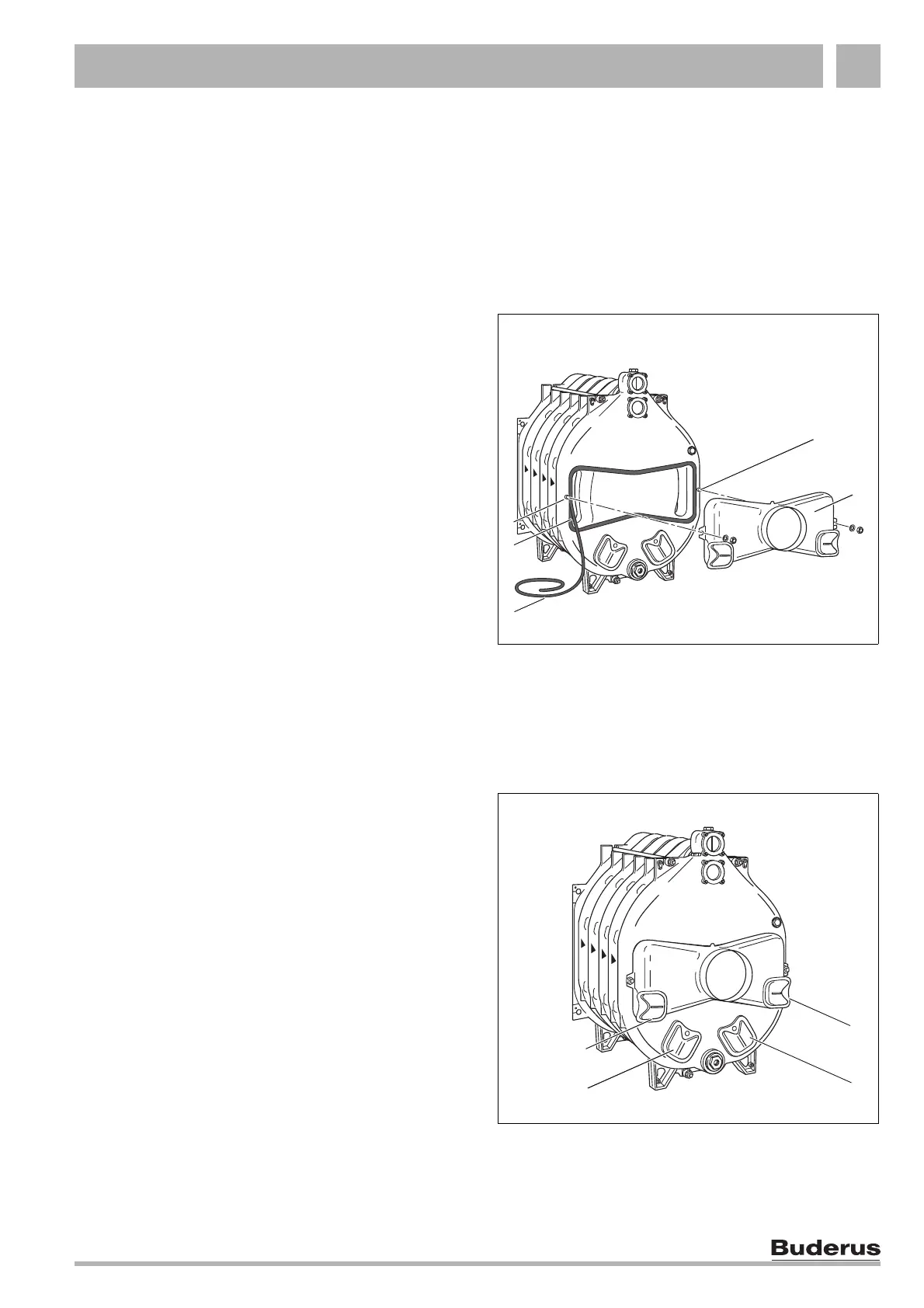

Fig. 24 Flue gas collector installation
Fig. 25 Rear section with mounted fittings
2
1
4
3
5
1
2
3
4
