9
We reserve the right to make any changes due to technical modifications.
Installation and maintenance instructions Logano GE315 • Issue 02/2006
2Installation
2.3 Positioning
2.3.1 Plinth
Please maintain the recommended clearance from walls
when positioning the boiler to enable easy access for
installation and maintenance
(Fig. 4).
To assist boiler room tidiness the boiler should be placed
on a plinth 5
– 10 cm high (Fig. 3, Item 1). The plinth
must be perfectly flat and level. The front edge of the
boiler should be flush with the edge of the plinth.
You can cast a concrete plinth if the optional boiler plinth
is not used. When casting the plinth, you must
incorporate a steel angle with the dimensions
100
x 50 x 8 mm or a steel strip with the dimensions
100
x 5 mm (see Fig. 3 and the following table).
Fig. 1 Dimensions of plinth and length of angular or flat steel
section
NOTE!
As an option we can offer a boiler plinth
designed to reduce transmitted noise.
Number of
segments
L
1
(plinth)
[mm]
L
2
(length of
steel section)
[mm]
5 970 730
6 1130 890
7 1290 1050
8 1450 1210
9 1610 1370

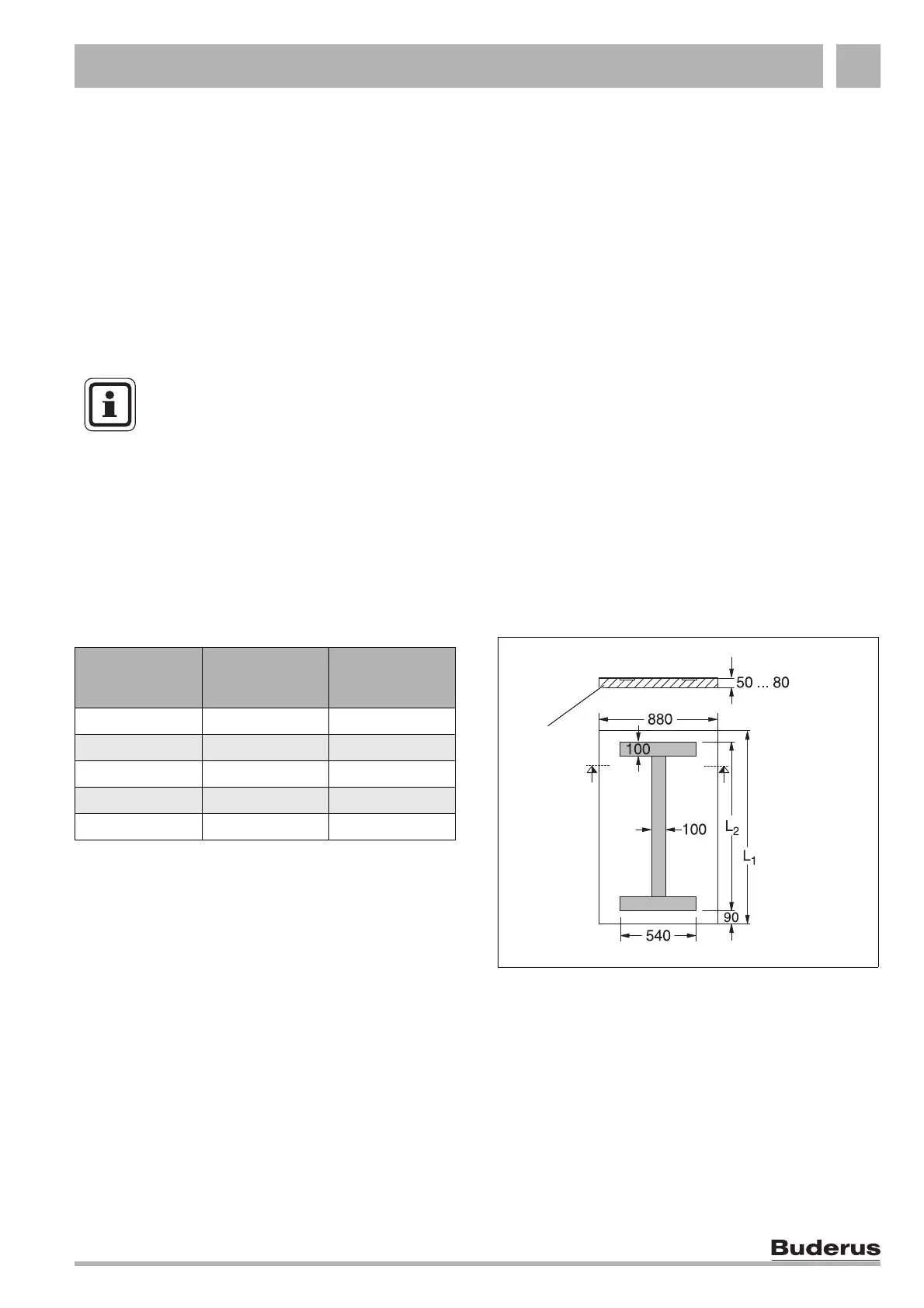

Fig. 3 Plinth dimensions [mm]
1
