2 Installation
8 Installation and maintenance instructions Logano GE315 • Issue 02/2006
We reserve the right to make any changes due to technical modifications.
2.2 Tools and additional materials as
required for assembly
The following tools and additional materials are
required for the boiler assembly (the listed items
must be provided by the installer):
– Boiler tensioning tool 2.2 (Fig. 1) or 2.3 (Fig. 2)
– Installation kit (Option)
– Steel hammer and wooden or rubber mallet
– Half-round bastard file
– Screwdriver (Philips and flat head)
– Flat chisel
– Spanner SW 19, 36, 13, 19, 18, 24, 27 and Allan key
SW19
– Support wedge, flat iron
– Cleaning rags and cloth
– Fine emery cloth
– Wire brush
– 3-in-1 Oil
– Solvent (petrol or solution)
– Spirit level, ruler, chalk, straight edge
– Blanking flange with vent facility (for pressure test)
2.2.1 Boiler compression tool size 2.2
2.2.2 Boiler compression tool 2.3
(complete
in toolbox)
Segments
Compression
tool per boiler
hub
Extension
pieces per
boiler hub
Length
(total)
[mm]
5 – 7 1 0 1560
8 – 9
1
(1)
1
(0)
2160
(2160)
Segments
Compression
tool per boiler
hub
Extension
pieces per
boiler hub
Length
(total)
[mm]
5 – 9 1 3 3080
NOTE!
For the correct arrangement of flanges for
the compression step, see
Page 14.

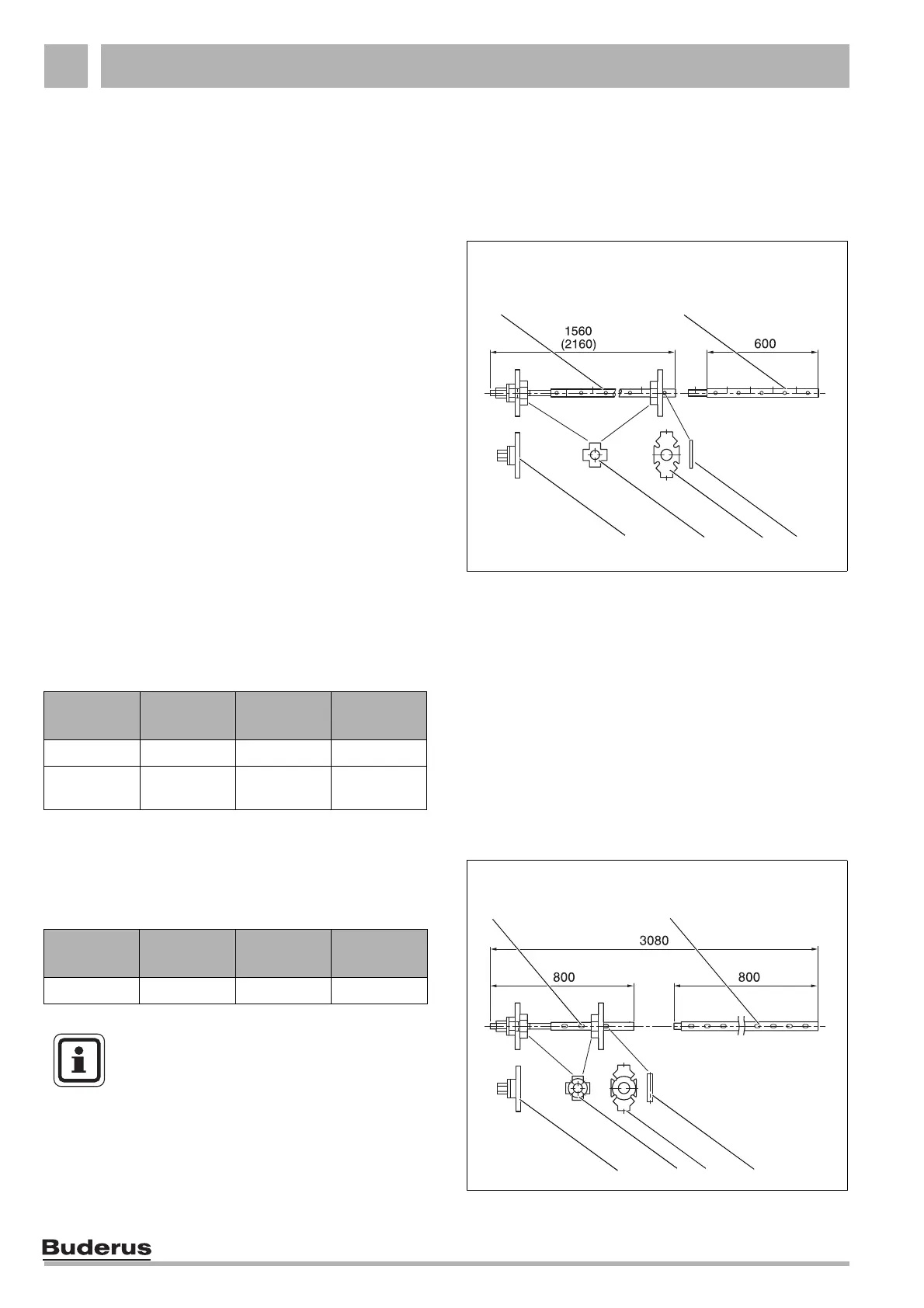

Fig. 1 Boiler compression tool size 2.2
Legend for (Fig. 1) and (Fig. 2):
Item 1: The mating flange
Item 2: Additional flange
Item 3: Compression unit
(compression flange and clamping nut)
Item 4: Pull rod
Item 5: Extension
Item 6: Cylindrical pin (size 2.2)
Item 7: Wedge (size 2.3)
Fig. 2 Boiler compression tool size 2.3
1
23
45
6
7123
45
