2 Burner installation

30 Installation and maintenance instructions Logano GE315 • Issue 02/2006

We reserve the right to make any changes due to technical modifications.

z Hook the burner door cover into the front wall

recesses

(Fig. 42, Item 1).

z Place the data plate (Fig. 42, Item 2) according to

boiler location on the r.h. or l.h. side wall.

2.8 Control unit

2.8.1 Controller installation

Fig. 43 shows the control unit and the front cover as

viewed from the rear.

z Loosen both screws (Fig. 43, Item 1) securing the

terminal cover. Remove the terminal cover by pulling

it upwards.

z Mount the control unit. Insert the control unit at the

front of the boiler with the locating tabs

(Fig. 43,

Item 4) into the oval apertures of the front boiler hood

(Fig. 43, Item 5). Pull the control unit forward and

then pivot it back. Ensure that the resilient hooks

(Fig. 43, Item 2) engage at the rear into the

rectangular apertures of the front boiler hood (Fig. 43,

Item 3).

z Secure the control unit base on the r.h. and l.h. side

of the cable way

(Fig. 43, Item 6) in the front boiler

hood with two self-tapping screws (Fig. 43, Item 7).

NOTE!

For boilers delivered as pre-assembled

blocks you will find the data plate together

with the installation and maintenance

instructions inside the combustion

chamber; if you receive loose components

you will find it inside a clear bag on the

burner door.

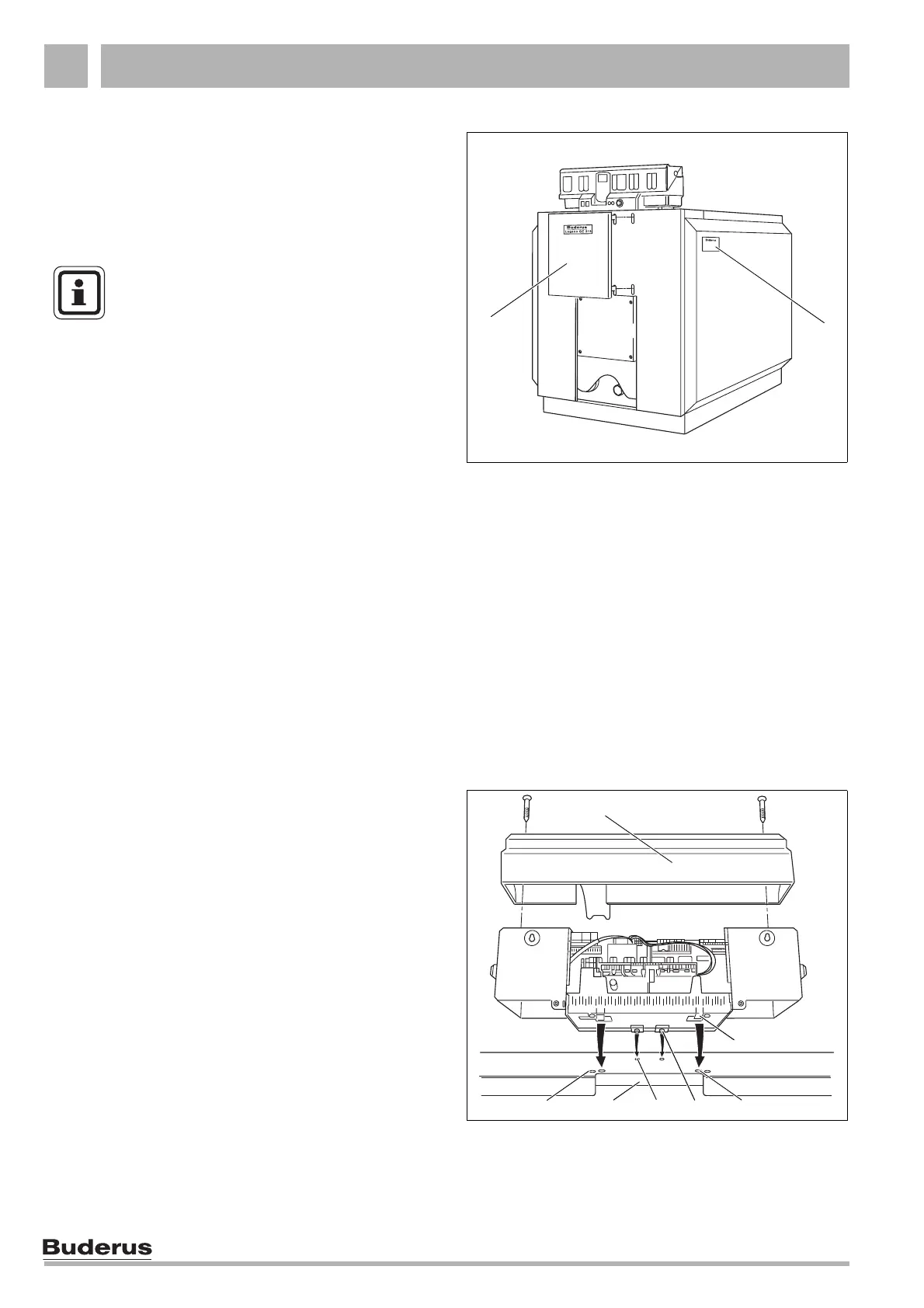

Fig. 42 Hooking on the burner door cover

Fig. 43 Control unit installation

45637
