2 Burner installation
24 Installation and maintenance instructions Logano GE315 • Issue 02/2006
We reserve the right to make any changes due to technical modifications.
2.6.6 Fit the flue gas pipe sealing collar
(optional
accessory)
z Insert the flue gas pipe until it contacts the flue gas
collector coupling.
z Place the flue gas pipe sealing collar on the top so
that it overlaps the flue gas pipe and the coupling.
z Place the jubilee clips (Fig. 29, Item 4) over the flue
gas pipe sealing collar. One of the jubilee clips must
clamp on the coupling of the flue gas collector and the
other onto the flue gas pipe.
z Tighten the jubilee clips.
After the jubilee clips have been tightened the flue gas
pipe sealing collar must fit evenly and closely.
2.6.7 Fit the flue gas temperature sensor (Option)
z Weld the coupling (Fig. 29, Item 3) at a distance of
2 x flue gas pipe diameter (A) – min. 720 mm – from
the flue gas collector into the flue gas pipe.
z Install the flue gas temperature sensor (Fig. 29,
Item 2) in accordance with separate installation
instructions.
NOTE!
We recommend you use a flue gas pipe
sealing collar
(Fig. 29, Item 1).
NOTE!
Re-tighten the jubilee clips a short time
after commissioning.

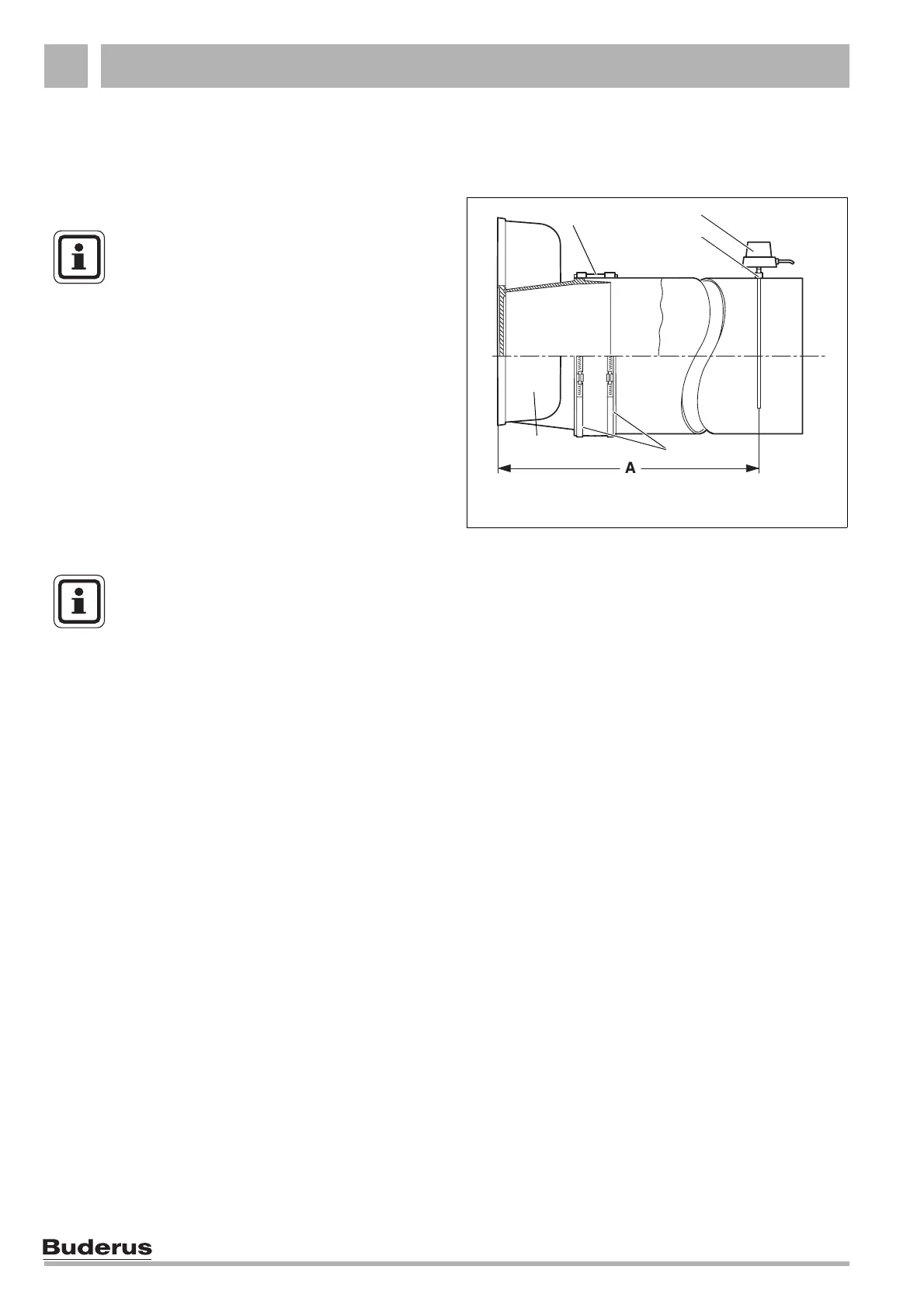

Fig. 29 Flue gas pipe installation
Item 1: Flue pipe sealing collar
Item 2: Flue gas temperature sensor
Item 3: Coupling
Item 4: Jubilee clip
Item 5: Flue gas collector
1
2
3
4
min. 720 mm
5
