Installation and maintenance instructions Logano GE315 • Issue 02/2006
2Burner installation
2.6.5 Burner installation
z Close the burner door and secure with 4 screws
(M16
x 140) (Fig. 26, Item 5). Tighten the screws
alternately in a cross pattern.
z Cut using oxy-acetylene or drill the burner plate
(Fig. 28, Item 1) on site according to the required
burner pipe diameter (max. diameter 270 mm). Drill
the burner mounting holes according to the hole
pattern of the burner connection flange.
z Secure the burner plate on the burner door with
screws provided (seal with sealing cords of 10 mm
diameter).
z Screw the burner to the burner plate.
z Cut out insulating rings according to the burner pipe
diameter
(Fig. 28, Item 2).
z Fill the remaining gap between the thermal insulation
on the burner door and the burner blast tube
(Fig. 28,
Item 4) with suitably adapted insulating rings
(Fig. 28, Item 3).
z Connect the breather tube on the sight glass with the
burner to keep the glass free from condensation.
z Fit burner according to the manufactures instructions.
NOTE!
As option you can obtain pre-drilled burner
plates from Buderus (accessory).

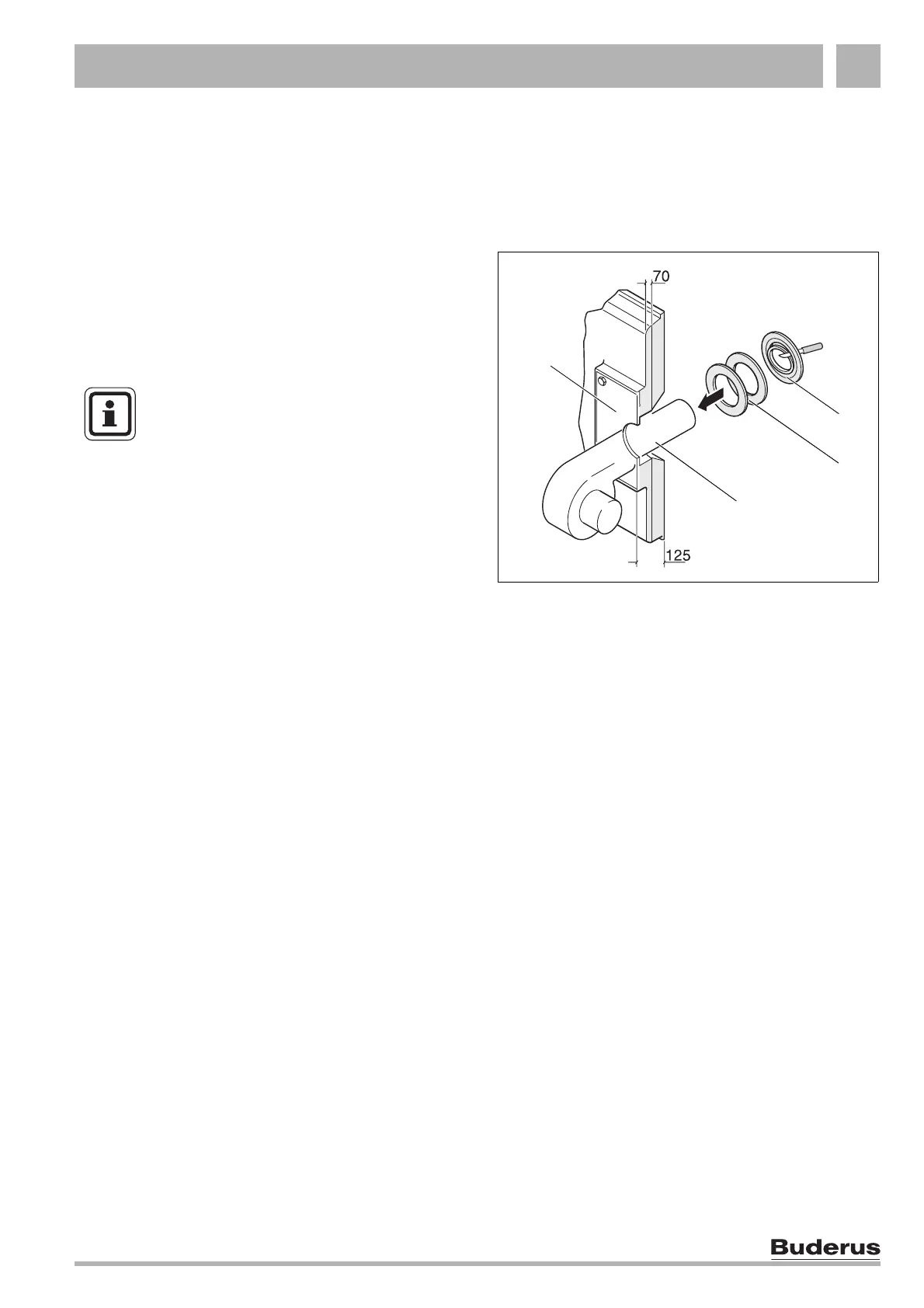

Fig. 28 Burner installation (dimensions in mm)
1
2
3
4
