25
We reserve the right to make any changes due to technical modifications.
Installation and maintenance instructions Logano GE315 • Issue 02/2006
2Burner installation

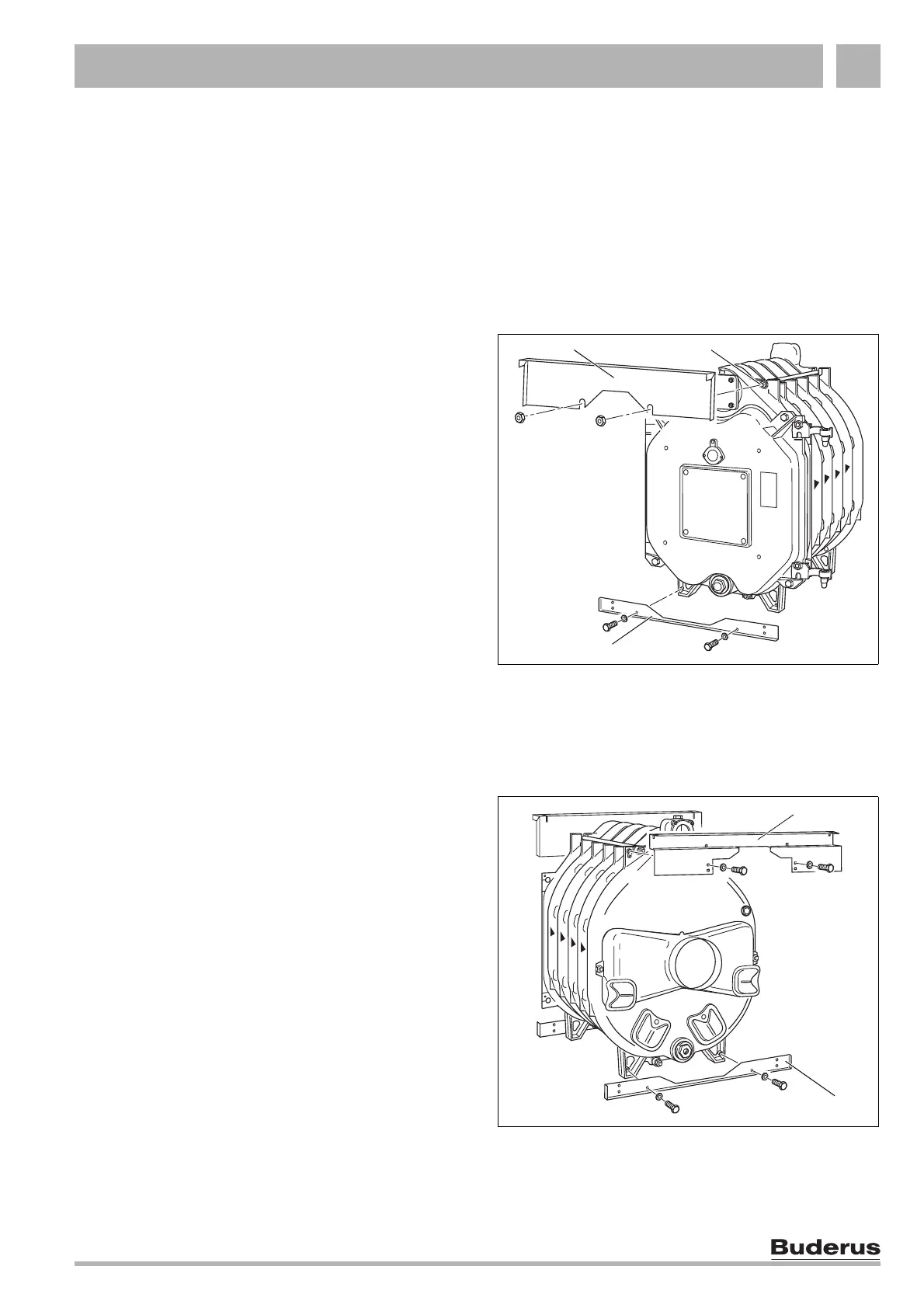

Fig. 30 Installation of the front support brackets
Fig. 31 Installation of the rear support brackets
21
3
1
2
2
1
2.7 Boiler casing
This section describes how to fit thermal insulation and
casing components.
2.7.1 Support brackets
The edge of the front support brackets must point to the
front.
z At the boiler front screw one further nut onto each tie-
bars
(Fig. 30, Item 2).
z Insert the cross support bracket at the front on top of
the boiler
(Fig. 30, Item 1) between the first and the
second nut of the tie bars and secure on the cast lugs.
z Tighten the outer nuts.
z Secure the cross support bracket at the lower front
(Fig. 30, Item 3) with two screws on the boiler section
feet of the front section.
z Secure the upper rear support bracket (Fig. 31,
Item 1) on the cast lugs and with screws (M 8 x 15)
on the rear section.
The edge of the front upper support bracket must
point to the front.
z Secure the lower support bracket (Fig. 31, Item 2)
with two screws (M 8 x 15) to the feet of the rear
section.
The edge of the lower support bracket must point to
the rear.
